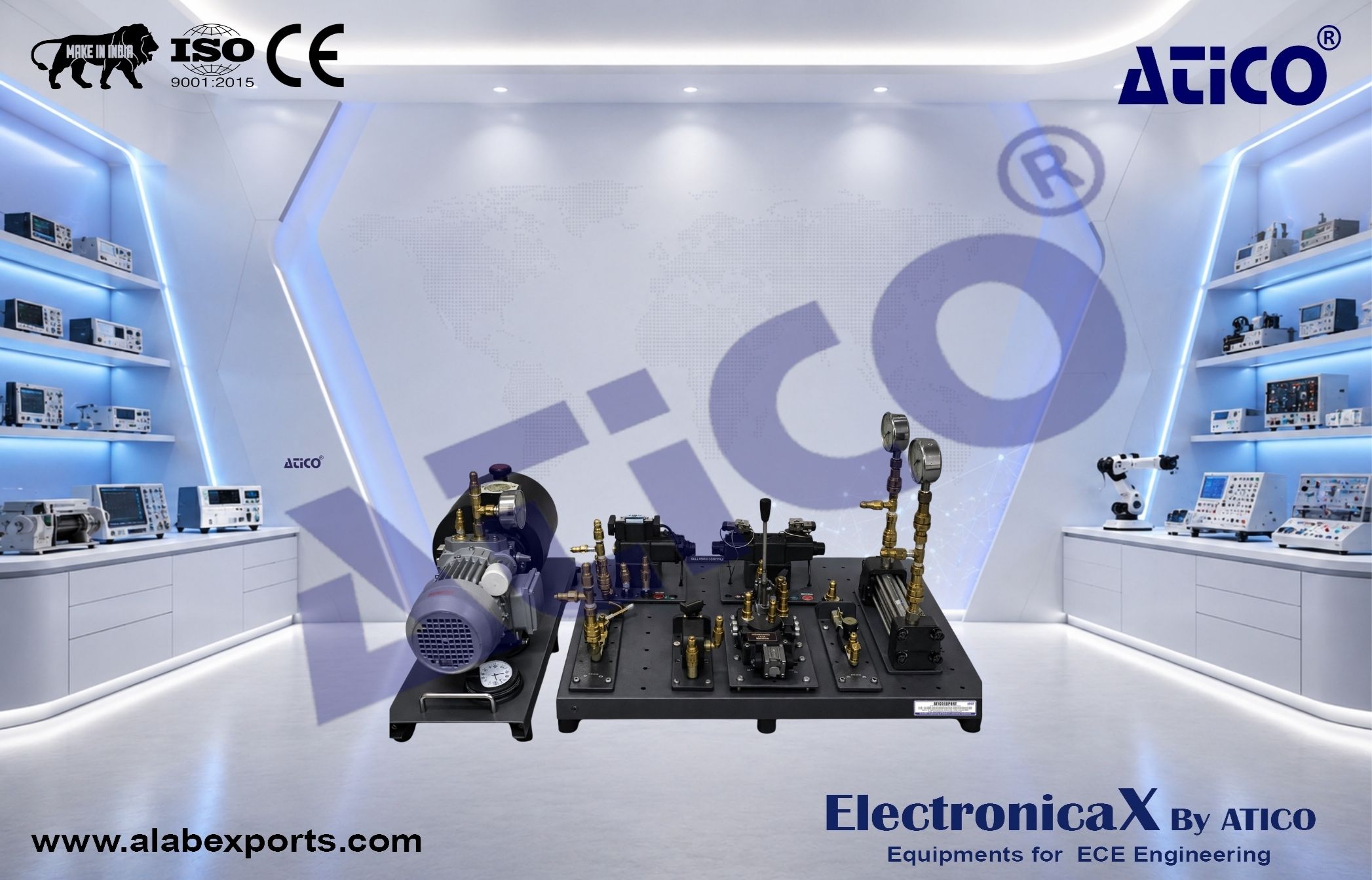

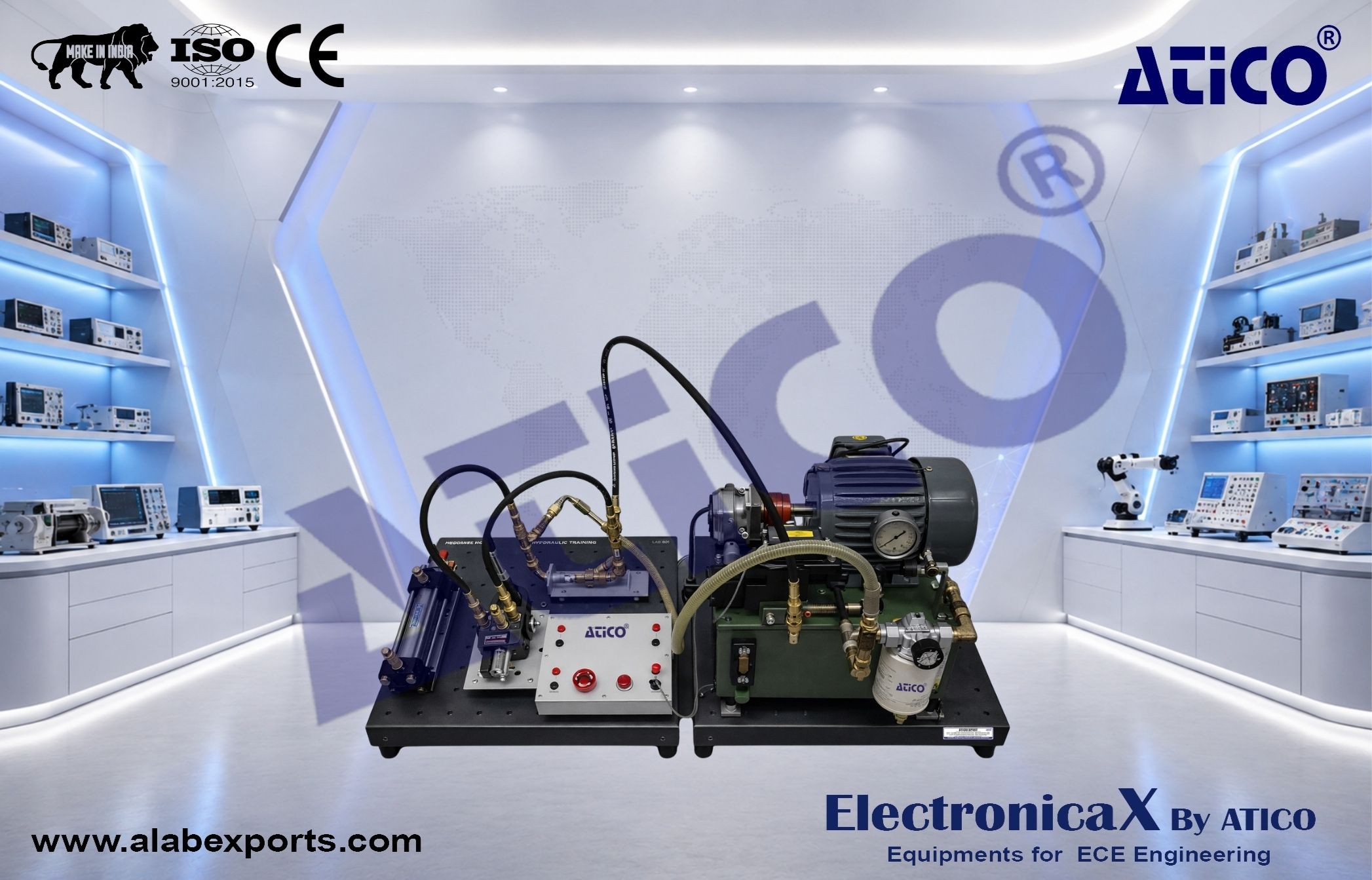

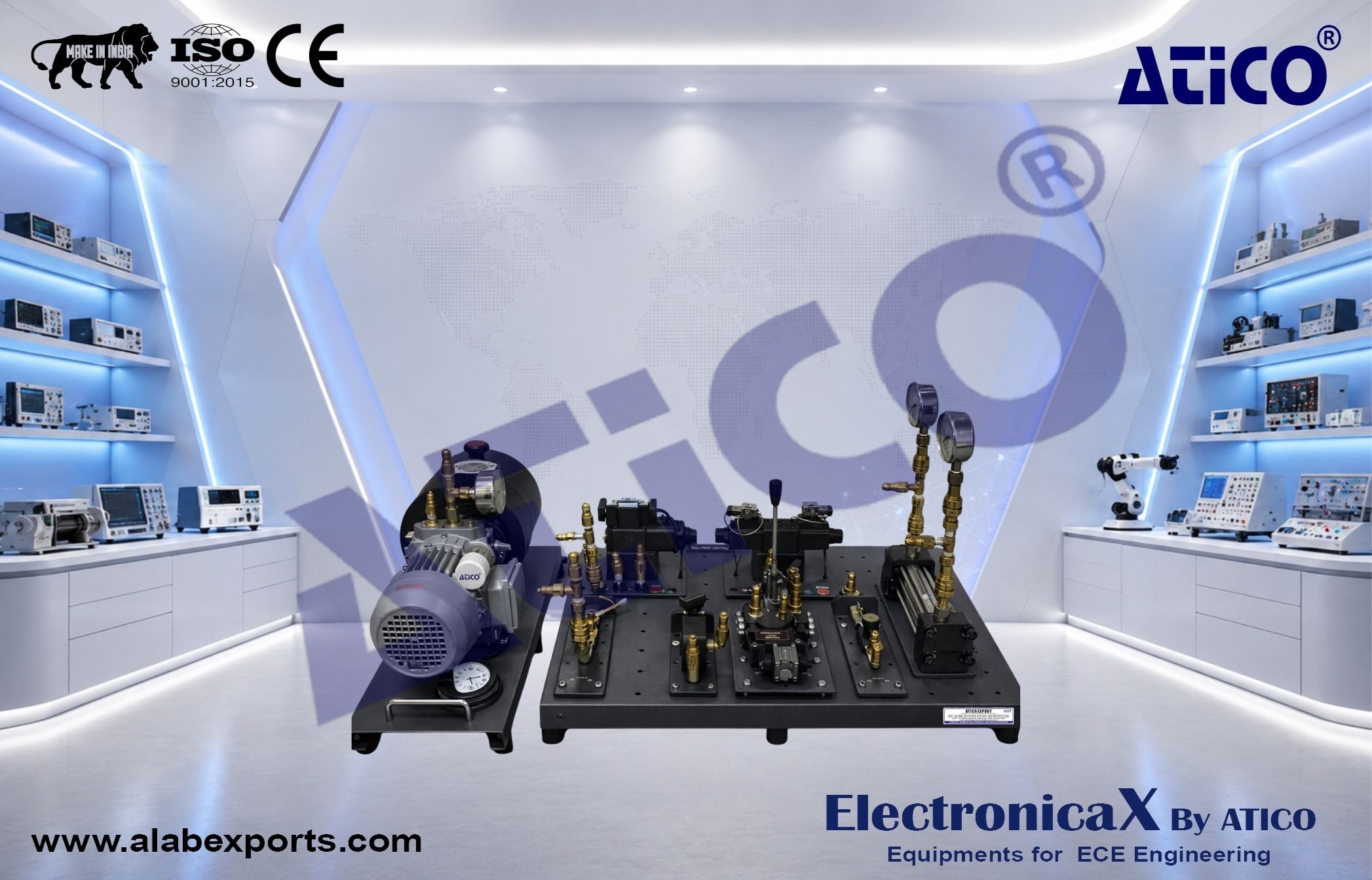

Basic Hydraulics Trainer

• Basic Hydraulics Trainers consists of industrial grade hydraulics components and parts commonly used in industrial field
• Classified into basic level training experiments
• Customizable in modular format for logical analysis of electrical circuits
• Design and wiring in hydraulics and electro-hydraulics training experiments
• Includes electric control for hydraulics sequence control
• Uses a standard plug-in profile panel for common use of training set
• Each part can be attached and detached horizontally or vertically on the profile panel without tools

Component List :

1. Plug Board Experiments Panel (600mm x 700mm)
Complete With:

• Built-in Pressure Manifold Module
• Built-in Tank Manifold Module

2. Power Pack Unit
Complete With:

• 1HP Single Phase Electric Hydraulic Motor Module
• Gear Pump
• 5 Liters Reservoir Tank
• Hydraulic Oil

3. Pressure Relief Valve

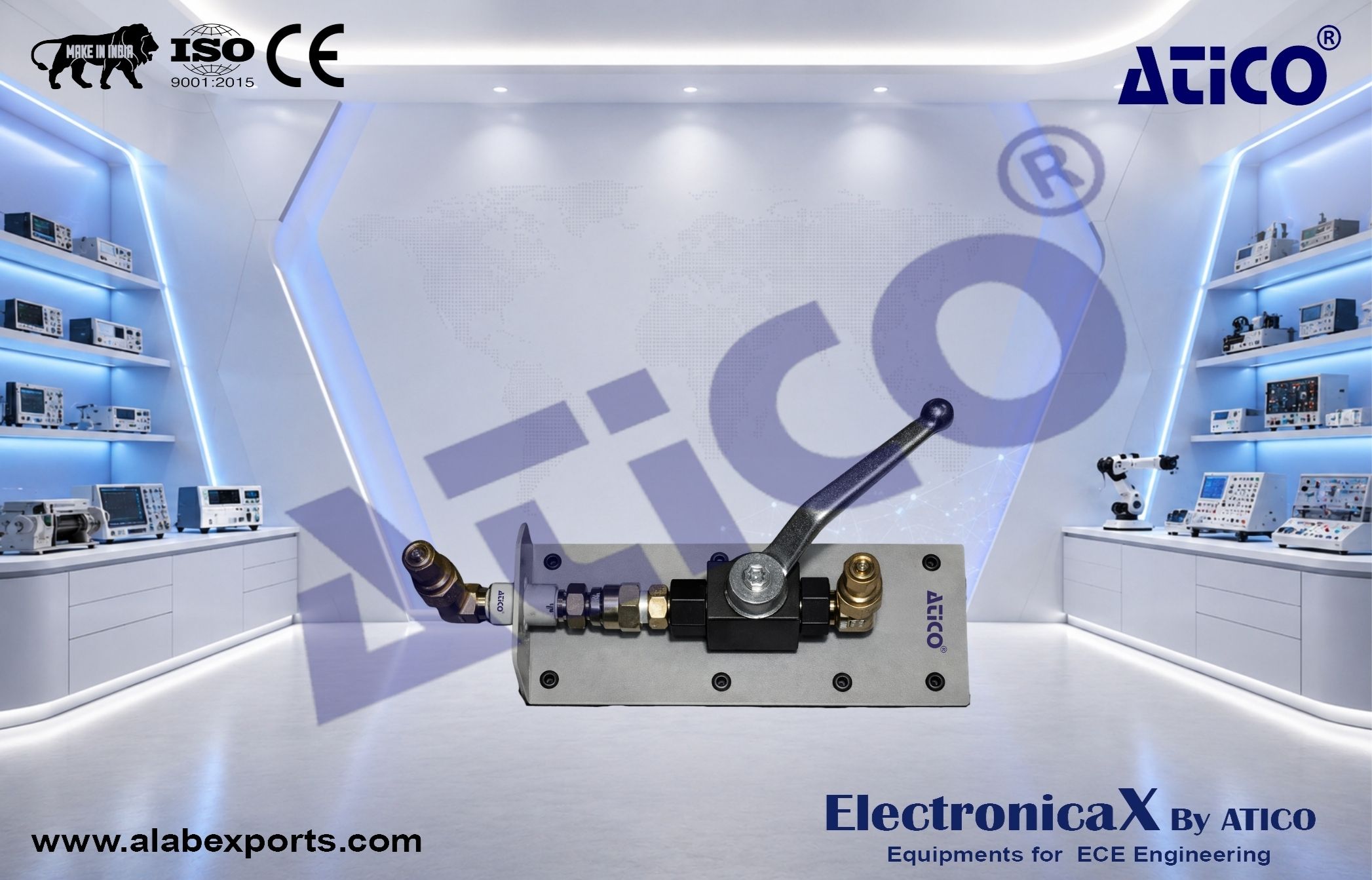

4. Ball Valve Module

5. Flow Control Valve Module

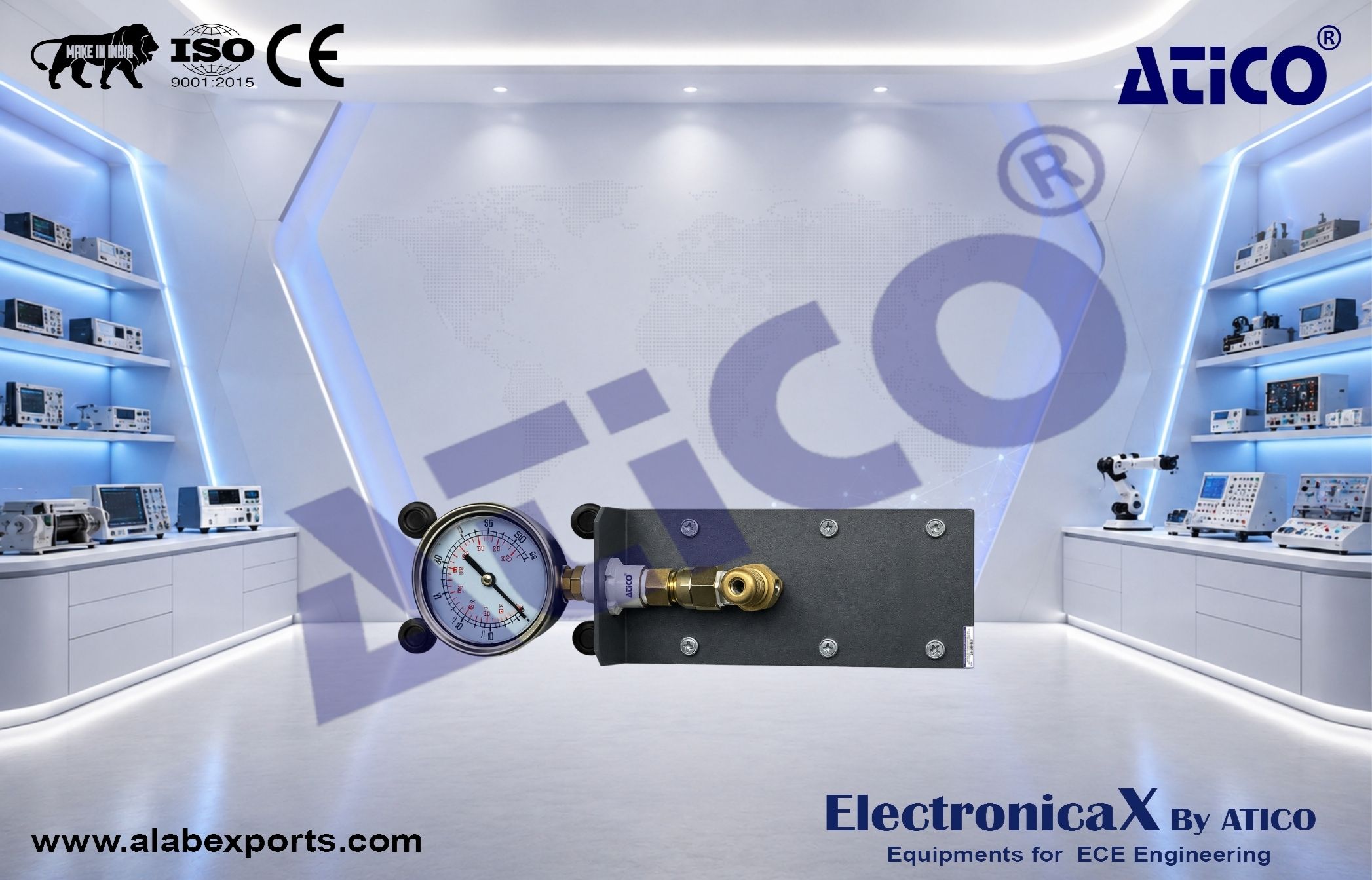

6. Pressure Gauge (0 ~ 150Bar / 0 ~ 3500psi)

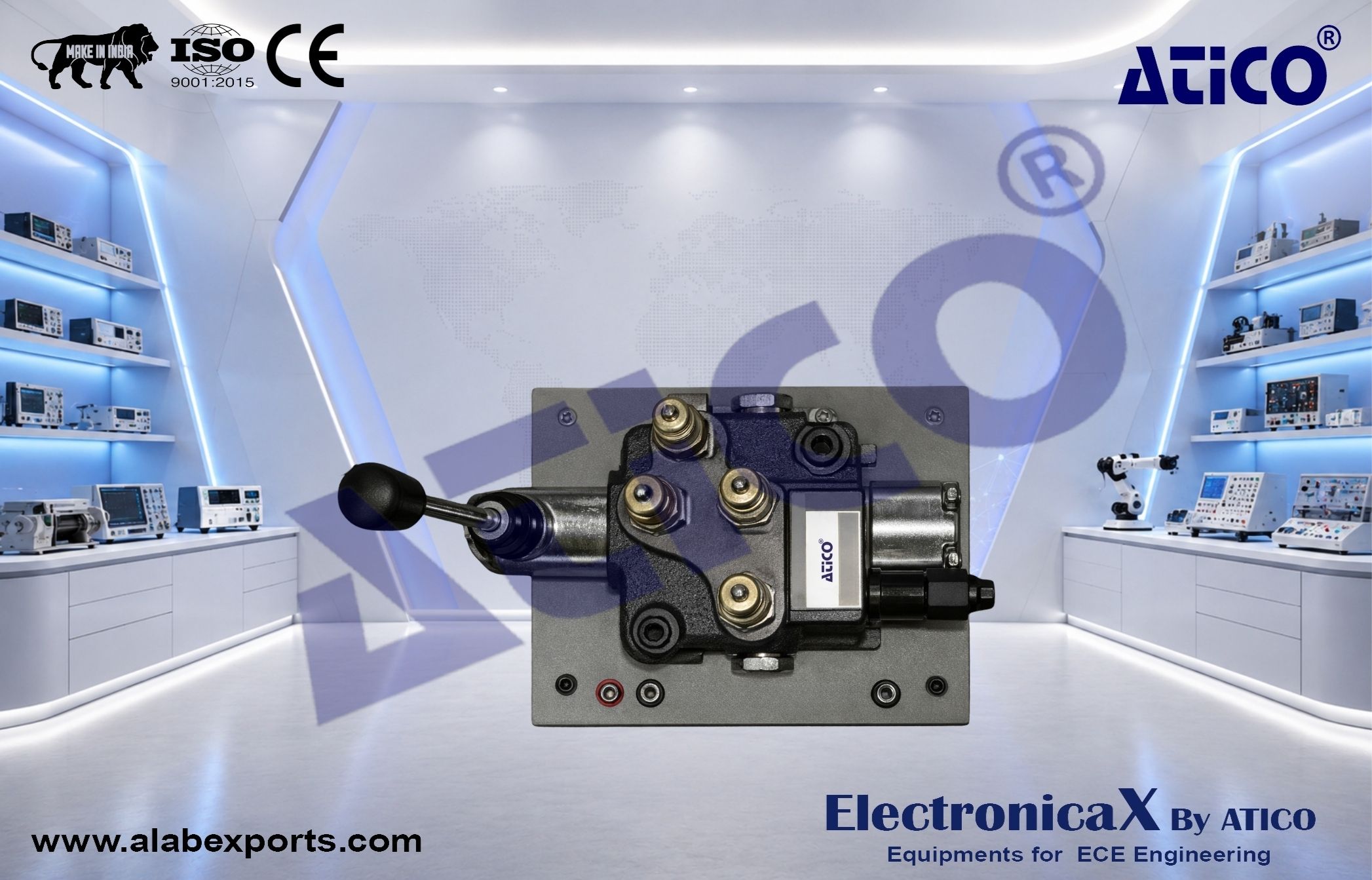

7. 4/3 Way Manual Control Valve C/W Built-In Relief Valve Module

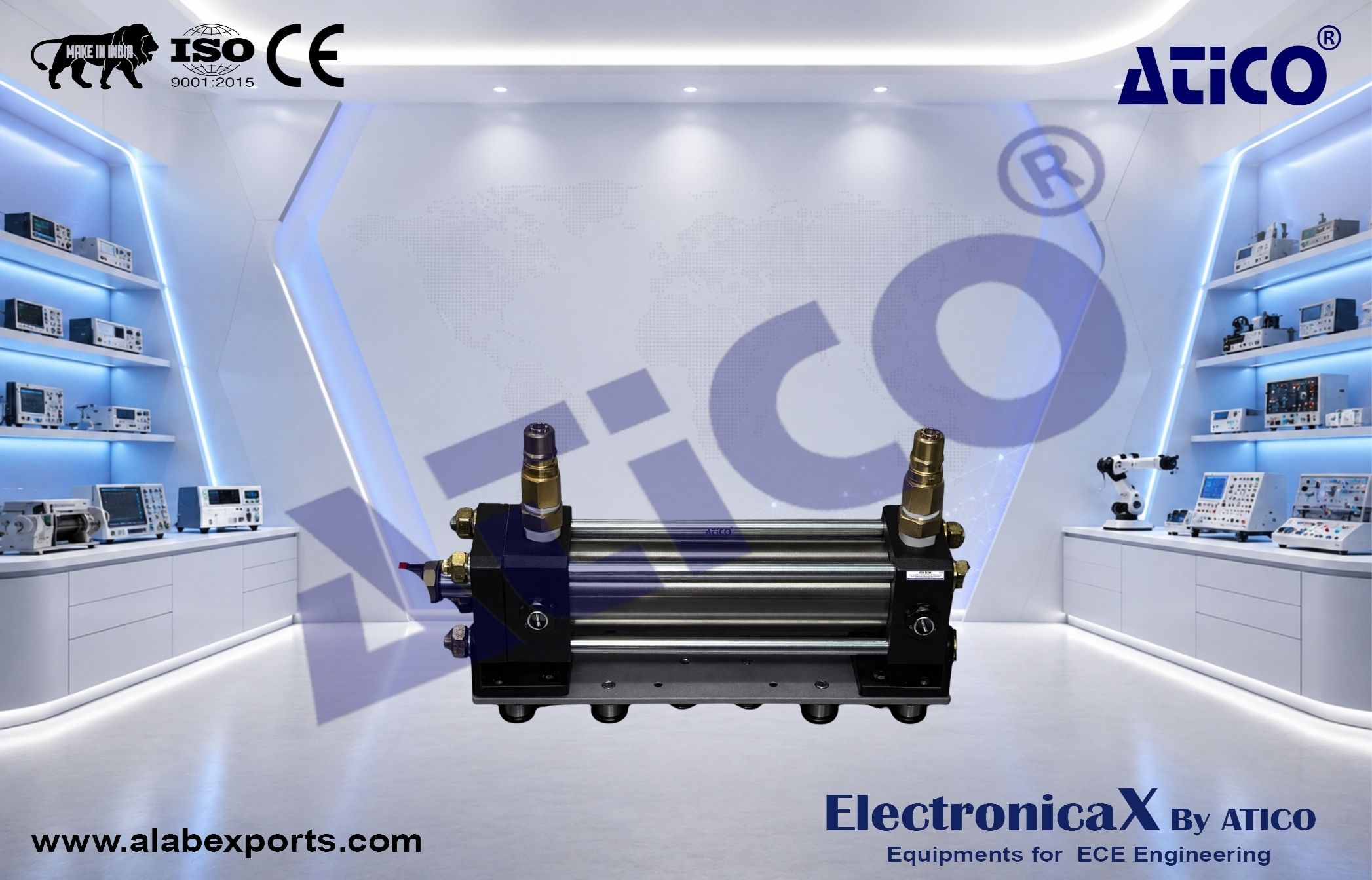

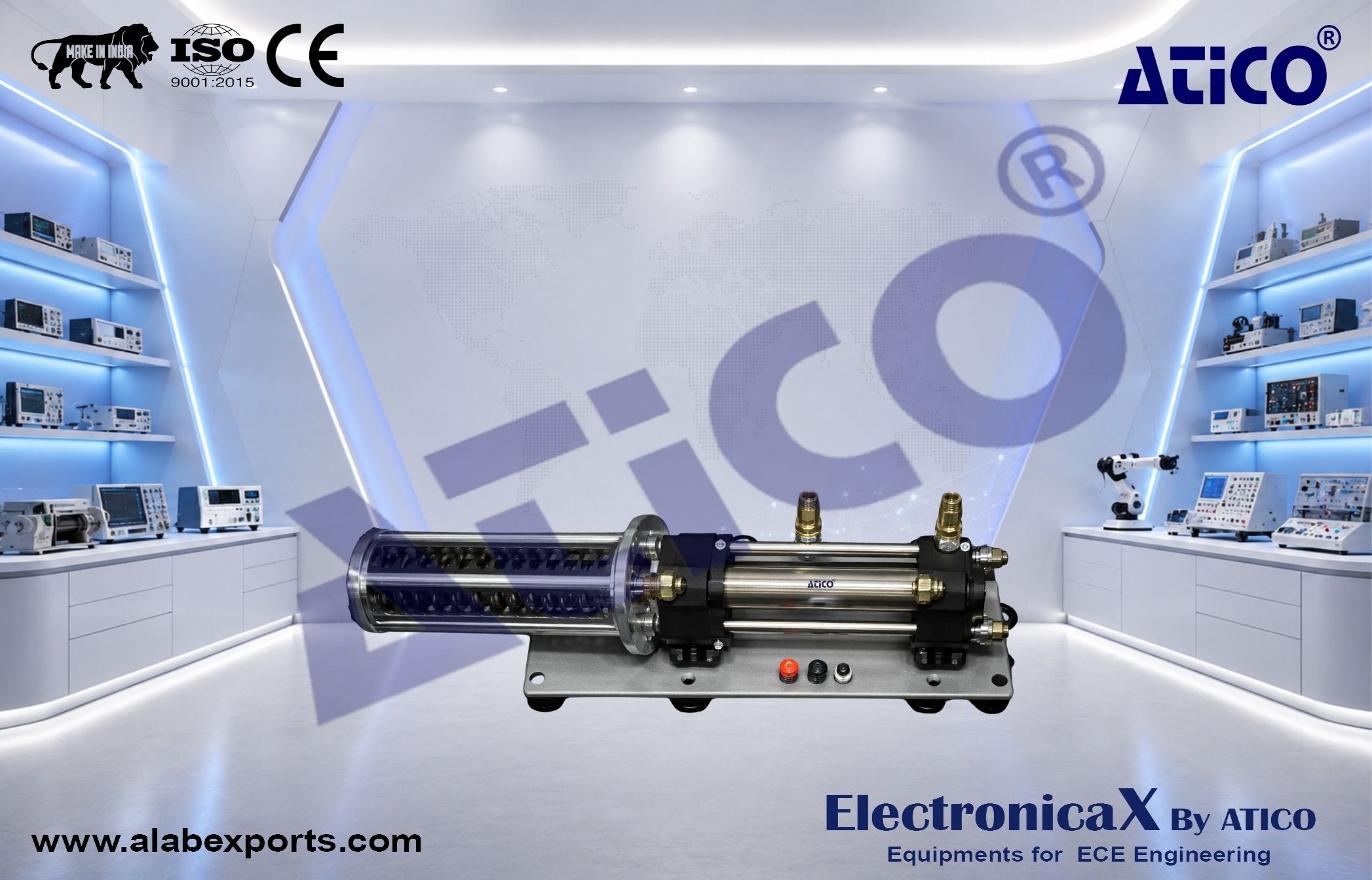

8. Double Acting Hydraulic Cylinder Module

9. T-Joint Module Complete with Quick Release Coupling

10. Flexible Hydraulic Hose come with Female Quick Release Coupling (0.8m)

11. Flexible Hydraulic Hose come with Female Quick Release Coupling (1.5m)

Courseware and Accessories :

• Instruction Manual With Collection Of Circuit Exercises (Hydraulics)

• Modular design allows modifications to suit course or student requirements
• Custom sizes for the modular board can be provided upon request
• Additional modular components are available separately if required
• High quality industrial grade components with quick release coupling ready for use
• All modules include male quick release coupling
