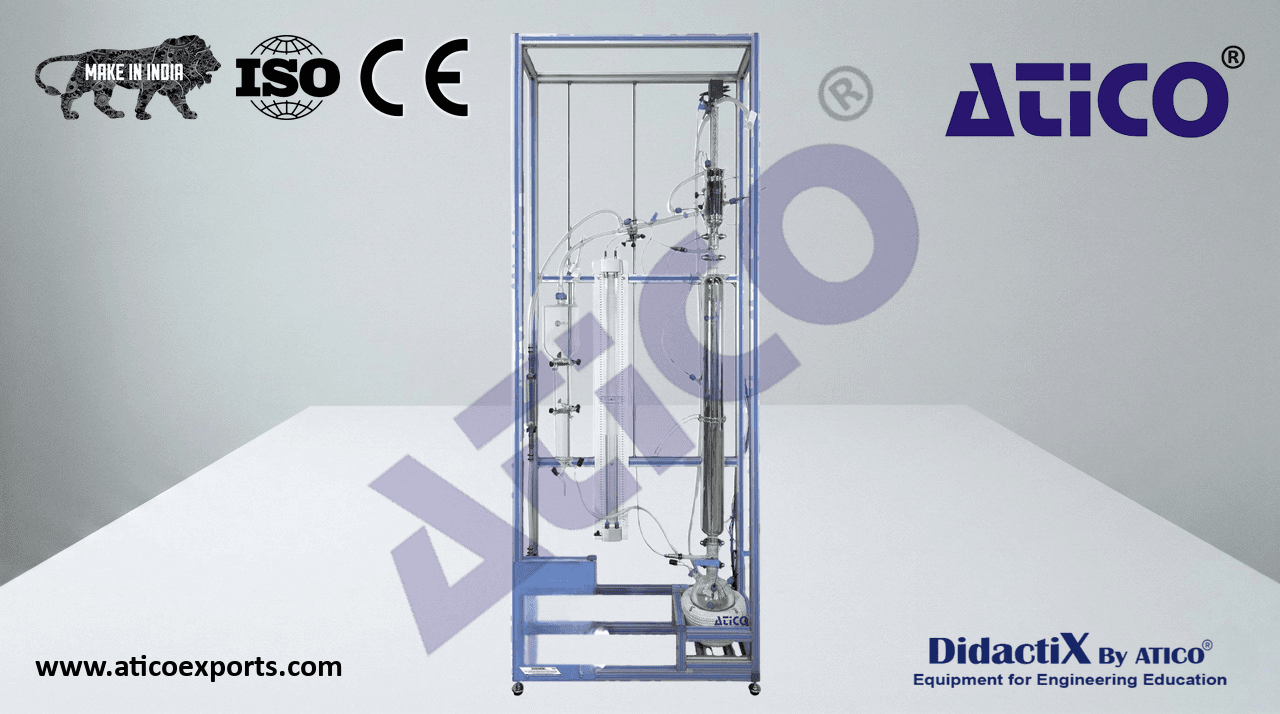

ATENG 10810 — Batch Distillation Unit
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Sieve Plates Column with eight plates with one temperature taking and sample:
- Internal diameter: 50 mm.
- Length: 1000 mm.
Vacuumed, silverplated and double transparent band for vision.
Column head with temperature taking and conical output for distilled product.
Column head with a valve for the steam distribution.
- Boiler (with sample outputs) with heating mantle, capacity: 2 l.
- Distillation collector of graduated glass, capacity: 2 l.
Refrigerator.
Temperature measurement system.
Seven ”J” type temperature sensors.
- Working temperature: ambient temperature up to 125 °C.
- Flow meter, range: 0.2 – 2 l/min.
Manometer tubes.
Solenoid valve. ATENG 10810 detail
- Electronic console:
Metallic box.
Temperature sensors connections.
Digital display for temperature sensors.
Selector for temperature sensors.
Heating element temperature control.
Solenoid valve switch.
Solenoid valve timer controller (Solenoid valve reflux time control).
Main switch.
Cables and accessories, for normal operation.
