BENDING STRESS IN A BEAM

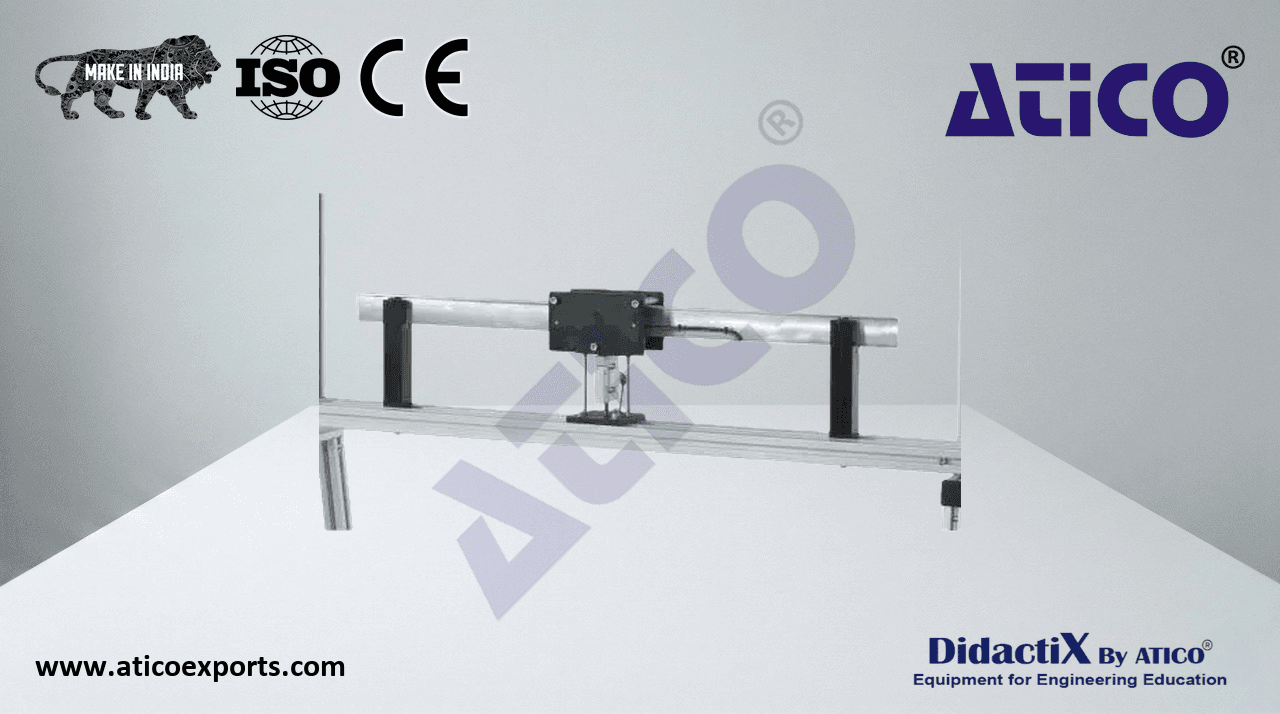

An inverted aluminium T-beam is mounted between two simple supports on point contacts. Load is applied via a screw jack mechanism with integral load cell, creating a three-point loading arrangement. A number of precision strain gauges are accurately located on the T-beam specimen, paired with temperature compensation dummy gauges for output stability. Learn about BENDING STRESS IN A BEAM suppliers for optimal educational outcomes.. Each strain gauge pair is numbered for accurate connection to a digital interface (sold separately).

• Beam dimensions: 900 (L) × 51 (H) × 25 (W) × 3.2 (t) mm
• Loading Mechanism: 0–500 N
• Strain gauges: Five pairs
• Gauging type: Half bridge strain gauging
