Bending Stress in a Beam (Next Generation Structures)

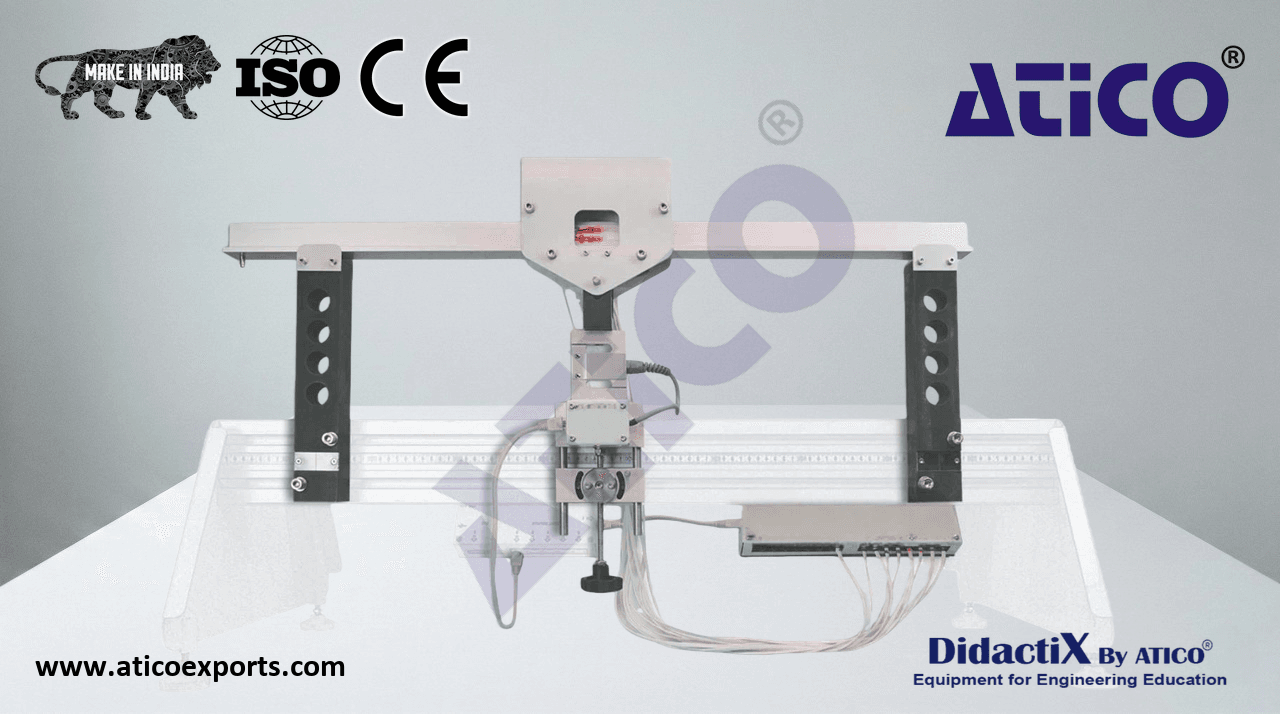

Experiment for the study of stress distribution across the section of a beam. Mounts on the Structures platform and connects to the Structures automatic data acquisition unit and software.

One of a range of experiment modules that fit to the Structures platform (available separately), this product helps students to understand the bending stresses at various positions of a beam section due to a load. Students add loads to an inverted T-section beam held on two supports. Strain gauges at different heights up the beam measure the strains due to the load. Learn about Bending Stress in a Beam (Next Generation Structures) equipment for optimal educational outcomes.. A load cell measures the force applied at the mid span of the beam. Students apply the load and measure the resulting strains. Learn about Bending Stress in a Beam (Next Generation Structures) exporters for optimal educational outcomes.. They use textbook beam equations to predict the stresses and bending moments for any given load, comparing them to measured results. This helps confirm the reliability of the textbook equations and the accuracy of the experiment results. Learn about Bending Stress in a Beam (Next Generation Structures) suppliers for optimal educational outcomes.. This product includes a Vernier Calliper for accurate measurement of the beam cross-section. The strain gauges connect to a strain gauge amplifier, which connects (with the load cell) to the USB interface hub of the Structures platform for computer display and data acquisition. Learn about Bending Stress in a Beam (Next Generation Structures) specifications for optimal educational outcomes..
