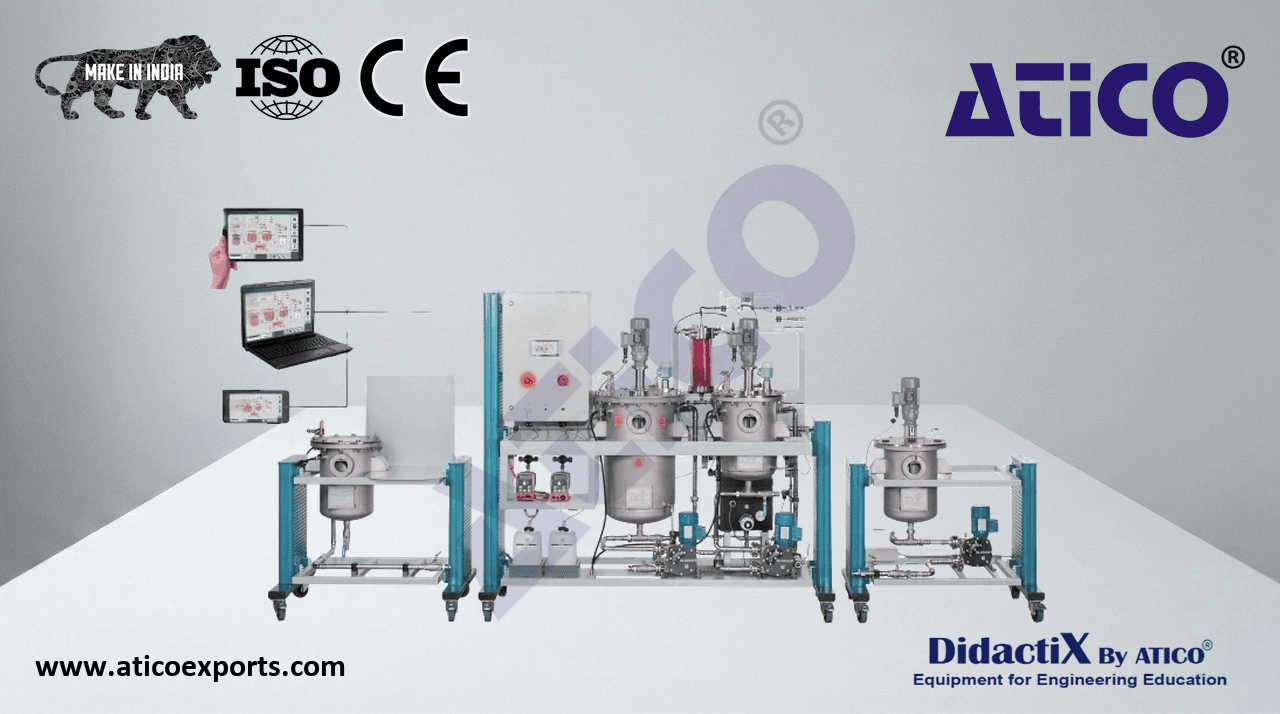

Biogas plant Deluxe

In a biogas plant, microorganisms biologically degradate the organic starting substances (substrate) under exclusion of light and oxygen. The product of this anaerobic degradation is a gas mixture which primarily consists of methane. This gas mixture is called biogas. Learn about Biogas plant price for optimal educational outcomes..

• two-stage biogas plant (continuous or discontinuous operation possible)
• 2 stirred tank reactors made of stainless steel with capacitive level sensors
• supply unit with substrate tank and feed pump
• control of temperature and pH value in the reactors
• 2 metering pumps for acid and caustic
• heating water circuit with tank, heater, temperature controller and pump
• biogas is dried with silica gel
• biogas analysis: flow rate, methane content, carbon dioxide content, humidity and temperature
• plant control with PLC via touch screen
• integrated router for operation and control via an end device and for screen mirroring: mirroring of the user interface on up to 5 end devices
• data acquisition via PLC on internal memory, access to stored measured values via WLAN/LAN with integrated router/LAN connection to customer’s own network or direct LAN connection without customer network
