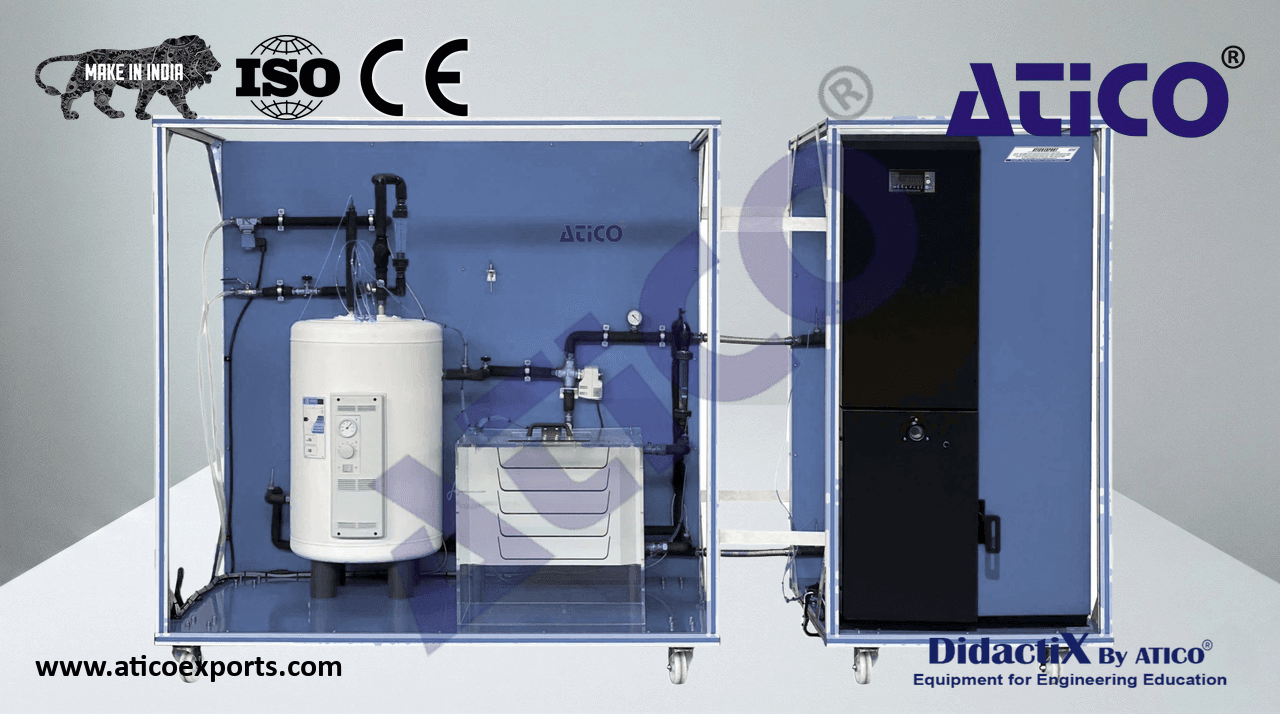

ATENG 12706 — Biomass Process Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Biomass boiler of 16 kW. It works with pellets and other granulated fuels:
Hot water circulating pump.
AISI 310 stainless steel burner.
Expansion tank of 8 l.
- Safety valve (2.5 bar).
- Water content in the boiler: 50 l.
Safety thermostat.
Drain valve.
ATENG 12706 detail
- Biomass boiler with a capacity of 75 kg.
- Regulation of the temperature in the boiler: from 60 °C to 87 °C.
Automatic cleaning system for the burner and ashes.
It includes boxes for separation and removal of ashes (burner, furnace and fumes passing chamber).
- Fumes temperature to minimum thermal power: 75 °C.
- Connection to the smokestack: 80 mm of diameter.
Double jacket storage tank made of stainless steel of 50 l for the DHW.
- Unit heater:
- Power: 14900 Kcal/h.
- Air flow (at maximum speed of the fan): 1550 mÂł/h.
Box made of PMMA where the unit heater is located.
Three-ways electronic valve.
Solenoid valve located at the storage tank tap water inlet line.
Three regulation valves of the hot water through the different circuits.
- Manometer, range: 0 – 4 bar.
Ten “J” type temperature sensors.
Three flow meter.
- Electronic console:
Metallic box.
Temperature sensors connectors.
Digital display for the temperature sensors.
Selector for temperature sensors.
Switches for the solenoid valves.
Switch for the pump.
Pump regulator.
Fan switch.
Fan regulator.
Main switch.
Cables and accessories, for normal operation.
