BOILING HEAT TRANSFER MODULE

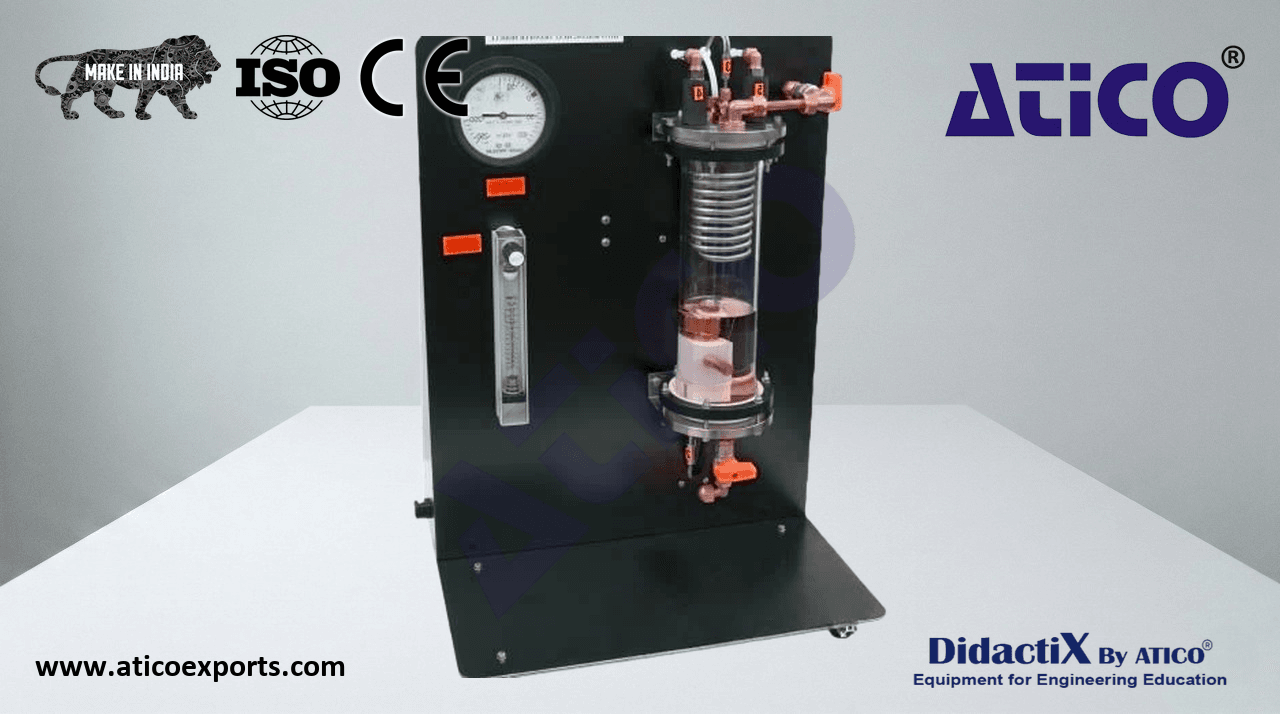

A bench top accessory designed to allow students to experimentally investigate convective, nucleate and film boiling. The unit consists of a high strength clear glass cylinder with an instrumented electric heater element immersed in a volatile solvent that boils at low pressure. An integral water cooled condenser coil allows the chamber pressure to be controlled over a wide range of negative and positive pressures depending upon the local water supply. Learn about BOILING HEAT TRANSFER MODULE exporters for optimal educational outcomes.. A digital wattmeter allows students to determine the heat transfer from the heated element. An integral control console provides heater power control and high temperature/pressure safety cut outs. Learn about BOILING HEAT TRANSFER MODULE price for optimal educational outcomes.. The chamber is also fitted with a safety valve.

• Heating Surface: 42mm effective length x Ø12.7mm
• Maximum permitted surface temperature: 220°C
• Heater cut out temperature: 160°C
• Glass chamber: Ø80mm internal x 300mm (L)
