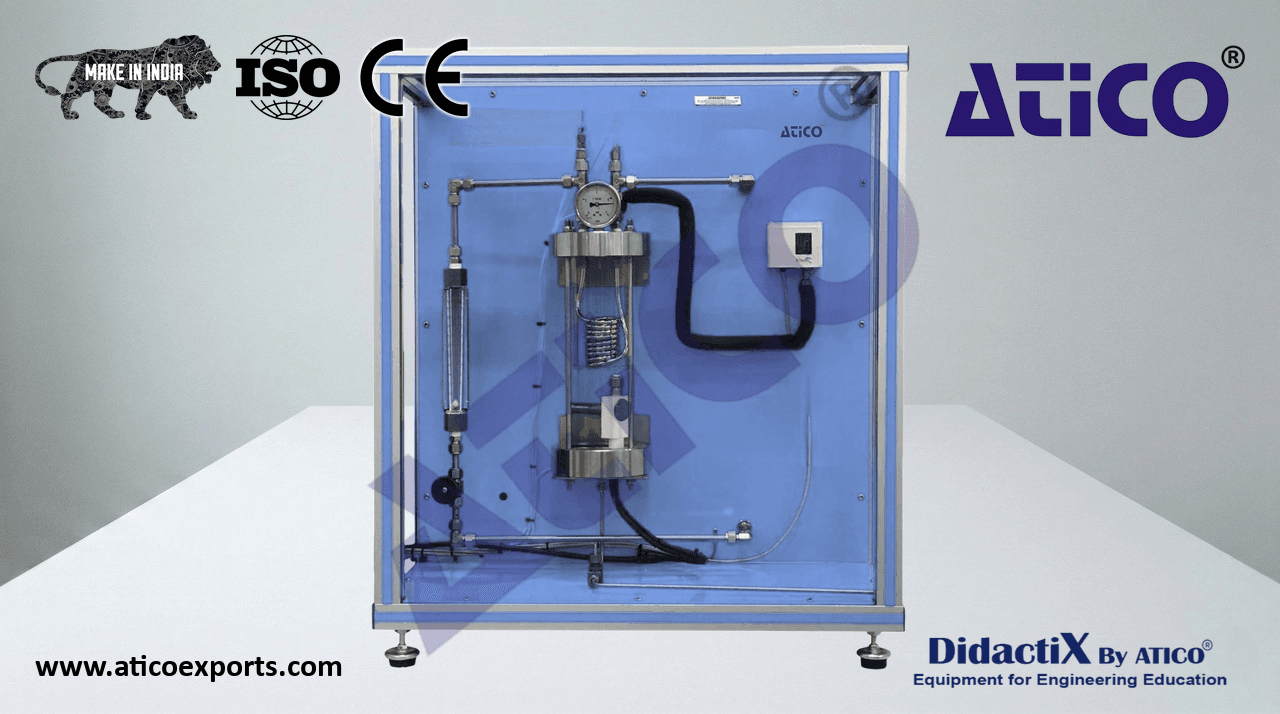

ATENG 12851 — Boiling Heat Transfer Unit
Bench-top unit.
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Chamber:
Cylinder of boron silicate of high resistance.
- Internal diameter: 90 mm.
- External diameter: 100 mm.
- Length: 300 mm.
- Heating resistance of 690 W, stuffed in a copper cylinder of internal diameter: 12.7 mm, external diameter:
- 16 mm and length 50 mm.
- Serpentine condenser: a copper tube plated with a surface of 0.043 m².
Load valve placed in the bottom part of the cylinder and it is used for charging and discharging of the unit.
Water flow control valve located in the conduction line of water. It regulates the water flow that inputs the
serpentine.
Purge and safety valve.
- Five temperature sensors (“J” type): ATENG 12851 detail
Temperature sensor to measure the temperature of the hot surface.
Temperature sensor to measure the temperature of the coolant.
Temperature sensor at the water inlet.
Temperature sensor at the water outlet.
Temperature sensor to determine the temperature of the saturated vapour.
Pressure meter.
Wattmeter.
Flow meter.
Temperature switch, ready to cut off the electric current if the temperature exceeds the alarm value.
Pressure switch.
Designed to employ the coolant SES-36.
- Electronic console:
Metallic box.
Heating resistance controller.
Temperature sensors connections.
Digital display for the temperature sensors.
Selector for the temperature sensors.
Wattmeter display.
High pressure control connection.
Cables and accessories, for normal operation.
