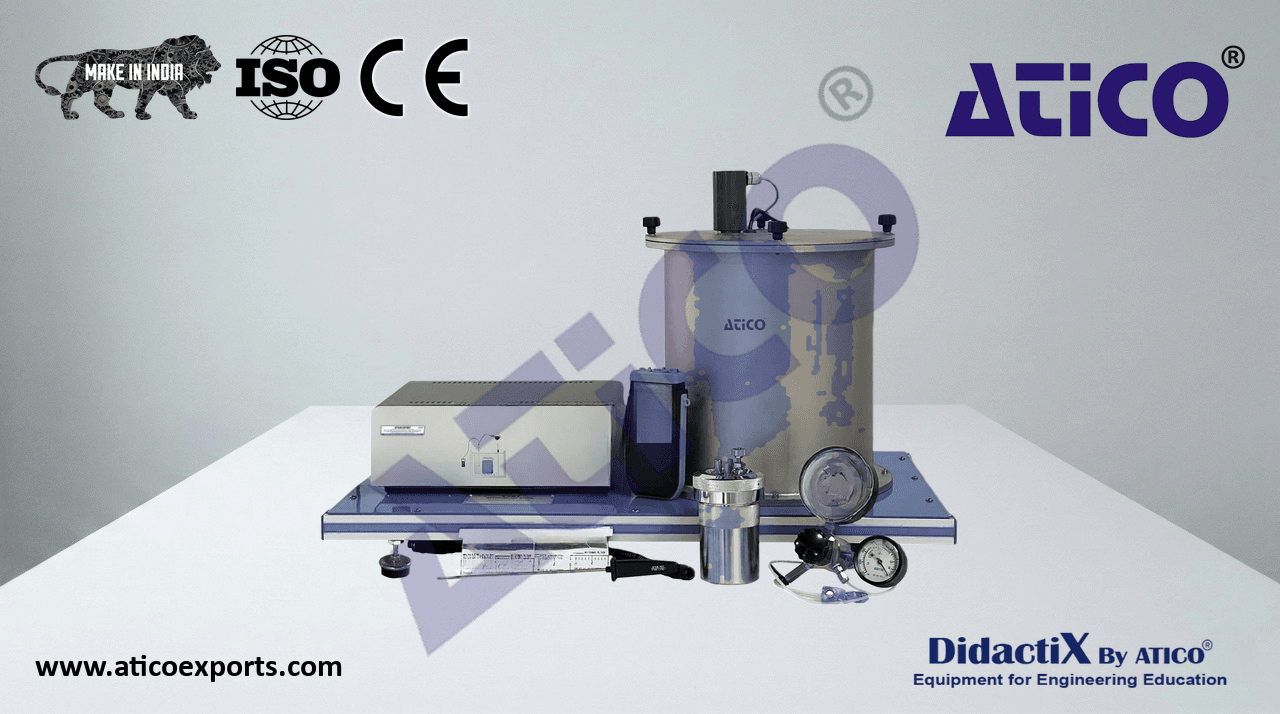

ATENG 12680 — Bomb Calorimeter
Bench-top unit.
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Calorimeter for testing calorific value of fuels, including:
- Calorimeter bomb made of stainless steel. Working pressure: 30 atm.
- Calorimeter vessel:
Made in stainless steel.
- Maximum volume: 4 l.
Double walled outer jacket made of stainless steel, with water inlet and outlet.
Electric stirrer with one rod and two blades.
- Accurate thermometer:
- Range: -50 °C – 500 °C.
- Accuracy: 0.01 °C.
Charging unit with pressure gauges.
Nickel crucible. ATENG 12680 detail
Reel of nickel-chrome wire.
- Electronic console:
Stirrer switch.
Ignition switch.
Main switch.
Cables and accessories, for normal operation.
