Borg-Warner Automatic Transmission

The Borg-Warner Automatic Transmission, includes a torque converter and a three-speed automatic system that will allow the student to carry out experiments with different transmission ratios simulating clutches and band brakes.

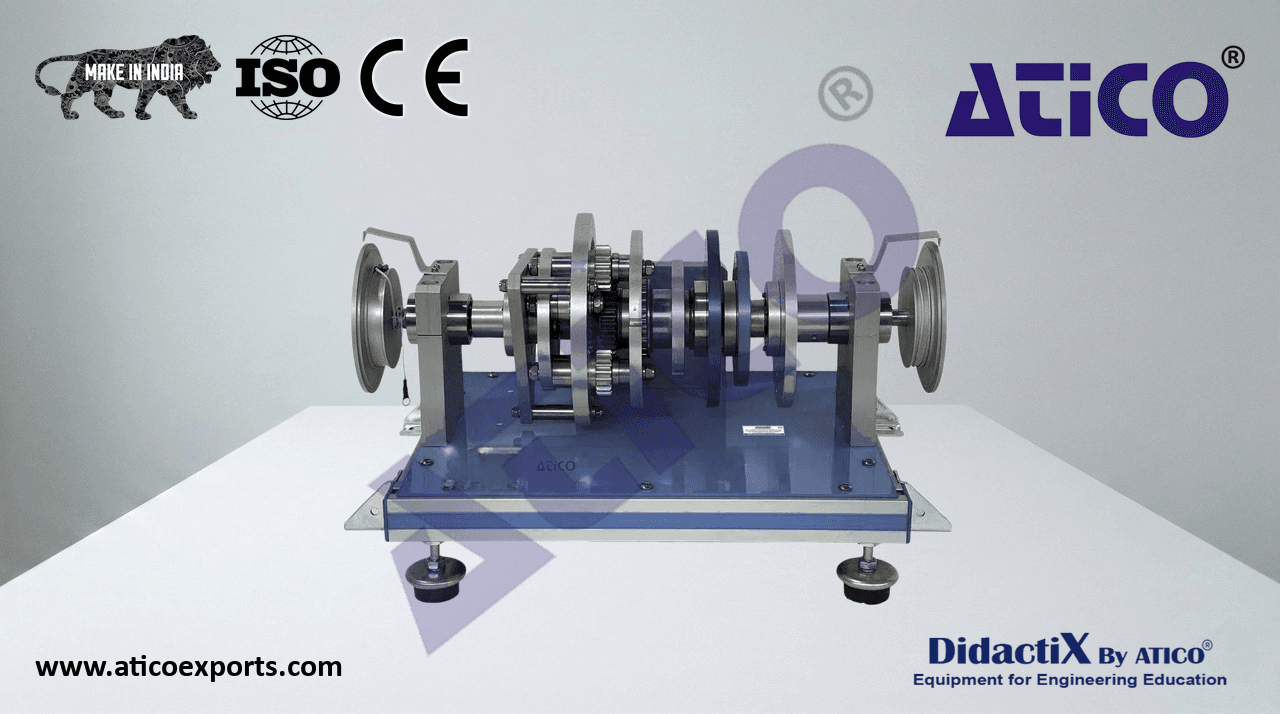

ATENG 12196 — Borg-Warner Automatic Transmission

Bench-top unit with adjustable legs.

Anodized aluminum frame and panels made of painted steel.

• The “ATENG 12196” unit mainly consists of:
• Epicyclic gear set is composed of:
  Two sun gears, one to transfer forward gear ratios and one reverse gear.
• Two set of planet gears: long and short planet gears.
  Ring gear.
  Two graduated discs, with angular indicator, placed in the input and output shaft.
  Two input discs to simulate the clutch of gears.
  Some mechanic actuators or pins that simulate the pilot valves used to brake the
  different components of the planetary gear. ATENG 12196 detail
  The shafts of the unit is made of stainless steel. The discs and the gears are made of aluminum to facilitate the practice's carrying out.
