BOYLES LAW DEMONSTRATOR (COMPRESSOR VERSION)

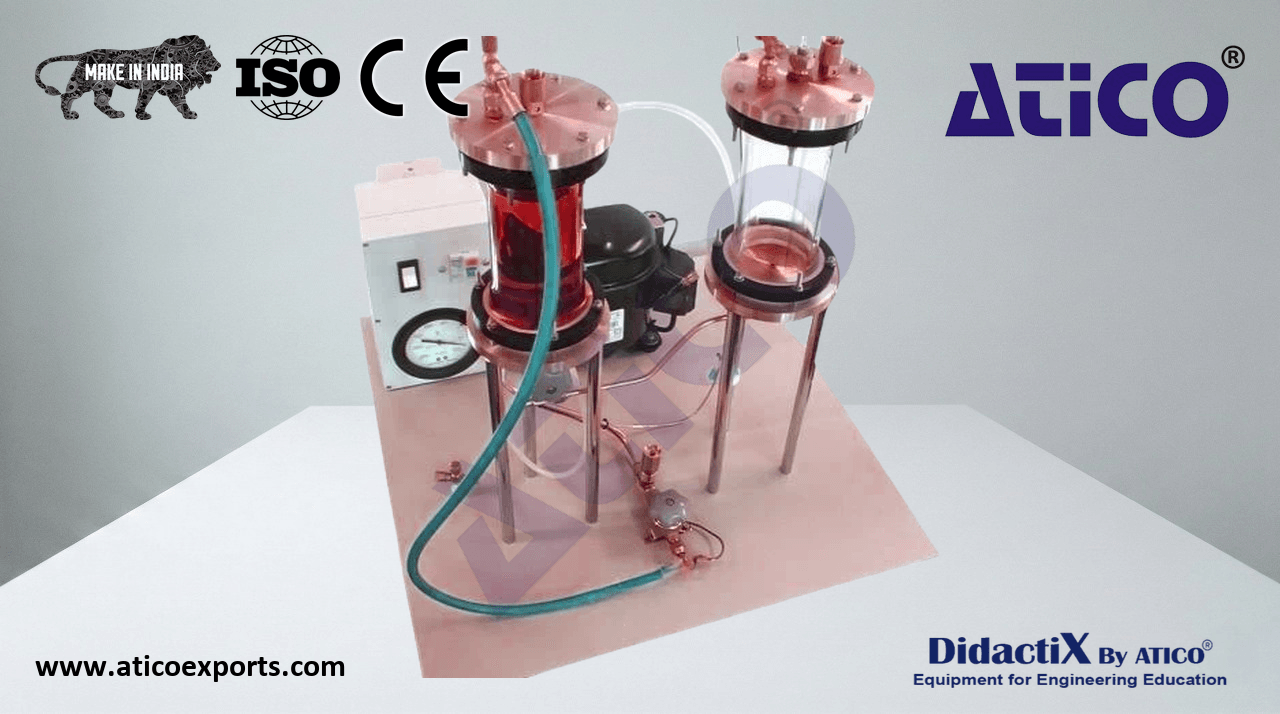

Two sealed glass cylinders with access valves are mounted on a base board and connected via a tube. One cylinder performs the measuring function and the other is used to pressurise the volume of gas contained above oil in the measuring cylinder. The measuring cylinder is fitted with a compound gauge designed to measure the gas pressure both above and below atmospheric pressure. Learn about BOYLES LAW DEMONSTRATOR (COMPRESSOR VERSION) exporters for optimal educational outcomes.. The height of oil and hence the volume of gas in the measuring cylinder is measured using a graduated scale. A thermometer in the measuring cylinder allows the gas temperature to be determined. Learn about BOYLES LAW DEMONSTRATOR (COMPRESSOR VERSION) manufacturers for optimal educational outcomes.. A small electric compressor provides a means of adjusting the pressure of the test gas above and below atmospheric pressure. The compressor is mounted on the base board and controlled by a panel mounted switch. Learn about BOYLES LAW DEMONSTRATOR (COMPRESSOR VERSION) equipment for optimal educational outcomes.. A pressure switch and relief valves ensure operator safety.

• Glass cylinder volume: 1 litre
• Glass cylinder: Ø100mm x 220mm high
• Measured height displayed by scale: 200mm
• Compressor: 500W
