Brinell, Vickers & Rockwell Hardness Testing Unit Deluxe

The Brinell, Vickers and Rockwell Hardness Testing Unit, allows to measure and to determine Brinell, Vickers and Rockwell hardness of metallic materials or test pieces.

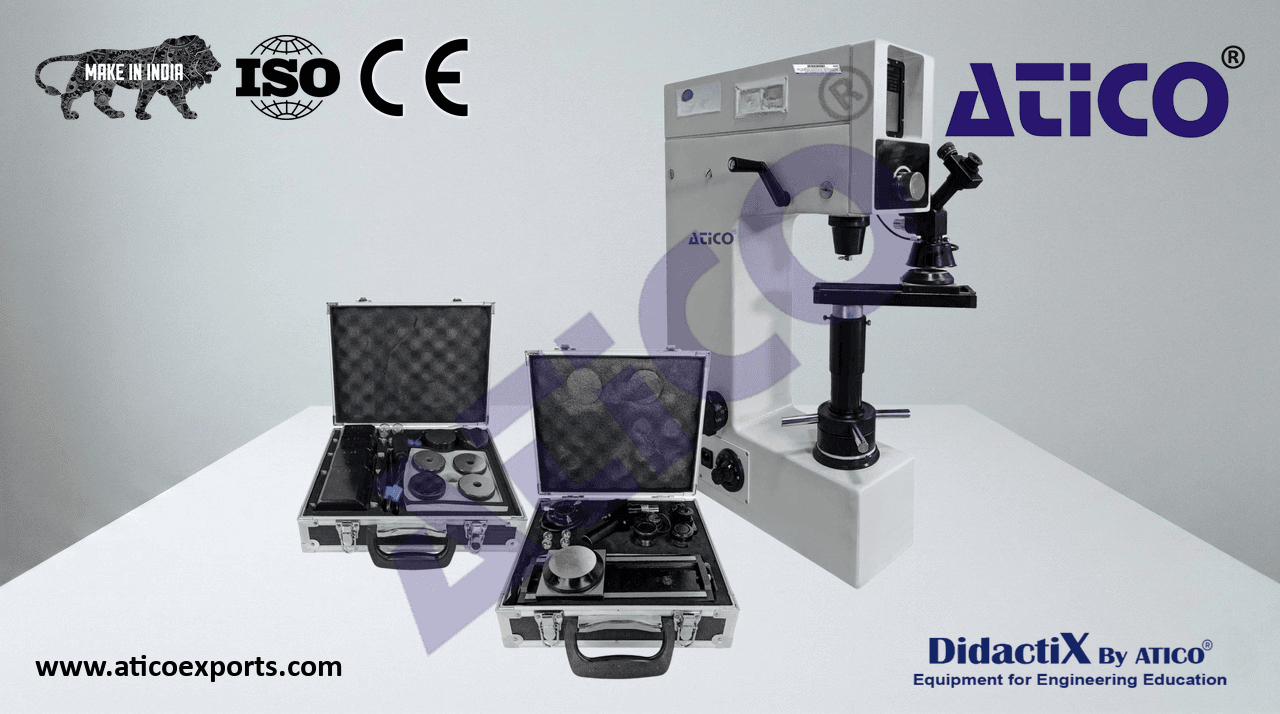

ATENG 12227 — Brinell, Vickers & Rockwell Hardness Testing Unit

• Dead weight universal analogical hardness tester. It allows to combine three hardness tests: Brinell, Vickers and Rockwell.
  Simple testing cycle through a lever.
• Maximum test height: 180 mm.
• Maximum depth (from the center): 200 mm.
• Test loads:
• Brinell: 31.25 – 62.5 – 187.5 Kg (306 – 613 – 1839 N).
• Vickers: 30 – 100 Kg (294 – 588 – 980 N).
• Rockwell: 60 – 100 – 150 Kg (588 – 980 – 1471 N).
• Hardness reading range:
• Brinell: 4 – 450 HB.
  ATENG 12227 detail
• Vickers: 14 – 1000 HV30.
• Rockwell: 70 – 85 HRA, 20 – 67 HRC and 30 – 100 HRB.
• Imprint measurement:
• Brinell: imprint reading with microscope.
• Vickers: imprint reading with microscope.
• Rockwell: optical reading.
• Gage block:
• Brinell: 200 ± 50 HB 2.5/187.5/30.
• Vickers: 450 ± 50 HV 30.
• Rockwell: 55 – 65 HRC, 25 – 95 HRC and 75 – 95 HRB.
• Type of indenter:
• Brinell test: balls of 2.5 and 5 mm.
• Vickers test: cone made of diamond 136°.
• Rockwell test: cone made of diamond 120° and ball of 1/16” (1.588 mm).
  Large testing platform. Medium-size testing platform. V-shaped testing platform. Sliding platform. V-shaped platform. Pyramidal platform.
• Portable microscope for imprints reading:
  Micrometric lens of 15 X.
  Lenses (2.5 X) and (5 X).
  Six lamps for measurements.
  Cables and accessories, for normal operation.
