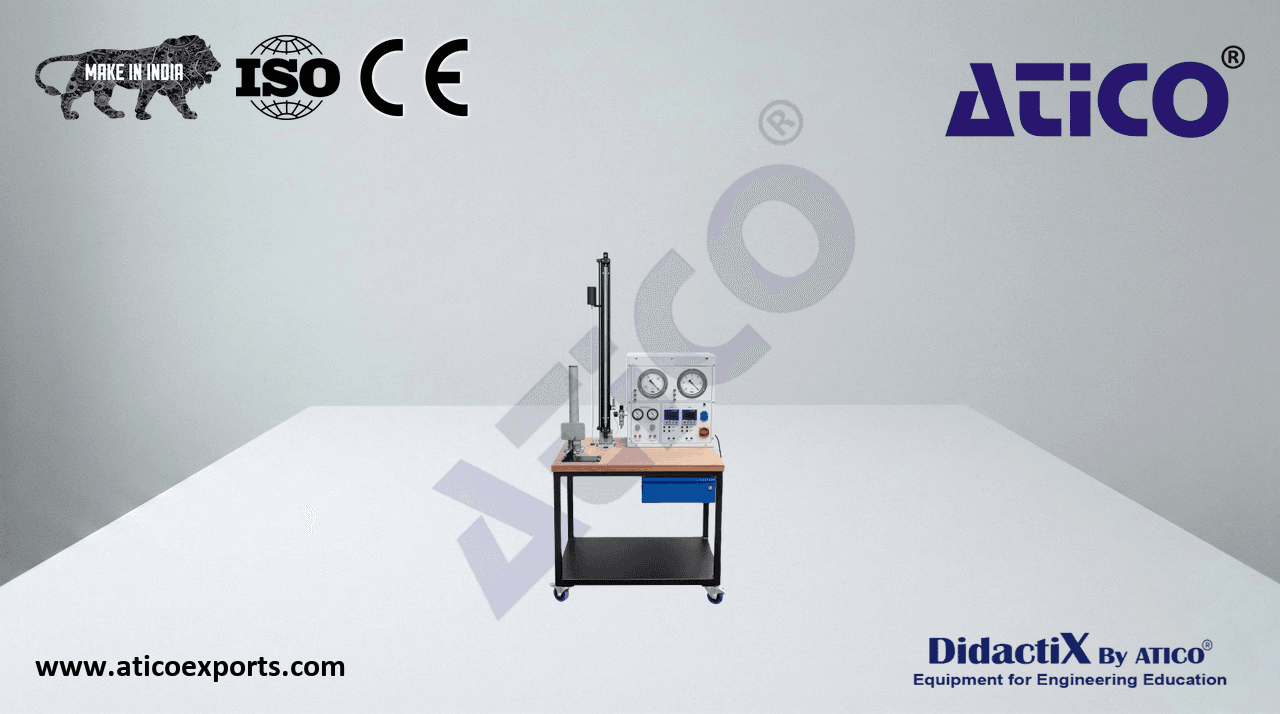

Calibration trainer

The calibration trainer is used to investigate the transmission behaviour of electrical and pneumatic control loop components such as transducers and control valves. Electrical and pneumatic signals can be generated to effect actuation of the individual control loop components. A precision measuring technique facilitates the recording of the output signals from the control loop components. Learn about Calibration trainer specifications for optimal educational outcomes..

• investigation of transmission behaviour and calibration of control loop components and measuring instruments
• sending and measuring pneumatic and electrical signals
• 2 pressure regulators with manometers
• height-adjustable tank and scale to set low pressures
• 2 controllers to send and measure current signals
• 2 DC voltage sources to supply control loop components with auxiliary power
• 2 precision manometers, D=160mm
• control loop components and meters available as accessories
