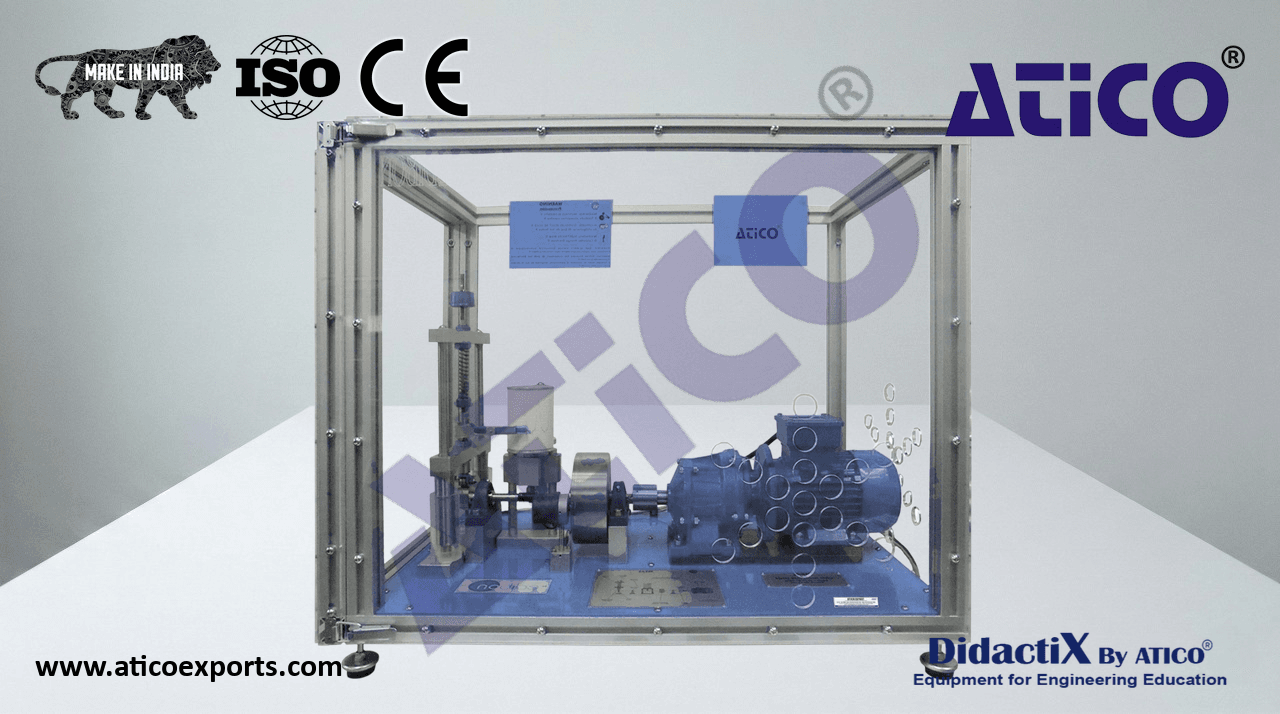

ATENG 12095 — Cam Analysis Unit
Bench-top unit.
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Electric motor with variable speed:
- Power: 250 W approx. ATENG 12095 detail: Cams
- Velocity: 0 – 670 rpm approx.
Velocity controlled from the console. The unit allows to measure the velocity of the motor and visualize it in the screen of the console.
Extension shaft made of stainless steel.
- Speed sensor, range: 0 – 1000 rpm.
- Six interchangeable cams:
Two circular cams with different radii of lateral curvature.
Concave cam.
Tangent cam.
Eccentric cam.
Oval cam.
- Two different followers:
Roller follower.
Flat surface follower.
- Three interchangeable springs with different constants. Values: 5.026 N/mm, 2.601 N/mm and 0.613 N/mm.
Weight of 200 g.
Drum recording system, consisting of a tracer and a recording drum.
Transparent safety cover.
- Electronic console:
Metallic box.
Connector of the speed sensor.
Connector of the motor.
ON/OFF controller of the motor.
Speed control of the motor.
Digital screen for the speed of the motor.
The unit includes rolls of graph paper and several marker pens.
Cables and accessories, for normal operation.
