Cam and Follower Mechanism Deluxe

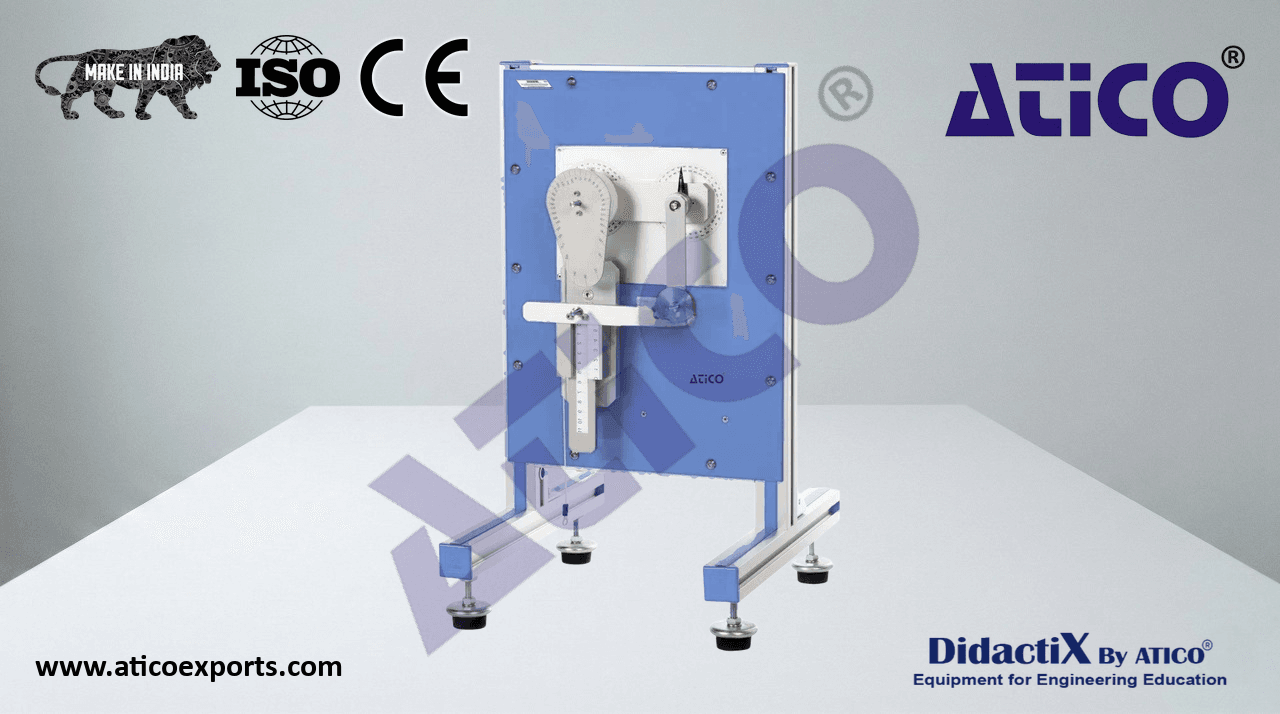

The Cam and Follower Mechanism, allows to study the cam-follower and eccentric-follower mechanisms. For that purpose, several plate cam models in different forms, one eccentric and several roller-shaped, flat-shaped followers models are supplied.

ATENG 12070 — Cam and Follower Mechanism

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

• The “ATENG 12070” unit mainly consists of:
• Five cams (aluminum) of different shapes:
  Circular cam (eccentric).
  Cam with straight sides.
  Cam with curved sides.
  Two non circular cams.
• Three followers:
  Two roller-shaped followers with different diameter.
  Flat-shaped follower.
• () Optionally, two additional followers can be included: wedge-shaped follower and
  oscillating follower. Check price and delivery time ().
  Graduated ruler for measuring the stroke. ATENG 12070 detail
  () Optionally, a dial gauge can be included to measure the stroke. Check price and delivery time ().
  Graduated discs for measuring the angle of rotation.
  In order to carry out some of the practices with “ATENG 12070” unit 1 set of weights “B type”is recommened.
