CASTOR, CAMBER AND KING PIN INCLINATION

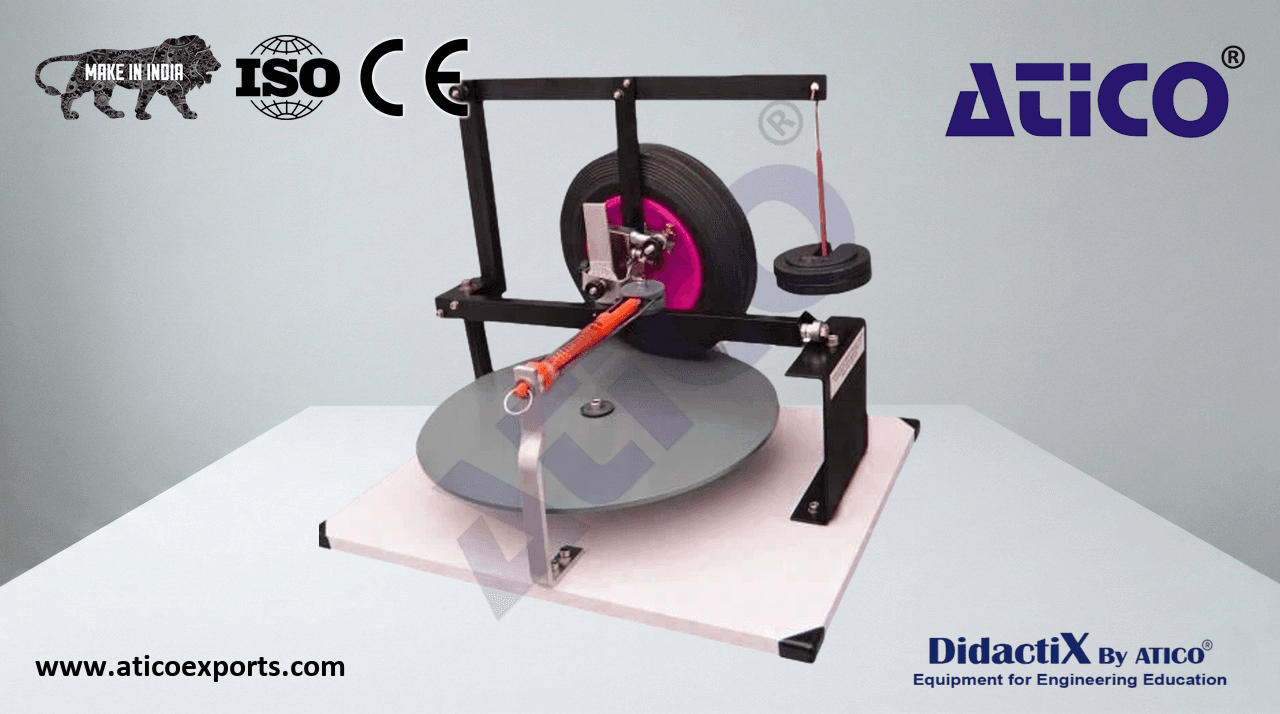

Apparatus designed to help students understand the principles of front wheel geometry on road vehicles, where angles exist in three dimensions. Demonstrates precisely how castor, camber and king pin inclination are set up, and how centre point steering is achieved. A wheel and offset adjustment mechanism allow all factors affecting centre point steering to be varied. Learn about CASTOR, CAMBER AND KING PIN INCLINATION theory-machines India for optimal educational outcomes.. Vernier scales measure castor angles and king pin inclination, while toe-in and camber angles are measured from longitudinal and vertical datums, as they would be on a real vehicle. A hand-driven rotating turntable simulates a rolling road at a speed slow enough to study wheel stability under running conditions. Learn about CASTOR, CAMBER AND KING PIN INCLINATION suppliers for optimal educational outcomes..

• Running wheel diameter: Ø250 mm
• Turntable diameter: Ø380 mm
• Vernier scale: ±5°
• Protractor scale: ±40°
