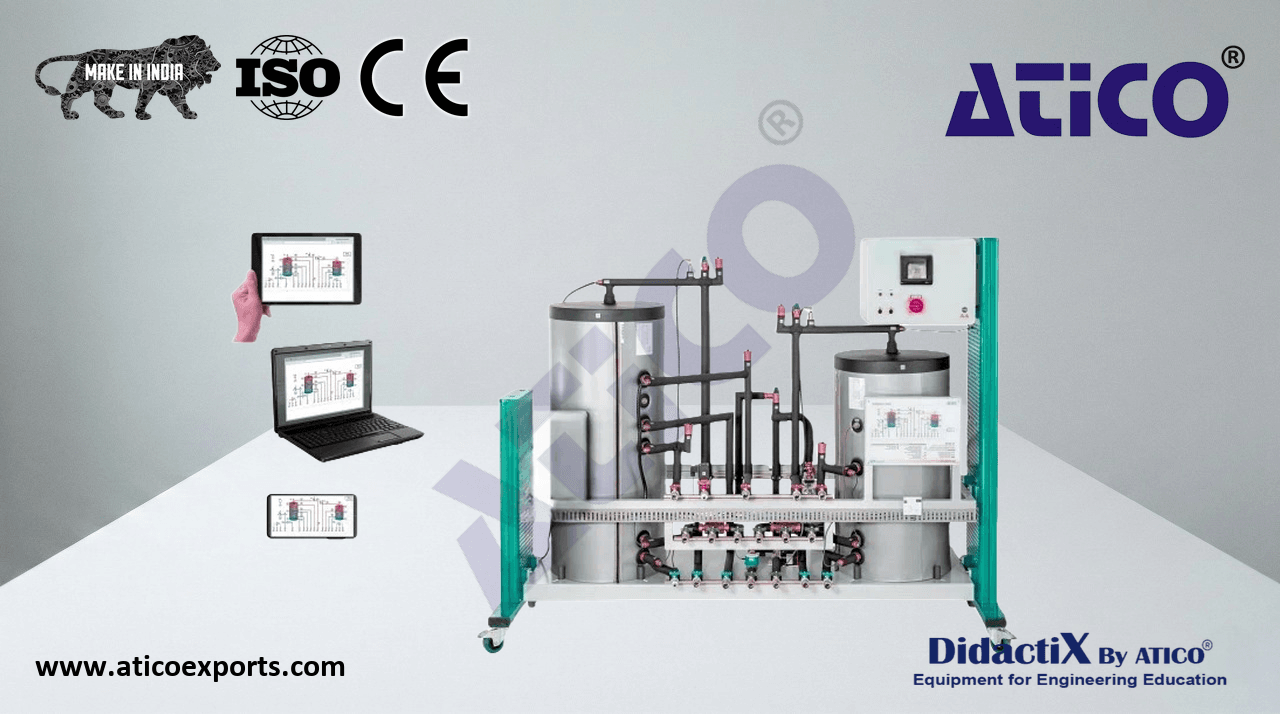

Central storage module with controller Deluxe

The modular system allows experiments on the generation, storage and use of heat from renewable energies. A variety of heat sources, storage types and consumers can be used. The system uses typical real-world components from the field of modern heating technology. Learn about Central storage module with controller manufacturers for optimal educational outcomes..

• buffer storage and bivalent storage for experiments with the modular system
• heat transfer pipes with quick-release coupling and shut-off valve
• pressure relief and bleed valves for safe operation
• circulating pump with adjustable speed
• driven 3-way valves
• temperature sensors for heat storage and room temperature
• 2 pressure sensors for system monitoring
• flow meters and temperature sensors for determining the heat flows
• freely programmable heating controller with data logger, operation via touch screen or web browser with LAN/ WLAN connection
• remote learning: integrated WLAN router for access to ongoing experiments from any number of external workstations
• experiment evaluation with additional manufacturer software of the heating controller
