ATENG 12098 — Centrifugal Force Unit
Bench-top unit.
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- The “ATENG 12098” unit consists mainly of:
- Motor with speed sensor:
- Speed range: 0 – 1500 rpm.
The motor speed is controlled through the electronic console and the value of the

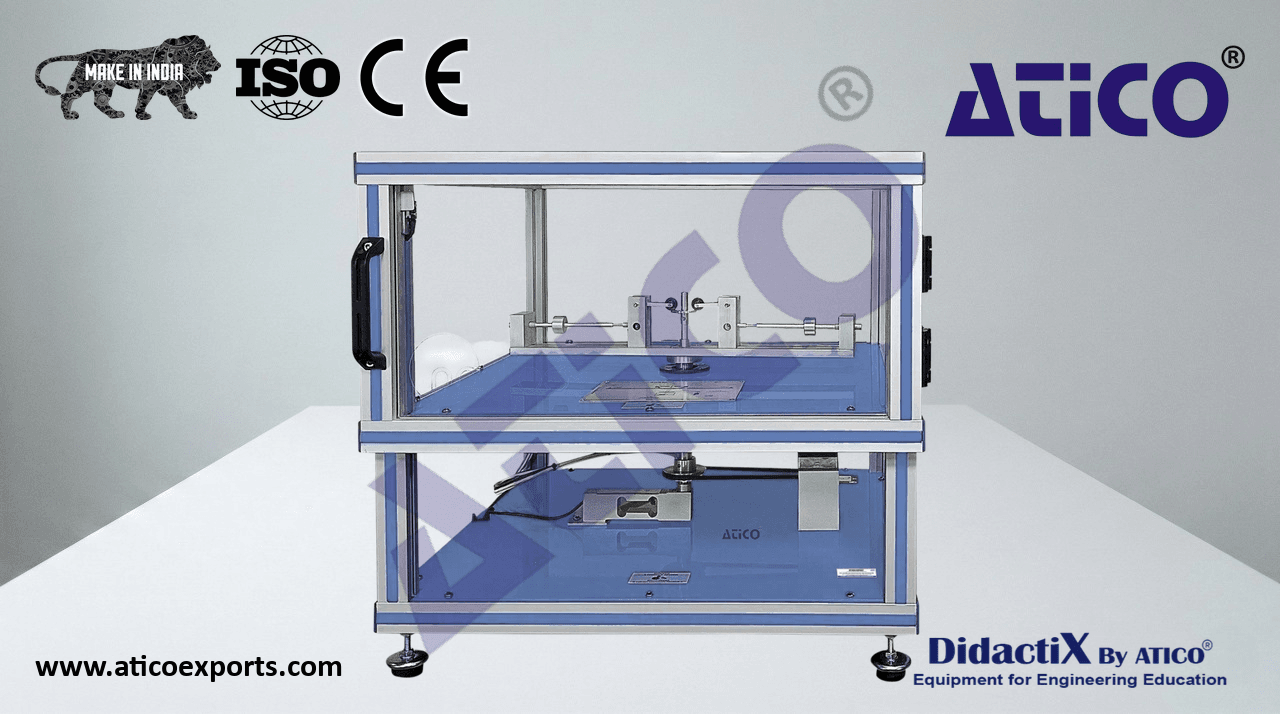

ATENG 12098 detail
speed is visualized in a digital display.
Transmission ratio by pulleys.
- Rotating arm to place the weights at different positions: 112, 137, 162 and 187 mm from the center of rotation.
- Force sensor, range: 0 – 30 N, resolution: 0.1 N.
Transparent protective cover, made of plastic, provides protection against the rotating parts and enables different experiments to be
observed. This cover includes a safety switch, which allows automatically stops the electrical motor if the cover is opened.
- Electronic console:
Metallic box.
Main on/off switch.
Motor switch.
Motor speed controller.
Digital display for the motor speed.
Digital display for the force sensor.
Cables and accessories, for normal operation.
