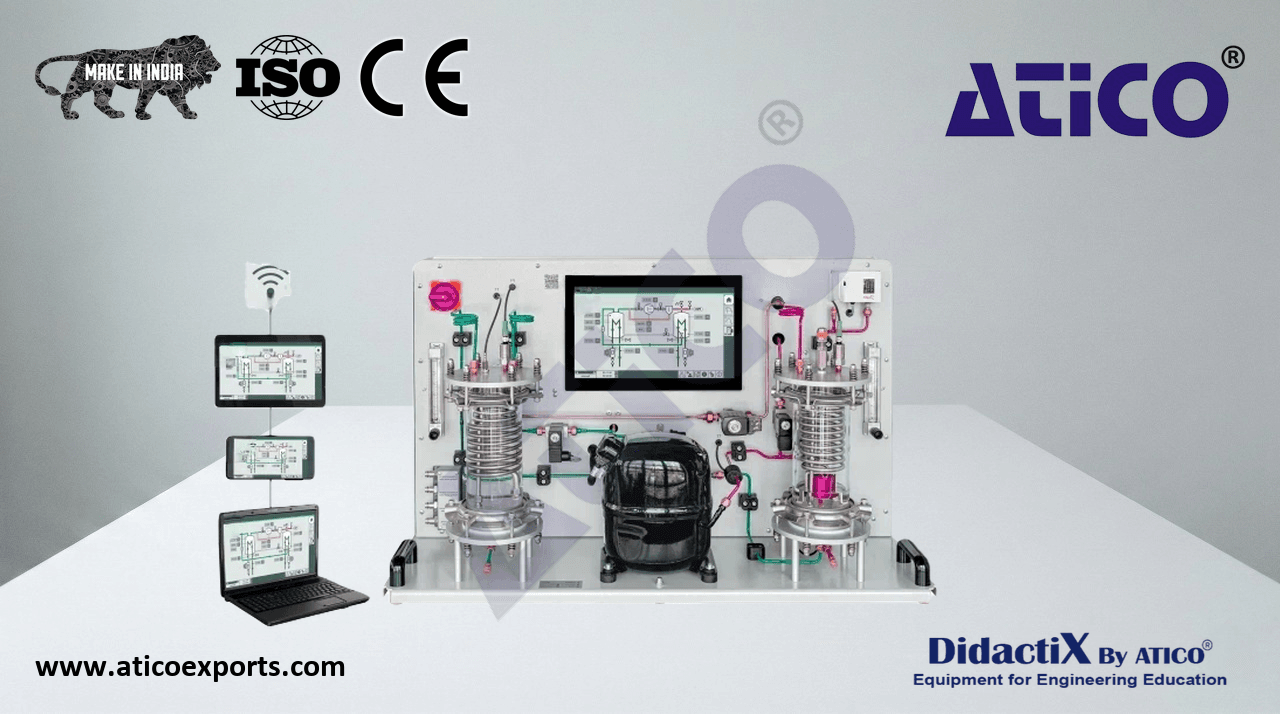

Changes of state in the refrigeration circuit

Uses transparent components to demonstrate the physical changes of a refrigerant as it moves through a compression cycle. It specifically highlights the transition from liquid to gas and the resulting evaporation enthalpy.

• transparent evaporator and condenser for process monitoring
• augmented reality visualisation of circuit components
• features pipe coil exchangers and a float-type expansion valve
• data acquisition via PLC with WLAN/LAN connectivity
• uses refrigerant R1233zd (GWP: 4)
• digital multimedia materials included
