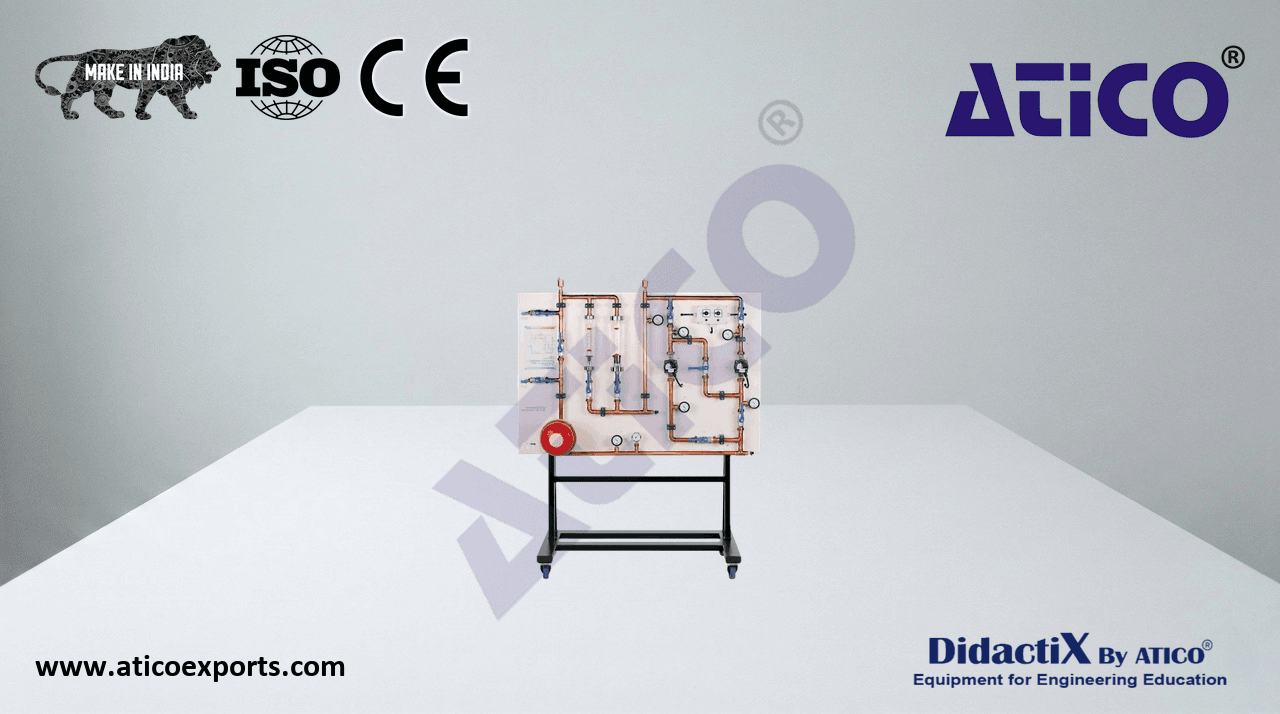

Circulating pumps training panel

The trainer contains a pipe system with two circulating pumps. It is possible to switch between series and parallel operation using ball valves.

• series and parallel operation of 2 pumps
• training panel can be changed to various operating modes using ball valves
• 2 rotameters
• pressure measurement with 6 Bourdon tube manometers
• 1 bimetallic thermometer
• water connections made using quick-release couplings
