Circulating Pumps Training Unit

The Circulating Pumps Training Unit, is an advanced tool designed to facilitate the study and understanding of the operation of circulation pumps in heating systems and sanitary techniques.

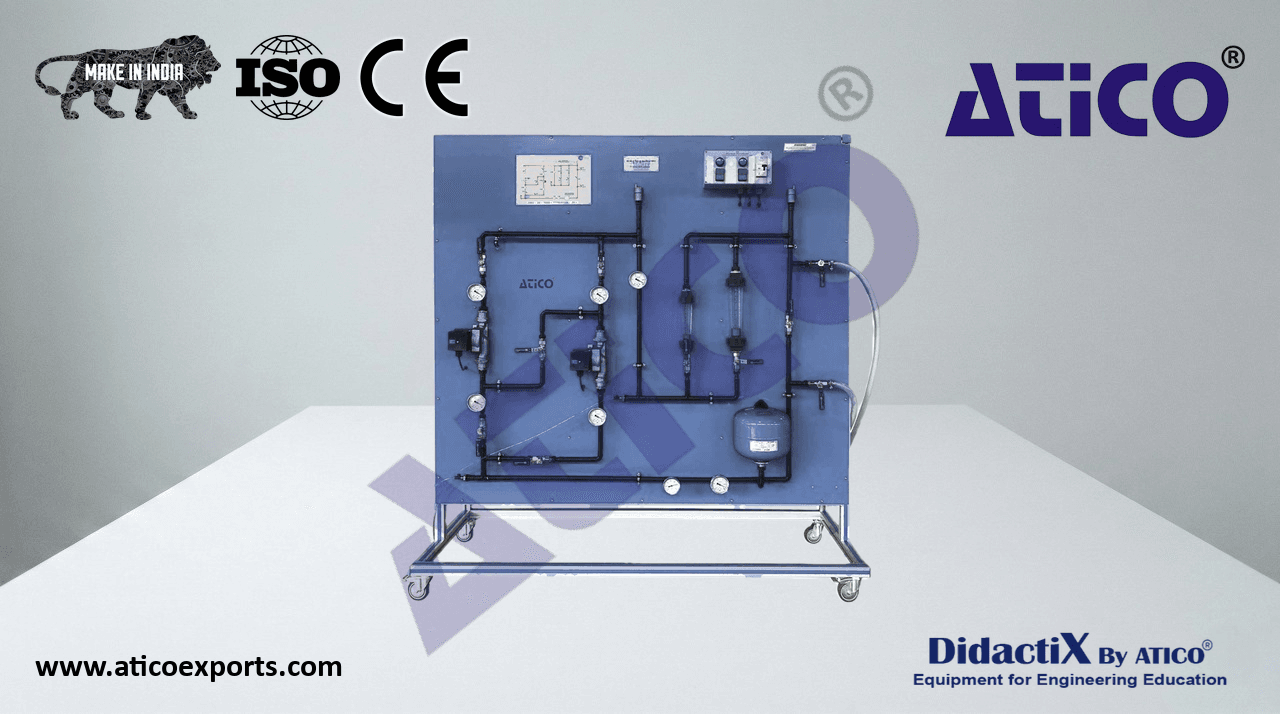

ATENG 12730 — Circulating Pumps Training Unit

Anodized aluminum frame and panels in painted steel.

The unit includes wheels to facilitate its mobility.

Main metallic elements made of stainless steel.

Diagram in the front panel with distribution of the elements similar to the real one.

• Two circulating pumps:
• Power consumption: 77 W.
• Max. flow rate: 60 l/min.
• Max. head: 6 m.
  Expansion vessel.
• Five Bourdon manometers, range: 0 – 2.5 bar.
  Ten Ball valves that allows the circuit to work in series or in parallel.
  Two bleed valves.
• Two flowmeters:
• Range: 150 – 1600 l/min. ATENG 12730 detail
• Range: 0.4 – 4 m³/h.
• Bimetallic thermometer, range: 0 – 120 °C.
• Control panel:
  Pump connections.
  Pump switch.
  Pump controllers.
  Main switchs.
  Cables and accessories, for normal operation.
