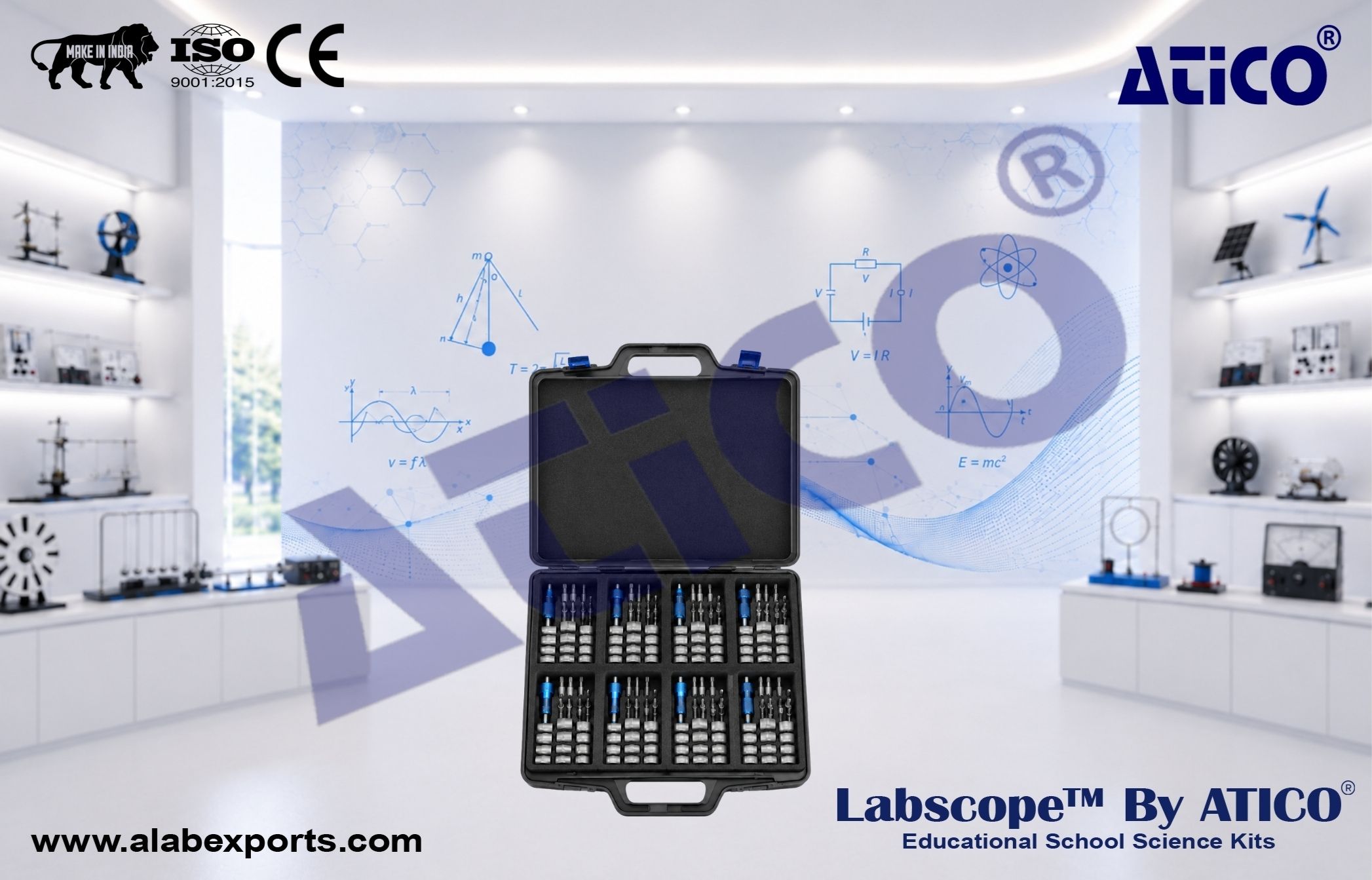

Class Set for Electrical Circuits Physics School Science STEM Kit

Function and Applications:

• Classroom set designed for six learning groups

• Consists of six compact blocks with plug-in elements

• Enables independent investigation of basic electrical circuits using a plug-in board

• Using graphite pencils, students can investigate:

  • Electrical resistance as a function of length
  • Electrical resistance as a function of thickness

• Experiments can be carried out directly in student notebooks

Accompanying Material:

• Editable Word versions of all student worksheets available for free download

• Teacher’s guide included

• Help cards for:

  • Use of the circuit board
  • Circuit symbols

• 10 stations on household electrical circuits

• Additional tasks such as circuit puzzles

• Graphite pencil, 8B
• Branch clamp with 4 mm plug
• Lever switch arm on plug-in pin
• Switch contact on plug pin
• Experiment cable, red, 25 cm
• Experiment cable, black, 25 cm
• E10 socket
• Bulbs, E10 / 12 V / 0.25 A, pack of 10
• Red LED on insert
• Jumper plugs, 19 mm spacing
• Resistor on insert, 47 Ω
• Resistor on insert, 100 Ω
• Schematic for 23410

• All components designed for operation at 12 V
• Includes two changeover switches for studying alternating current circuits
• Voltage, current, and resistance explained through detailed illustrations showing conductor behaviour
• Completeness of the set can be checked quickly and easily
• Internal differentiation supported through digital help cards accessible via QR codes
