Color Sensitive Diode Characteristic Physics Lab Experiments Setup by ATICO EXPORT

Overview

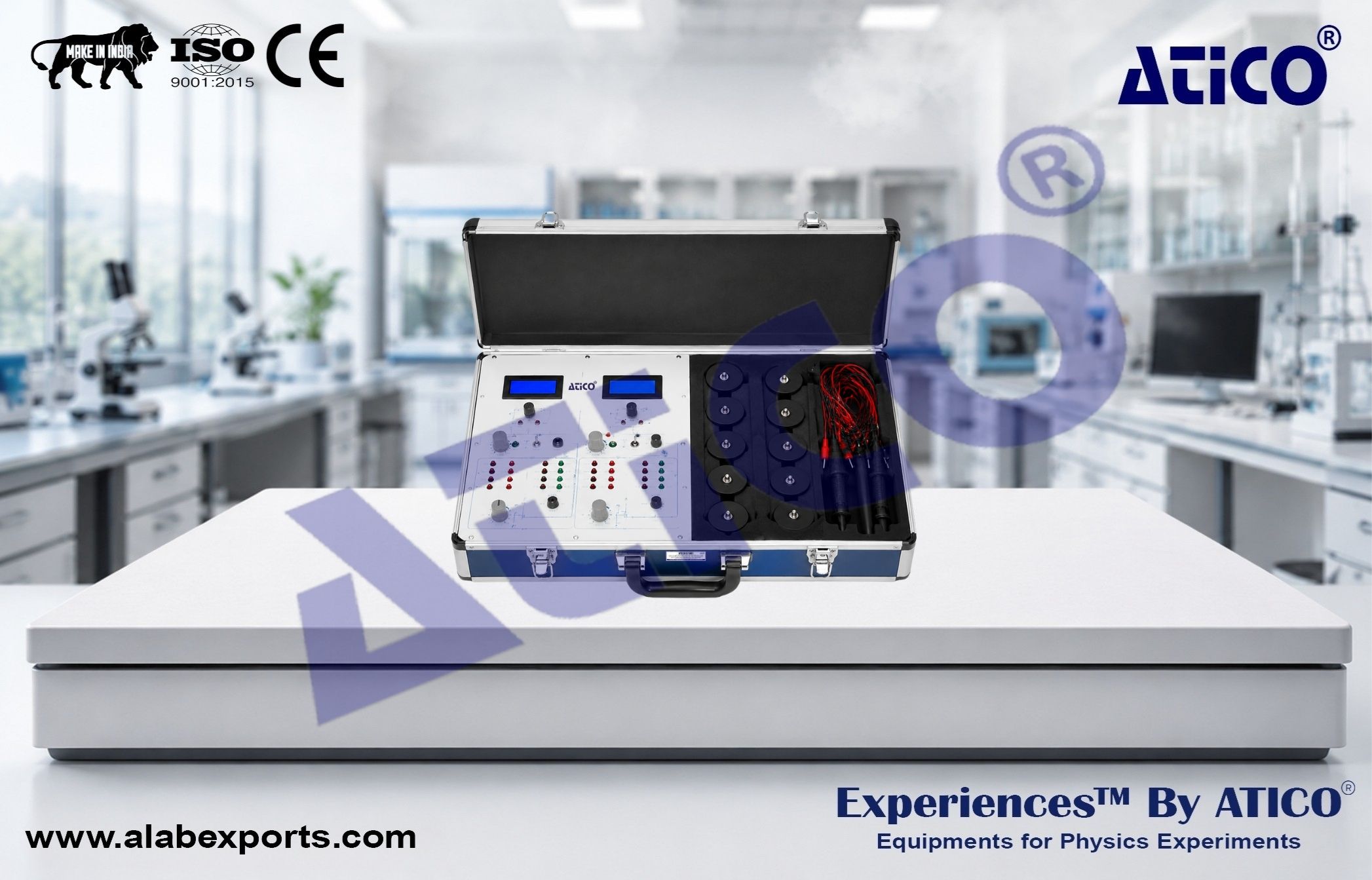

This experiment system is designed for studying the fundamental characteristics of color-sensitive photodiodes. It enables the investigation of important parameters such as photoelectric characteristics, volt-ampere characteristics, and spectral response. Color-sensitive photodiodes are semiconductor light-sensitive devices that operate based on the photoelectric effect, converting optical signals into electrical signals. The system provides a practical platform for understanding the operating principles and applications of color-sensitive photoelectric devices. Its compact design ensures convenient operation and portability.

Manufactured by Atico Export India.

Experimental Principle and Content

• Study of color-sensitive photodiode operating principles
• Investigation of photoelectric conversion characteristics
• Measurement of light response characteristics
• Analysis of volt-ampere characteristics
• Evaluation of spectral response performance
• Understanding the photoelectric effect in semiconductor devices
• Study of optical signal detection and conversion techniques
• Exploration of applications of color-sensitive photodiodes in photoelectric systems

Host :

• Main Chassis Size: 520 mm × 318 mm × 145 mm

Color-Sensitive Photodiode :

• Metal Package
• Point-Contact Structure
• Response Color: Green

Product Weight :

• Approx. 5 kg

Voltmeter :

• 3½-Digit Display
• Four Selectable Ranges: 0–200 mV, 0–20 V, 0–200 V, 0–2000 V

Ammeter :

• 3½-Digit Display
• Four Selectable Ranges: 0–200 μA, 0–2 mA, 0–20 mA, 0–200 mA

Light Source :

• White Light (Brightness 1000–2500)
• Red Light (625–630 nm)
• Orange Light (600–605 nm), etc.

Illuminometer :

• Resolution: 0.1 lx
• Measurement Ranges: 200, 2000, 20000, 50000 Lux
• Sampling Rate: 1.5 Times/Second
