COMBINED BENDING AND TORSION APPARATUS

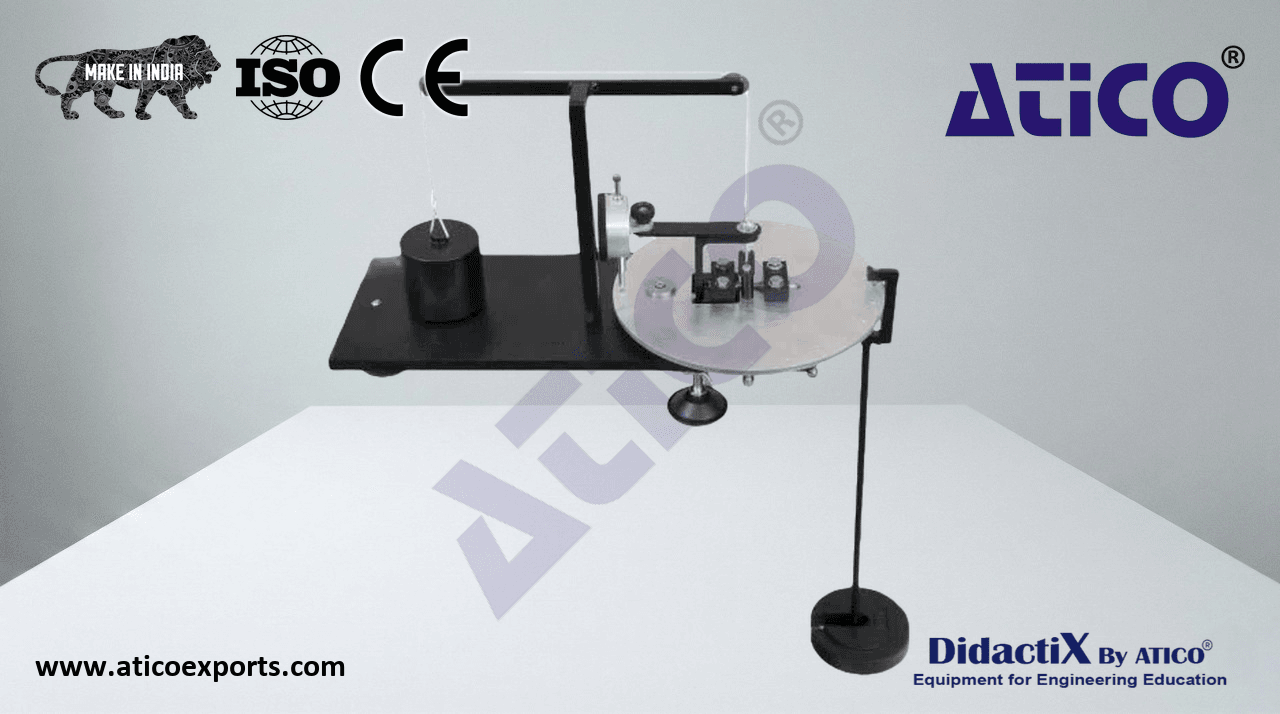

This apparatus is designed to determine what levels of combined bending and torsion cause elastic failure in different materials, and to compare results with various theories of failure. The unit uses specially machined necked specimens made from round bar. The specimen is clamped at one end to the base plate and at the other end to a counterbalanced circular loading plate. Learn about COMBINED BENDING AND TORSION APPARATUS suppliers for optimal educational outcomes.. The loading plate is suspended using a cord and counterbalance to ensure the specimen is unloaded prior to testing. The loading plate is graduated in 15° intervals, each with an indent to locate a special hanger that enables pure bending, pure torque, or combined loads to be applied depending on position. Learn about COMBINED BENDING AND TORSION APPARATUS price for optimal educational outcomes.. Specimen deflection is measured by a dial gauge mounted diametrically opposite the load point. In the event of specimen failure, safety is ensured by set screws attached to the underside of the base plate. Learn about COMBINED BENDING AND TORSION APPARATUS exporters for optimal educational outcomes.. Test specimens in mild steel, aluminium alloy, and brass are supplied, with optional test specimens also available separately. Test rods of the same specimen materials are also supplied so that specimens of differing neck geometry can be produced. Learn about COMBINED BENDING AND TORSION APPARATUS for educational labs for optimal educational outcomes..

• Test specimens: 5 × mild steel, 5 × aluminium alloy, 5 × brass
• Test specimen dimensions: 65mm(L) × 20mm gauge length, Ø4mm neck diameter
• Dial gauge: analogue, 0–25mm travel, 0.01mm resolution
• Loading plate graduations: 15°
• Test rods: mild steel, aluminium alloy, brass — Ø9 × 300(L) mm
