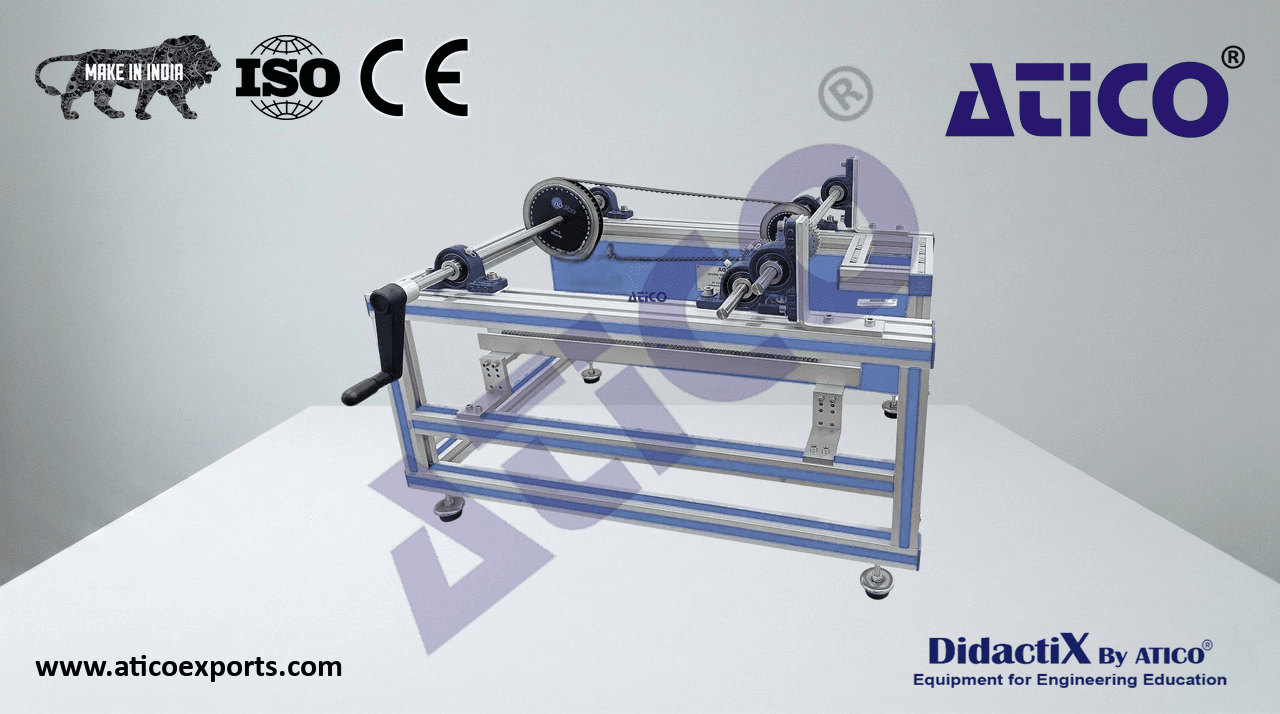

Combined Drives Assembly Unit Deluxe

The Unit to Study Combined Drives Assembly, to carrying out advanced exercises related to the basic essentials of drive technology, basically focusing on practical assembly of the gear elements.

ATENG 12082 — Combined Drives Assembly Unit

Bench-top unit with adjustable legs.

Aluminum carrying case.

Anodized aluminum frame and panels made of painted steel.

Two axles for assembly simple transmissions systems.

• Double belt:
• Toothed belt pulleys:
  Number of teeth z= 30, 32, 48, 60.
• Simple chain:
• Chain sprocket wheels: ATENG 12082 detail
  Number of teeth z= 20, 30.
• Simple spur gears:
  Module m= 2; number of teeth z= 30, 32, 40, 50, 60.
  Module m= 1.5; number of teeth z= 32, 40, 44.
• Bevel gear torque:
  Module m= 2; number of teeth z= 26.
  Angle between shafts 90°.
  Endless screw gear.
  Rack and pinion gear.
  Tool set.
