COMBINED SHEAR FORCE & BENDING MOMENT

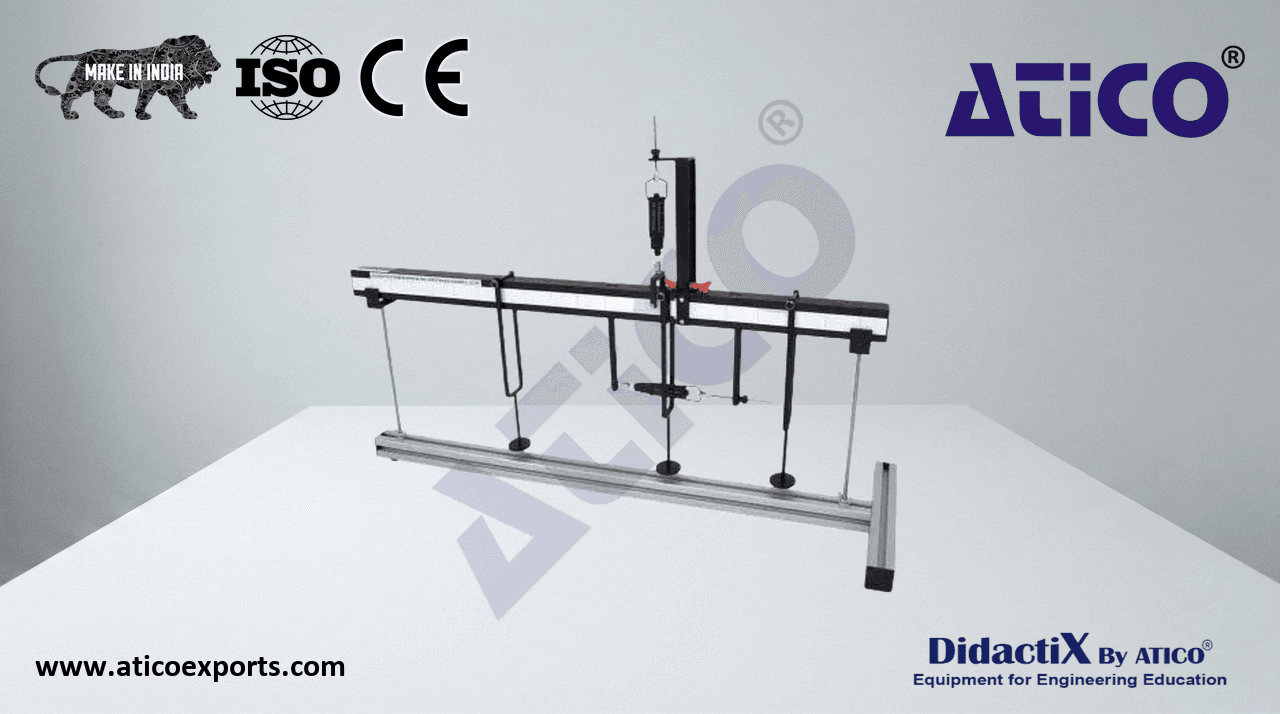

This compact bench top unit allows the observation and analysis of both shear force and bending moment within one unit. A rigid aluminium beam is cut into two unequal lengths, creating a 'cut' section. Each beam is then simply supported on vertical supports. Learn about COMBINED SHEAR FORCE & BENDING MOMENT exporters for optimal educational outcomes.. Each support can be moved along the beam section length creating varied support positions. At the 'cut' section, a deep groove ball bearing in one beam runs within a block in the other beam, allowing both vertical movement (shear) and rotation (bending) to occur. Learn about COMBINED SHEAR FORCE & BENDING MOMENT forces-hfc India for optimal educational outcomes.. The shear force is measured using a vertical analogue spring balance. A second analogue spring balance measures the direct load created at the 'cut' section, and its associated mechanical moment lever arm allows the bending moment to be calculated. Learn about COMBINED SHEAR FORCE & BENDING MOMENT suppliers for optimal educational outcomes.. Special load hangers are provided that fit over the beams and can be positioned accurately along the beam length using the graduated scales attached to the sides. The smooth design of the beam sections allows a wide variety of unrestricted load positions to be used, using the weights set provided. Learn about COMBINED SHEAR FORCE & BENDING MOMENT price for optimal educational outcomes..

• Beam span: 900mm
• Beam cross section: 51 x 38mm
• 50mm graduations on beams
• Weights set: 3 x 2N, 3 x 5N, 3 x 10N
• 3 x Load hanger
• Spring Balance: 0…6kgf range, 0.1kgf resolution
