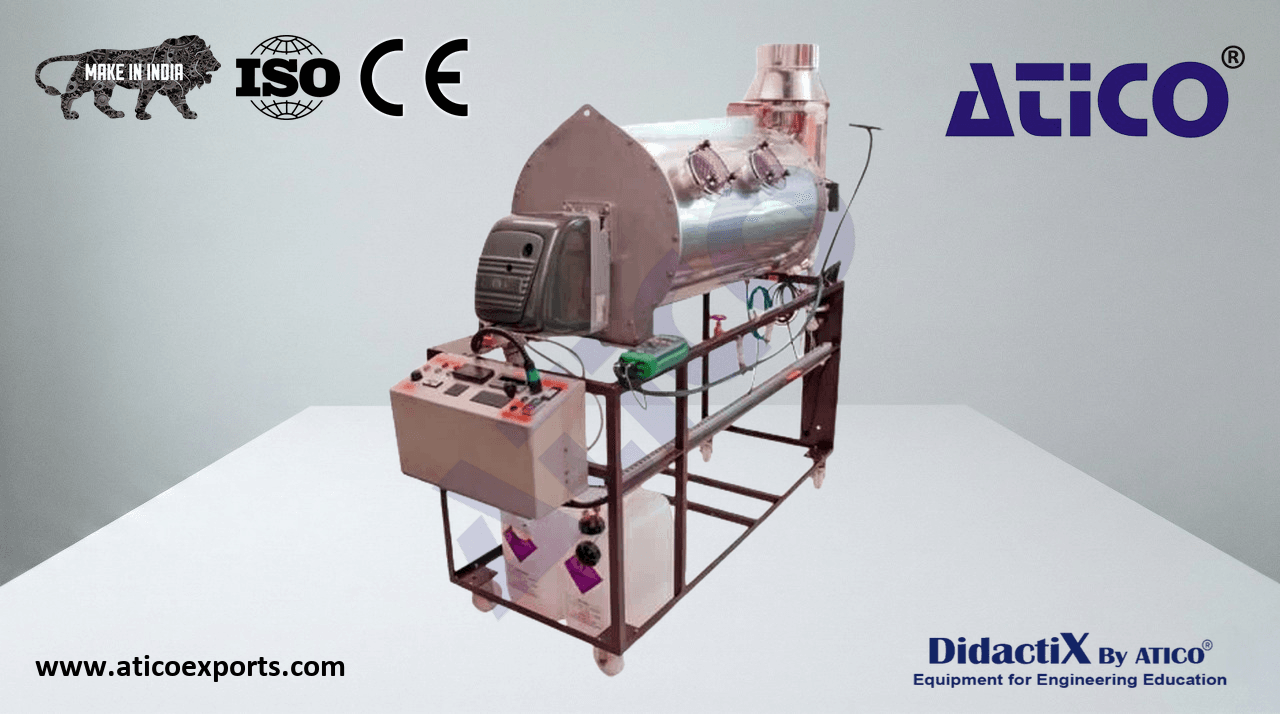

COMBUSTION LABORATORY UNIT - OIL BURNER FITTED Deluxe

This Combustion Laboratory Unit enables students to study many aspects of combustion and burner operation using burners typical of those used commercially. An oil burner is fitted as standard. The unit is frame mounted, is fully instrumented and requires only a conventional single phase electrical supply, cooling water and the chosen fuel. Learn about COMBUSTION LABORATORY UNIT - OIL BURNER FITTED exporters for optimal educational outcomes..

• Frame: Powder coated 25mm mild steel angle frame with 16 swg shelves.
• Chamber: Stainless steel combustion chamber, approximately Ø450mm ID, Ø500mm OD x 1000mm long, with four 100mm quartz glass windows.
• Chamber and end plate water cooled, front plate has 80mm thick insulation and burner mounting studs.
• Oil Burner: Package burner with integral fan and control box. Pressure jet atomisation. Two interchangeable nozzles of 1.5 and 2.2 US gall/hr (5.1 & 7.57 L/hour) working at 8 to 15 Bar (116 to 200 psi) with 60° spray angle, giving heat rates up to 108kW approx. (depending on fuel).
• NOTE: Maximum pressure on Kerosene is 10 Bar.
