Compact assembly station pipes, valves and fittings

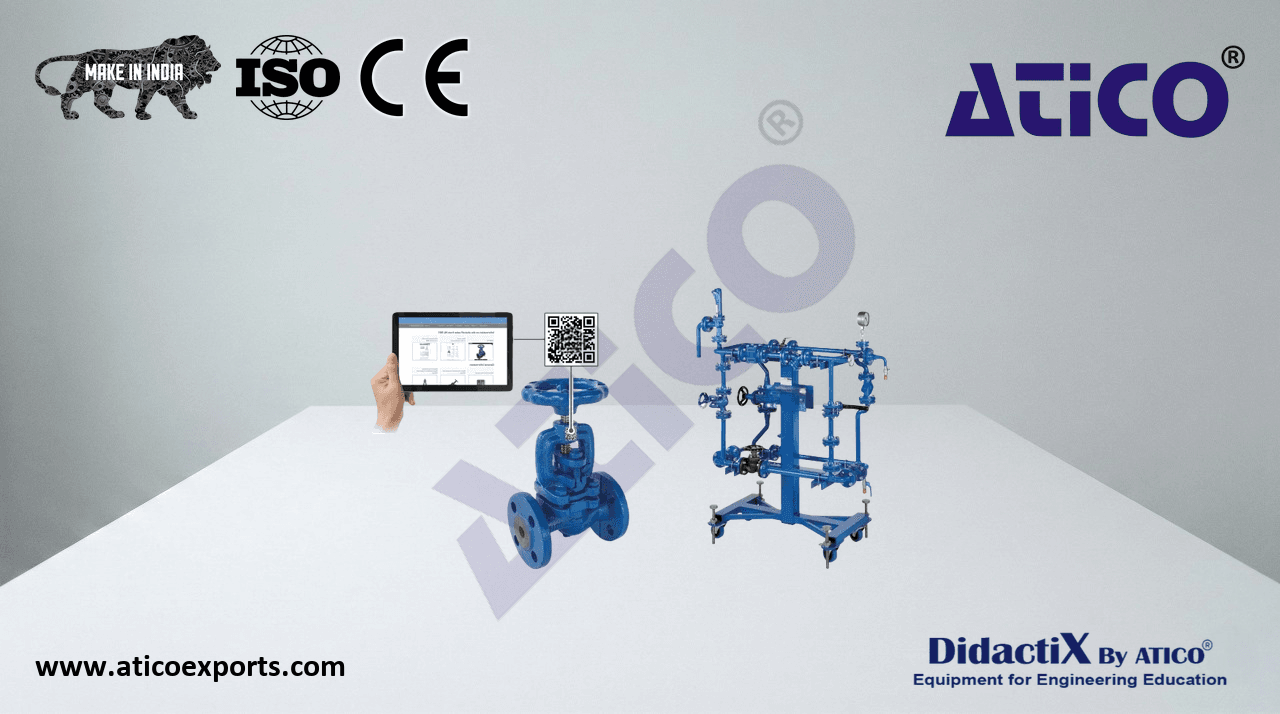

HL 961 is a space-saving exercise and training system which provides an entirely authentic introduction to industrial pipes and valves and fittings. The assembly kit comprises a wide variety of piping elements, valves and fittings, as well as sealing and fastening components.

• assembly exercise for engineering training
• piping network comprising pipe bends, elbows, T-pieces and transitions in nominal widths DN25/DN40
• mobile frame for mounting of pipe network
• pipe connections via flanges
• standard commercially available fittings with flange connections: shut-off valve, diaphragm valve, piston slide valve, ball valve, wedge gate valve, non-return valve, shut-off butterfly valve, safety valve, strainer, sight glass, steam trap
• ball valve for water connection, ball valve for venting
• connection to water supply via hose with coupling
• measuring instruments: manometer, thermometer
• hand pump for leak test
• the kit forms part of the assembly, maintenance and repair practice line
• online access via QR code with digital information on the valves and fittings
