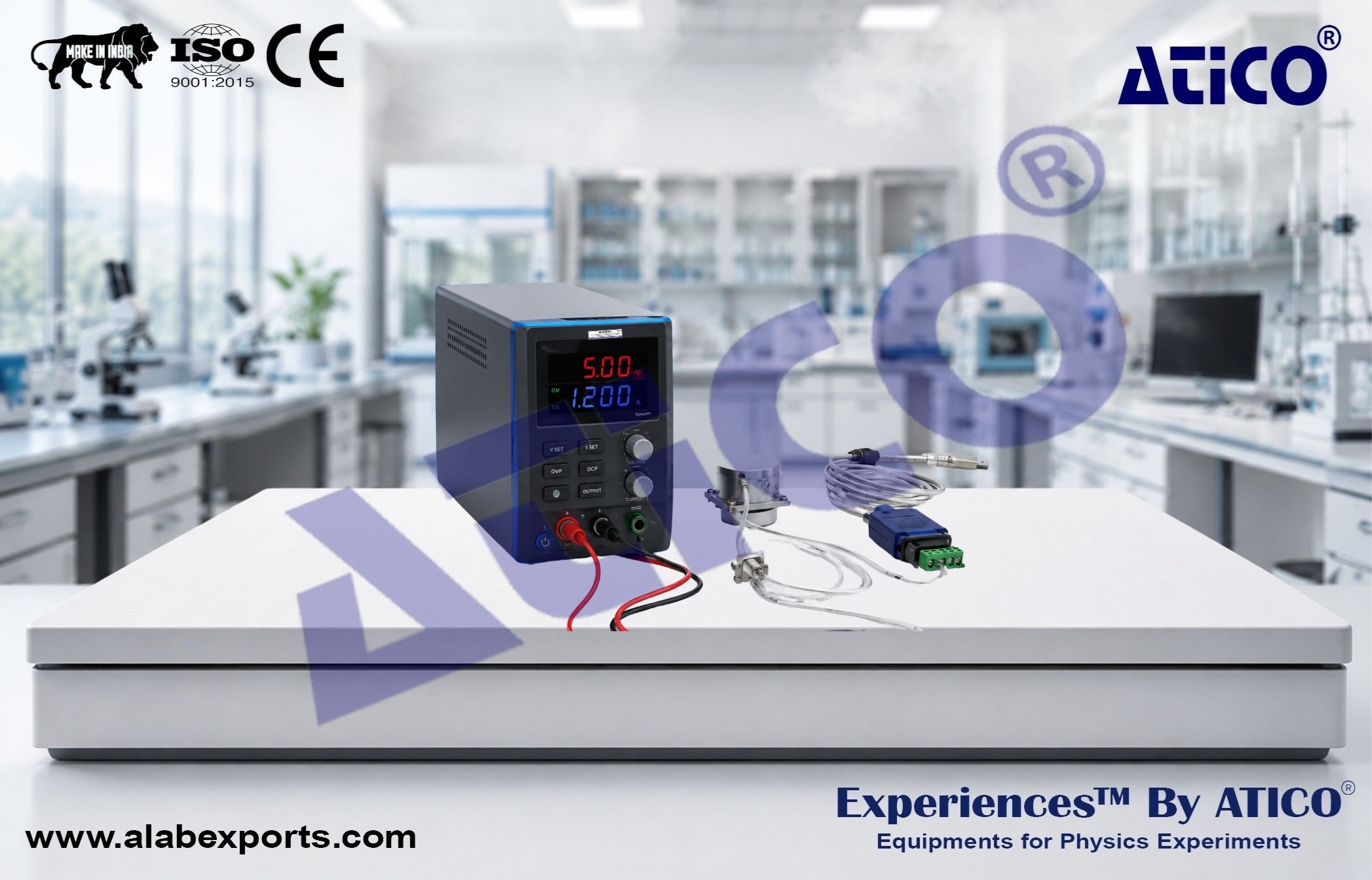

Comprehensive Experiment on Fiber Optic Gyroscope Physics Lab Experiments

This experimental system is designed for the study of fiber optic gyroscope technology and inertial navigation principles. Fiber optic gyroscopes are high-precision rotational sensing devices that determine angular motion by utilizing optical interference effects within a fiber coil.

The system provides a practical platform for understanding the operating principles, performance characteristics, and applications of fiber optic gyroscopes. It is suitable for educational and research activities related to optical sensing, inertial navigation, and precision measurement technologies.

• Inertial navigation studies
• Optical sensing experiments
• Motion and orientation measurement
• Aerospace and aviation education
• Navigation technology research
• Precision instrumentation training

Gyroscope Performance

Zero Bias Stability :

• ≤ 1°/h (1σ)

Zero Bias Repeatability :

• ≤ 1°/h (1σ)

Start-up Time :

• ≤ 1 s

Weight :

• ≤ 120 g

Environmental Specifications

Storage Temperature Range :

• -45°C to +70°C

Power Requirements

Supply Voltage :

• +5 V DC

Voltage Accuracy :

• ±5%

Power Ripple :

• ≤ 20 mV

Maximum Surge Current :

• 1.2 A

Steady-State Power Consumption (Normal Temperature) :

• ≤ 2.5 W

Steady-State Power Consumption (Full Temperature Range) :

• ≤ 3.5 W

• Compact and lightweight design
• Fast system start-up
• High measurement stability
• Reliable repeatability performance
• Suitable for laboratory and educational demonstrations
• Supports studies in optical sensing and inertial measurement technologies
• Fiber optic gyroscope operation
• Optical interference and rotation sensing
• Inertial navigation principles
• Angular velocity measurement
• Precision optical sensing
• Signal acquisition and processing
• Navigation and guidance technologies
• Advanced photonics applications
