Comprehensive Testing and Diagnosis Bench for Hybrid Engine with Braking and Diagnostic Software

The Comprehensive Testing and Diagnosis Unit for Hybrid Engine with Braking and Diagnostic Software, is an advanced unit that enables an in-depth analysis of hybrid engine performance, providing a key solution for education in automotive engineering and sustainable mobility.

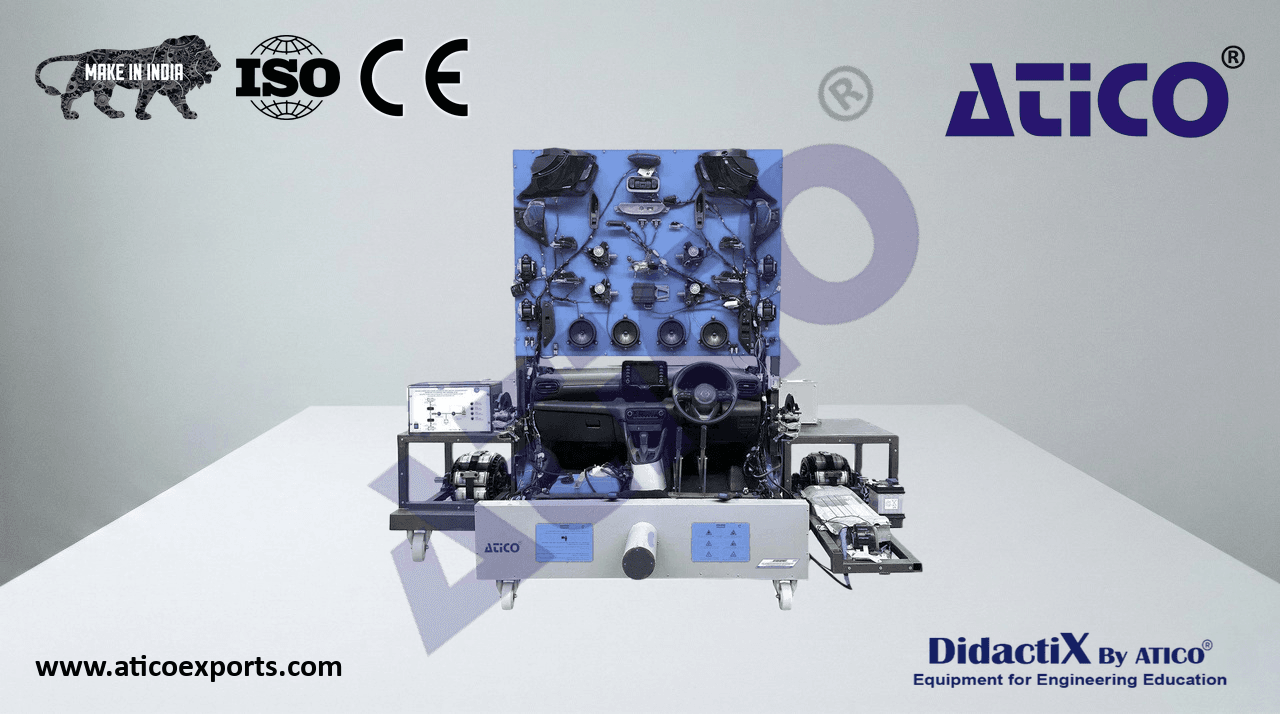

ATENG 12926 — Comprehensive Testing and Diagnosis Bench for Hybrid Engine with Braking and Diagnostic Software

Anodized aluminum frame and panels made of painted steel.

The unit includes wheels to facilitate its mobility.

• Central control panel, housing the main electrical systems of the cabin: power windows, interior
  lighting, door locking systems, seat belts with activation sensors, windshield wiper system.
  Driver and passenger area, with steering wheel, accelerator and brake pedals, gear shift,
  instrument panel, diagnostic system, and fuel tank.
  Internal combustion engine with an electronic injection system and an electric motor assisted by
  a high-voltage hybrid battery.
• Battery block, composed of:
• 12V battery, supplying power to the combustion engine.
  Hybrid battery, responsible for powering the electric motor.
  Original vehicle fuel tank. ATENG 12926 detail
  Cooling system, with an automatic cooling fan that activates when the battery temperature exceeds a predefined threshold.
  Diagnostic interface for monitoring and analyzing fuel consumption, performance, and fault detection.
  Eddy current brakes.
  Sensors and measurement systems with load cells and speed sensors on the steering axle.
  Protected systems for fully safe operation.
  Cables and accessories for normal operation.
