Computer Controlled Aerodynamic Tunnel, 1200X1200 mm

The Computer Controlled Closed Aerodynamic Tunnel, 2000 x 2000 mm, "ATENG 11824", is a wind tunnel designed to study subsonic aerodynamics in a tunnel in closed circuit and with incompressible subsonic flow.

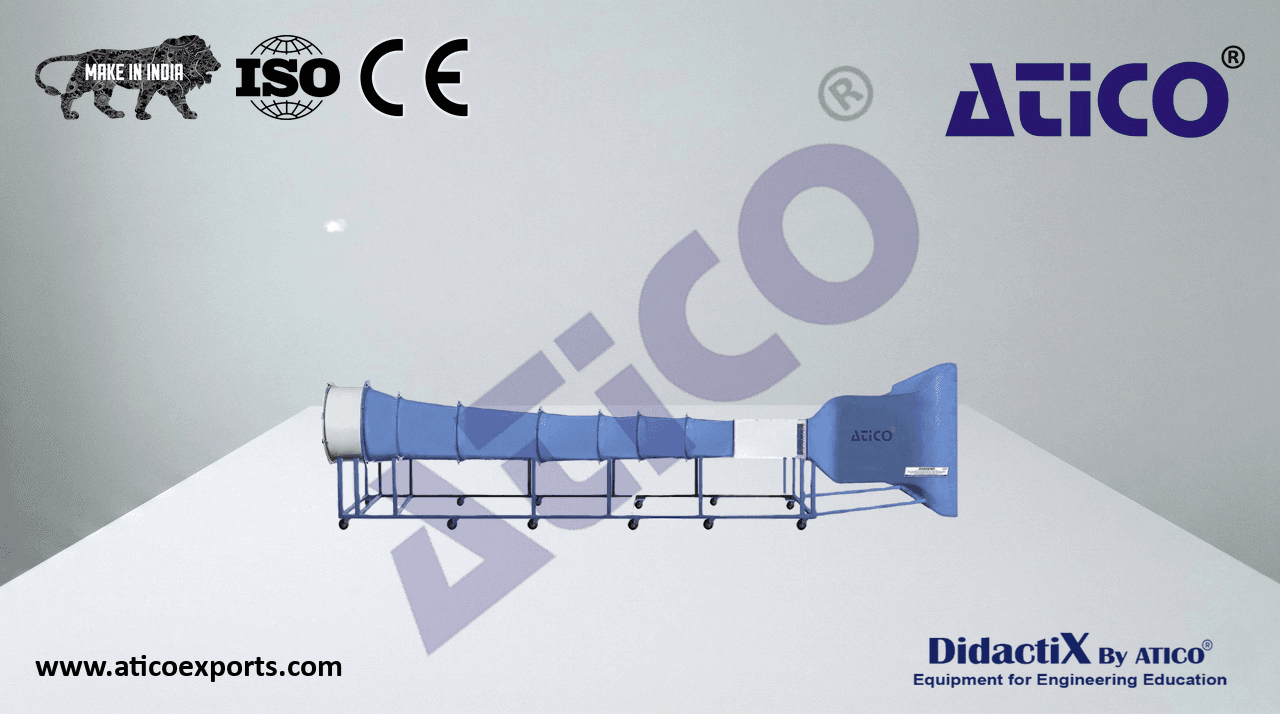

ATENG 11821 — Computer Controlled Aerodynamic Tunnel, 1200X1200 mm

(for main items)

• With this unit there are several options and possibilities:
• Main items: 1, 2, 3, 4, 5 and 6.
• Let us describe first the main items (1 to 6):
• 1 ATENG 11821. Unit:
  Wind tunnel with incompressible subsonic flow.
  Made of high quality material.
  Steel suport frame.
  Panels made of painted steel.
  Diagram in the front panel with distribution of the elements
  similar to the real one.
• Transparent working area of 1200 x 1200 mm to assemble
• Unit: ATENG 11821
  and test the different models.
  The working area includes a Pitot tube mounted in the top side to measure the air speed.
  Outlet section with diffuser which allows the intensity of turbulences to be low (< 1).
• Variable speed axial flow fan, computer controlled:
• Maximum air velocity in the working area: 40 m/s (other speeds available on request).
  Flow uniformity.
  Different pressure tappings.
  Differential pressure sensors.
  Several models and scale accessories are available, allowing a comprehensive study of subsonic aerodynamics.
• The complete unit includes as well:
  Advanced Real-Time SCADA.
  Open Control + Multicontrol + Real-Time Control.
  Specialized Control Software based on LabVIEW.
  National Instruments Data Acquisition board (250 KS/s, kilo samples per second).
  Calibration exercises, which are included, teach the user how to calibrate a sensor and the
  importance of checking the accuracy of the sensors before taking measurements.
  Projector and/or electronic whiteboard compatibility allows the unit to be explained and
  demonstrated to an entire class at one time.
  Capable of doing applied research, real industrial simulation, training courses, etc.
  Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).
  Designed and manufactured under several quality standards.
