Computer Controlled Aerodynamic Tunnel, 610X915 mm

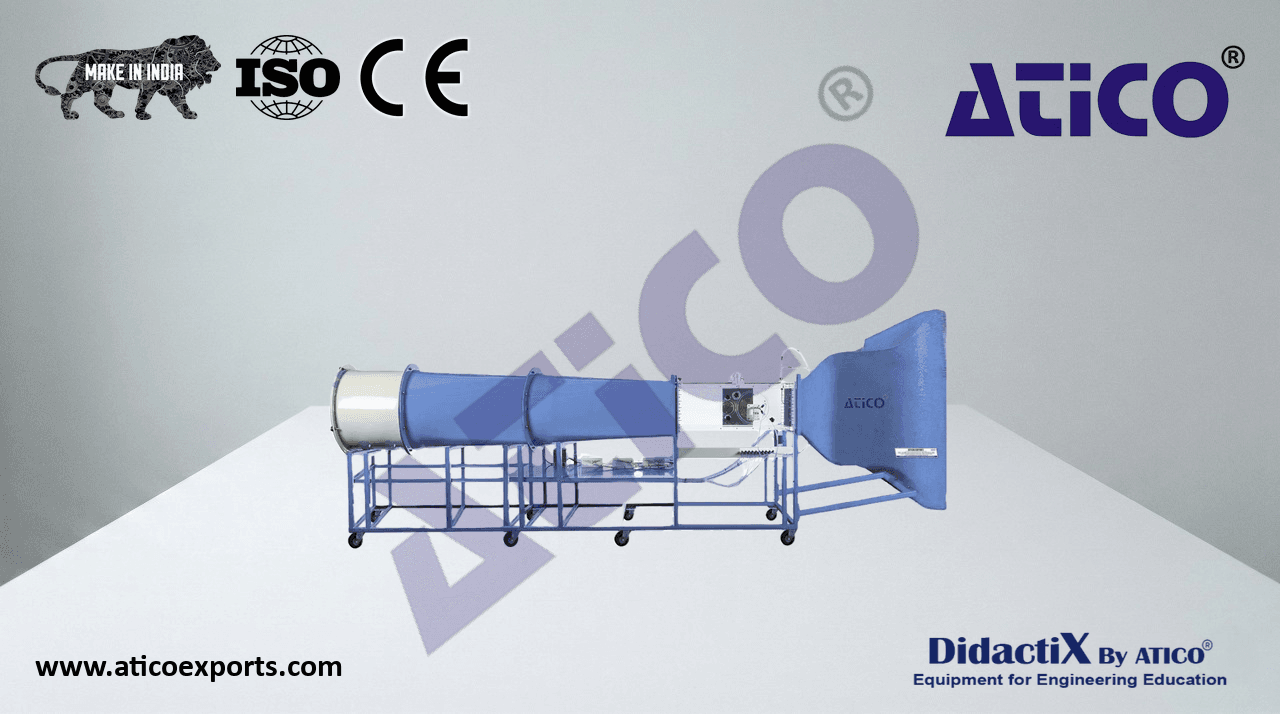

The Computer Controlled Aerodynamic Tunnel, 610 x 915 mm, is a wind tunnel designed to study subsonic aerodynamics in a tunnel in open circuit and with incompressible subsonic flow.

ATENG 11818 — Computer Controlled Aerodynamic Tunnel, 610X915 mm

(for main items)

• With this unit there are several options and possibilities:
• Main items: 1, 2, 3, 4, 5 and 6.
• Let us describe first the main items (1 to 6):
• 1 ATENG 11818. Unit:
  Wind tunnel with incompressible subsonic flow.
  Made of high quality material.
  Steel suport frame.
  Panels made of painted steel.
  Diagram in the front panel with distribution of the elements
  similar to the real one.
• Transparent working area of 610 x 915 mm to assemble and
  test the different models.
  The working area includes a Pitot tube mounted in the top side
• to measure the air speed. Unit: ATENG 11818
  Outlet section with diffuser which allows the intensity of turbulences to be low (< 1).
• Variable speed axial flow fan, computer controlled:
• Maximum air velocity in the working area: 40 m/s (other speeds available on request).
  Flow uniformity.
  Different pressure tappings.
  Differential pressure sensors.
  Several models and scale accessories are available, allowing a comprehensive study of subsonic
  aerodynamics.
• The complete unit includes as well:
  Advanced Real-Time SCADA.
  Open Control + Multicontrol + Real-Time Control.
  Specialized Control Software based on LabVIEW.
  National Instruments Data Acquisition board (250 KS/s, kilo samples per second).
  Calibration exercises, which are included, teach the user how to calibrate a sensor and the
  importance of checking the accuracy of the sensors before taking measurements.
  Projector and/or electronic whiteboard compatibility allows the unit to be explained and
  demonstrated to an entire class at one time.
  Capable of doing applied research, real industrial simulation, training courses, etc.
  Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).
  Designed and manufactured under several quality standards.
