Computer Controlled Automotive Hybrid Simulation Unit

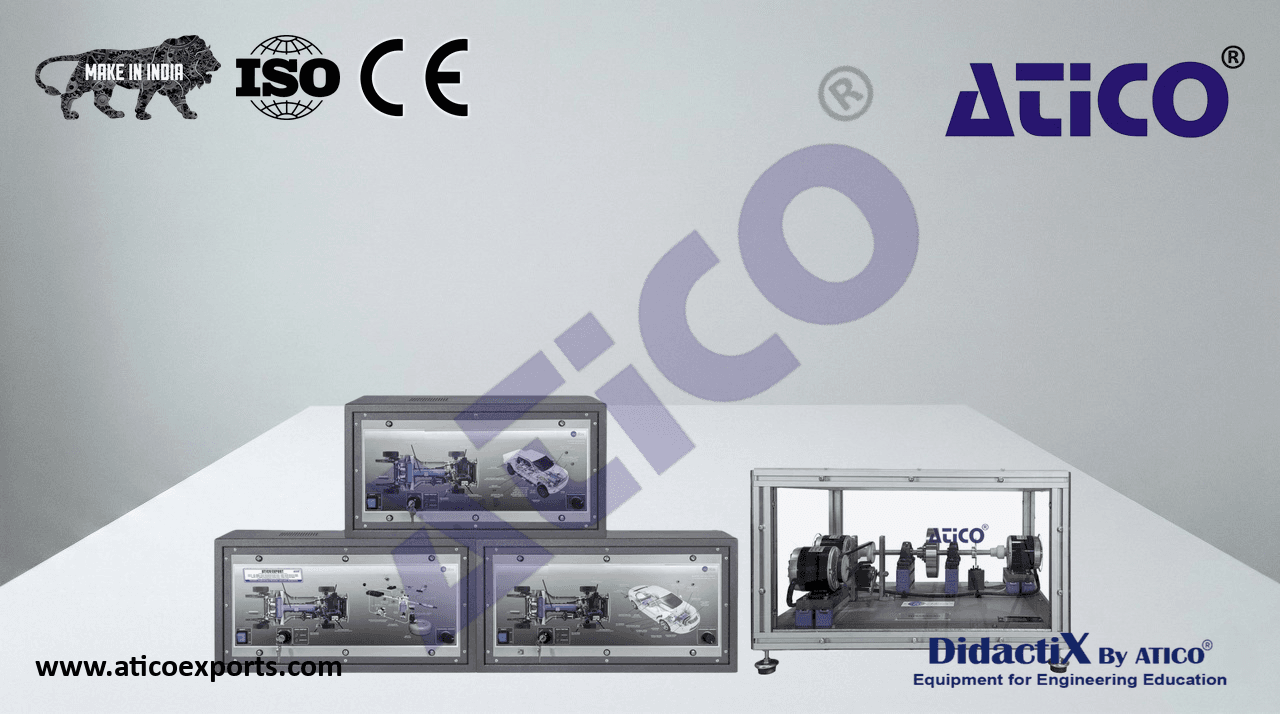

The Computer Controlled Automotive Hybrid Simulation Unit, to study and analyze the operation of the hybrid vehicle through the different forms of combination of the energy sources it uses.

ATENG 11408 — Computer Controlled Automotive Hybrid Simulation Unit

(for main items)

• With this unit there are several options and possibilities:
• Main items: 1, 2, 3, 4 and 5.
• Optional items: 6, 7 and 8.
• Let us describe first the main items (1 to 5):
• 1 ATENG 11408 Unit:
• Hybrid Vehicle Panel with Gasoline-Electric Engine:
• Single-phase supply voltage: 230 / 110 VAC.
  Lamps to indicate the operating status of the vehicle.
  Switches for the simulation of the different operating processes of the vehicle.
  Protection fuses.
  Terminals to measure the battery voltages.
  Diagram of Hybrid Vehicle with Gasoline-Electric Engine in the front panel.
• Hybrid Vehicle with LPG Engine Panel:
• Single-phase supply voltage: 230 / 110 VAC.
  Lamps to indicate the operating status of the vehicle.
  Switches for the simulation of the different operating processes of the vehicle.
  Protection fuses.
  Terminals to measure the battery voltages.
  Diagram of Hybrid Vehicle with LPG Engine in the front panel.
• Panel of Hybrid Vehicle with Biofuel Engine:
• Single-phase supply voltage: 230 / 110 VAC.
  Lamps to indicate the operating status of the vehicle.
  Switches for the simulation of the different operating processes of the vehicle.
  Protection fuses.
  Terminals to measure the battery voltages.
  Diagram of Hybrid Vehicle with Biofuel Engine in the front panel.
• The complete unit includes as well:
  Advanced Real-Time SCADA.
  Open Control + Multicontrol + Real-Time Control.
  Specialized Control Software based on LabVIEW.
  National Instruments Data Acquisition board (250 KS/s, kilo samples per second).
  Calibration exercises, which are included, teach the user how to calibrate a sensor and the
  importance of checking the accuracy of the sensors before taking measurements.
  Projector and/or electronic whiteboard compatibility allows the unit to be explained and
  demonstrated to an entire class at one time.
  Capable of doing applied research, real industrial simulation, training courses, etc.
  Remote operation and control by the user and remote control for technical support,
  are always included.
  Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).
  Designed and manufactured under several quality standards.
  Optional ICAI software to create, edit and carry out practical exercises, tests, exams,
  calculations, etc. Apart from monitoring user's knowledge and progress reached.
  This unit has been designed for future expansion and integration. A common expansion is
  the Scada-Net (ESN) System which enables multiple students to simultaneously
  operate many units in a network.
  3

Complete Technical Specifications (for main items)

• DAB. Data Acquisition Board:
  The Data Acquisition board is part of the SCADA system.
  PCI Express Data acquisition board (National Instruments) to be placed in a computer slot. Bus
  PCI Express.
• Analog input:
  Number of channels= 16 single-ended or 8 differential. Resolution=16 bits, 1 in 65536.
• Sampling rate up to: 250 KS/s (kilo samples per second).
• Input range (V)=±10 V. Data transfers=DMA, interrupts, programmed I/0. DMA channels=6.
• Analog output:
  Number of channels=2. Resolution=16 bits, 1 in 65536.
• Maximum output rate up to: 900 KS/s.
• Output range (V)=±10 V. Data transfers=DMA, interrupts, programmed I/0. DAB
• Digital Input/Output:
• Number of channels=24 inputs/outputs. D0 or DI Sample Clock frequency: 0 to 100 MHz.
• Timing: Number of Counter/timers=4. Resolution: Counter/timers: 32 bits.
  The Data Acquisition board model may change at any moment, providing the same or better
  features than those required for the unit.
• 3 AV-HYB/CCSOF. Computer Control + Data Acquisition + Data Management Software:
  The three softwares are part of the SCADA system.
  Compatible with actual Windows operating systems. Graphic and intuitive simulation of the process in
  screen. Compatible with the industry standards.
  Registration and visualization of all process variables in an automatic and simultaneous way.
  Flexible, open and multicontrol software, developed with actual windows graphic systems, acting
  simultaneously on all process parameters.
  Management, processing, comparison and storage of data.
  Sampling velocity up to 250 KS/s (kilo samples per second).
  Calibration system for the sensors involved in the process.
  It allows the registration of the alarms state and the graphic representation in real time.
  Comparative analysis of the obtained data, after the process and modification of the conditions during
  the process. AV-HYB/CCSOF
  Open software, allowing the teacher to modify texts, instructions. Teacher’s and student’s
  passwords to facilitate the teacher’s control on the student, and allowing the access to different work
  levels.
  This unit allows the 30 students of the classroom to visualize simultaneously all the results
  and the manipulation of the unit, during the process, by using a projector or an electronic
  whiteboard.
  5 Cables and Accessories, for normal operation.
• 6Manuals:
• This unit is supplied with 6 manuals: Required services, Assembly and Installation, Control software,
  Starting-up, Safety, Maintenance & Practices manuals.
• References 1 to 5 are the main items: ATENG 11408 + DAB + AV-HYB/CCSOF + Cables and Accessories + Manuals are included in the
  minimum supply for enabling normal and full operation.
  4
