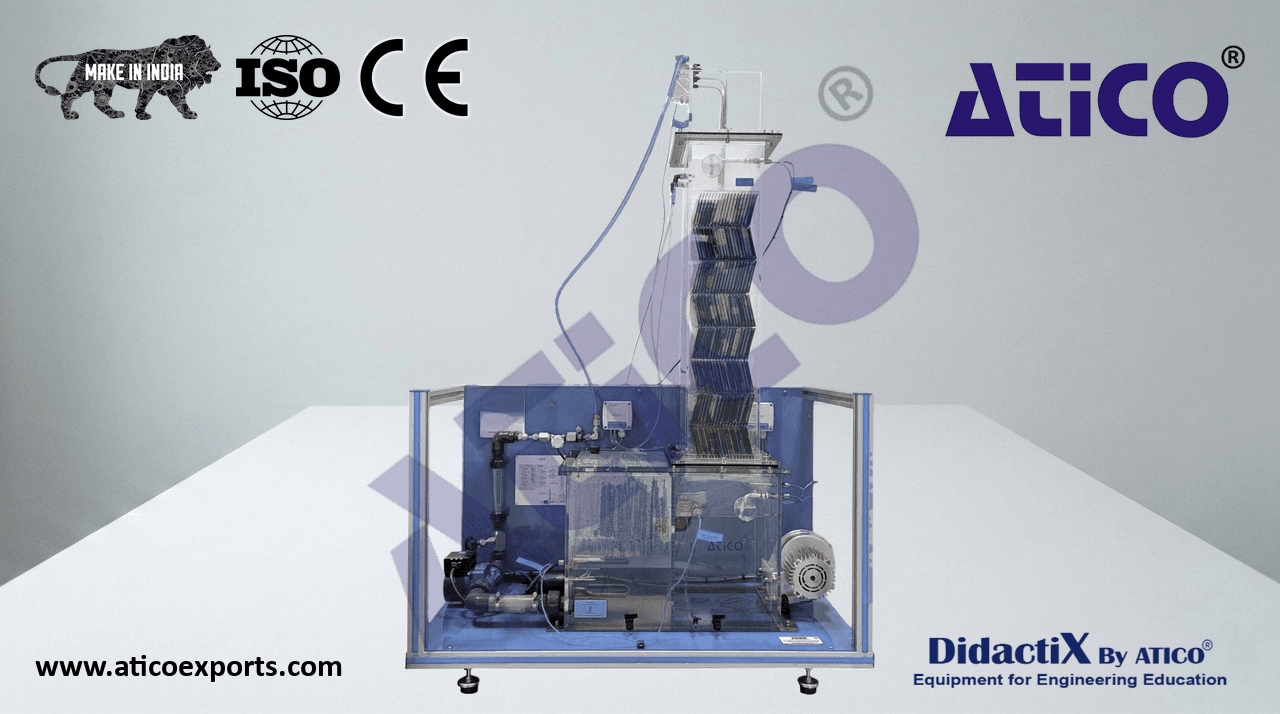

Computer Controlled Bench Top Cooling Tower

The Computer Controlled Bench Top Cooling Tower, to offer the students the opportunity of exploring the design, construction and operating characteristics of a modern water evaporation cooling system.

ATENG 12748 — Computer Controlled Bench Top Cooling Tower

(for main items)

• With this unit there are several options and possibilities:
• Main items: 1, 2, 3, 4, 5 and 6.
• Optional items: 7, 8, 9, 10 and 11.
• Let us describe first the main items (1 to 6):
• 1TTEC. Unit:
  Bench-top unit.
  Anodized aluminum frame and panels made of painted steel.
  Main metallic elements made of stainless steel.
  Diagram in the front panel with distribution of the elements similar to the real one.
• Water propeller pump, computer controlled, maximum flow of water: 120 l/h.
• Air propeller with a fan with speed computer controlled: 145 m³/h max, 3000 rpm.
• Heating element, computer controlled: 60 °C max.
• Water tank, capacity: 14 l.
  Level switch in the tank.
• Flow sensor, range: 0.25 – 6.5 l/min.
• Two differential pressure sensors, range: 0 – 1” H O.
  Up to sixteen temperature sensors type “J” (of wet bulb, dry bulb and water
  ₂
  temperature), according to the column supplied.
• It included an optional column type B:
• N° of levels: 8. N° of sheets by level: 10. Total surface: 1.013 m². Height of
• packaging: 650 mm. Density area/volume: 58 m²/m³.
• The complete unit includes as well:
• Unit: ATENG 12748
  Advanced Real-Time SCADA and PID Control.
  Open Control + Multicontrol + Real-Time Control.
  Specialized Control Software based on LabVIEW.
  National Instruments Data Acquisition board (250 KS/s, kilo samples per second).
  Calibration exercises, which are included, teach the user how to calibrate a sensor and the
  importance of checking the accuracy of the sensors before taking measurements.
  Projector and/or electronic whiteboard compatibility allows the unit to be explained and
  demonstrated to an entire class at one time.
  Capable of doing applied research, real industrial simulation, training courses, etc.
  Remote operation and control by the user and remote control for technical support,
  are always included.
  Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).
  Designed and manufactured under several quality standards.
  Optional ICAI software to create, edit and carry out practical exercises, tests, exams,
  calculations, etc. Apart from monitoring user's knowledge and progress reached.
  This unit has been designed for future expansion and integration. A common expansion is
  the Scada-Net (ESN) System which enables multiple students to simultaneously
  operate many units in a network.
