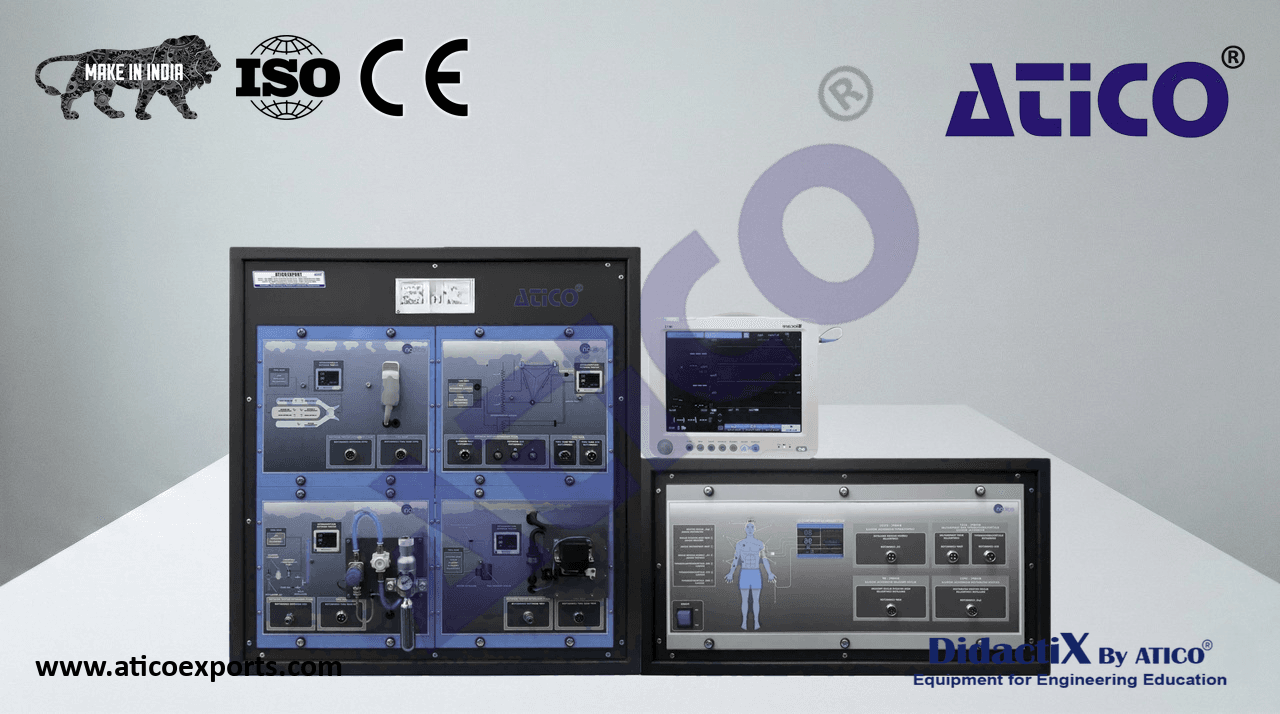

Computer Controlled Biomedical Parameters and Biosignals Unit

The Computer Controlled Biomedical Human Biosignals and Parameters Teaching Unit, allows the students to learn how to interpret and perform the most important biosignal measurements: Electrocardiography (ECG), Pulse oximetry (SpO₂), Blood Pressure (BP) and Capnography (etCO₂).

ATENG 10760 — Computer Controlled Biomedical Parameters and Biosignals Unit

(for main items)

• With this unit there are several options and possibilities:
• Main items: 1, 2, 3,4 and 5.
• Optional items: 6, 7 and 8.
• Let us describe first the main items (1 to 5):
• 1BIHBPC-UB. ATENG 10760 Unit Base:
• BIHBPC-UC. Control Unit for ATENG 10760.
  The base unit (ATENG 10760 module) generates the control signals that will regulate the actuators of
  the rest of modules.
• This module includes:
  Connector for the BIHBPC-ECGT module (ECG).
  Connector for the BIHBPC-ECGT module (Temp).
  Connector for the BIHBPC-SPO2 module.
  Connector for the BIHBPC-ETCO2 unit.
  Connector for the BIHBPC-NIBP module.
  BIHBPC-UC
  ON / OFF switch.
• BIHBPC-ECGT. Electrocardiography and Temperature Biomedical Module.
  Three-lead EGC output.
• Heart rate range: 30 – 145 bpm.
• Cardiovascular diseases: atrial fibrillation, atrial flutter, asystole, first, second and third degree
  atrioventricular block, right and left bundle branch block, ectopic heartbeat, hyperkalemia,
  idioventricular rhythm, left ventricular hypertrophy, pacemakers, ST segment elevation, ischemia,
  torsades de pointes, ventricular fibrillation, ventricular arrest and ventricular tachycardia.
• Temperature range: 25 – 43.5 °C.
  BIHBPC-ECGT
• Required elements to operate with “BIHBPC-UB” unit (Not included):
• BI-PM. Biosignals Patient Monitor.
• Input voltage (AC): 100 – 240 V, 50 Hz / 60 Hz.
  12.1” TFT-LCD screen.
• ECG monitoring:
  Three-lead ECG input.
• Selectable leads: I, II, III.
• Heart rate range: 15 – 300 ppm (adults) and 15 – 350 ppm (children and newborns).
  BI-PM
• Respiratory monitoring:
• Measuring method: thoracic impedance.
• Selectable leads: I, II.
• Respiratory impedance range: 0.5 – 3 Ω.
• Monitoring range: 0 – 120 rpm (adults) and 0 – 150 rpm (children and newborns).
• Resolution: 1 rpm.
• SpO monitoring:
• Monitoring parameters: SpO and pulse rate.
• Sp₂O range: 1 – 100 %.
• Pulse rate range: 25 – 250 p₂p m.
• Reso₂lution: 1 %.
• Red light wavelength: 658 – 664 nm.
• Infrared light wavelength: 897 – 915 nm.
• NIBP monitoring:
• Measuring method: automatic oscillometric method.
• Working modes: manual, auto, STAT.
• Monitoring range:
• Systolic pressure: 41 – 270 mmHg (adults), 40 – 200 mmHg (children) and 40 – 135
  mmHg (newborns).
• Average pressure: 20 – 230 mmHg (adults), 20 – 165 mmHg (children) and 20 – 110
  mmHg (newborns).
• Diastolic pressure: 10 – 210 mmHg (adults), 10 – 150 mmHg (children) and 10 – 100
  mmHg (newborns).
• Resolution: 1 mmHg.
• Temperature monitoring:
• Range: 0 – 50 °C.
• Measuring method: thermal resistance method.
• Resolution: 1 °C.
• CO monitoring (only included if BIHBPC-ETCO2 unit is purchased):
• Type: lateral flow.
• M₂easuring method: absorption of infrared radiation.
• Preheating time: 2 min.
• Range: 0 – 19.7 % (0 – 150 mmHg).
• Resolution: 0.1 mmHg (0 – 69 mmHg), 0.25 mmHg (70 – 150 mmHg).
  4

Complete Technical Specifications (for main items)
