Computer Controlled Flow Channels (section: 80X300 mm)

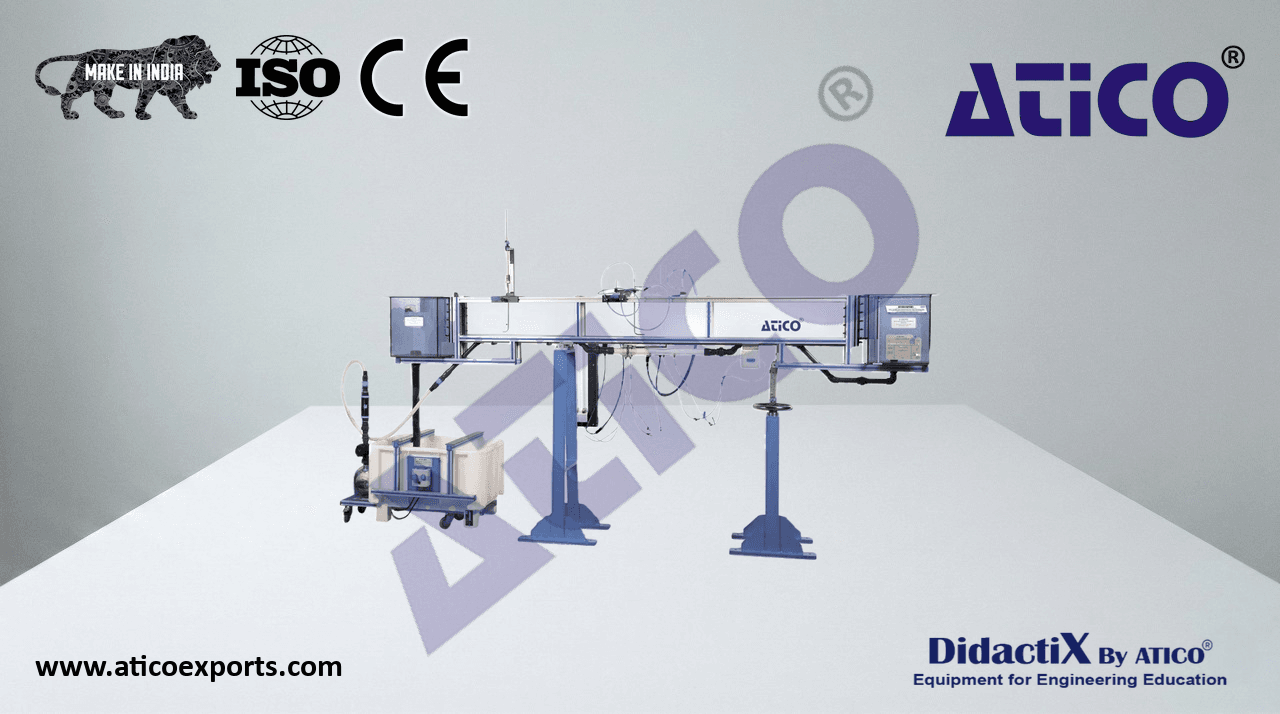

Channel, through which water flows, of rectangular section with transparent walls that enable to observe all the experiments.

ATENG 11795 — Computer Controlled Flow Channels (section: 80X300 mm)

• 1. ATENG 11795 unit:
     Anodized aluminum frame and panels made of painted
     steel.
     Main metallic elements made of stainless steel.
     Diagram in the front panel with distribution of the
     elements similar to the real one.
     Channel of rectangular section with transparent walls,
     formed by methacrylate transparent sections.

INSTRUMENTATION

The channel is assembled on supports, with a system to control the

inclination of the channel.

• Adjustable channel inclination, range: 0 – 3 %.

• Inlet tank (capacity: 38 l), with stilling of flow and with drain valve.

• Reception tank (capacity: 38 l), with drain valve.
  Pipes.
  Orifice plate flow sensor.
  Venturi type flow sensor.
  Differential pressure sensor (included in CFTPC).
  Displacement sensor (included in CFRMC).

• INCLUDED ELEMENTS: ATENG 12037. BASIC HYDRAULIC FEED SYSTEM.

• Storage tank (capacity: 140 l approx.).

• Impulsion pump, with speed regulation, computer controlled:

• Single-phase, 200 VAC – 240 VAC/50 Hz or 110 VAC – 127 VAC/60 Hz.
  0.37 KW.

• 2800 rpm.
  30 – 80 l/min. at 20.1 – 12.8 m.
  Safety switch ON/OFF.
  Flow control valve.
  Flow sensor.

• Available versions to choose:

• CFC80/2. Computer Controlled Flow Channel (section: 80 x 300 mm), length: 2.5 m.

• CFC80/5. Computer Controlled Flow Channel (section: 80 x 300 mm), length: 5 m.

• ATENG 11795 Computer Controlled Flow Channels (section: 80 x 300 mm)
