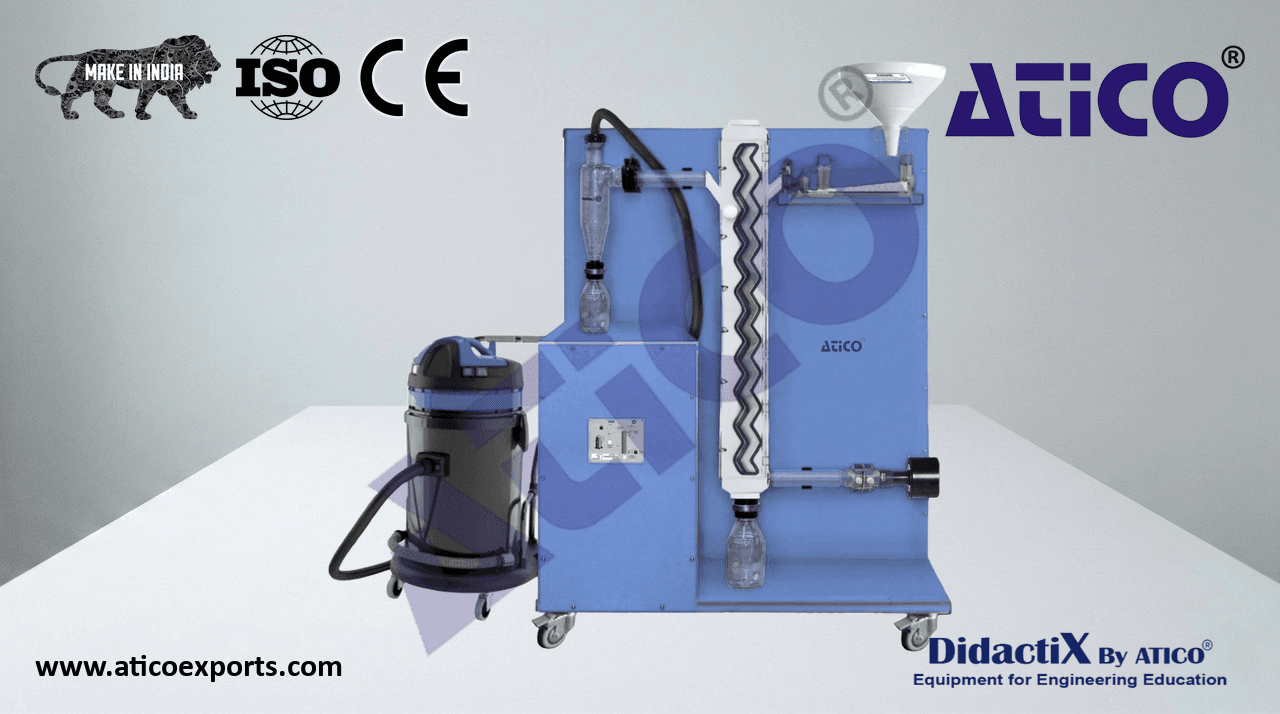

Computer Controlled Gas Flow Classification Unit Deluxe

The Computer Controlled Gas Flow Classification Unit, is intended to separate solid material mixtures depending on the size of the components through a zigzag gravity classifier. When the process is complete, thin and coarse materials are separated in two different tanks.

ATENG 11653 — Computer Controlled Gas Flow Classification Unit

(for main items)

• With this unit there are several options and possibilities:
• Main items: 1, 2, 3, 4, 5 and 6.
• Optional items: 7, 8, 9, 10 and 11.
• Let us describe first the main items (1 to 6):
• 1 ATENG 11653. Unit:
  Anodized aluminum frame and panels made of painted steel.
  It includes wheels to facilitate its mobility.
  Main metallic elements made of stainless steel.
  Diagram in the front panel with distribution of the elements similar
  to the real one.
• Zigzag gravity classifier:
• Approximate height: 1500 mm.
• Area of the section: 40 x 50 mm.
  Twenty bends to facilitate separation.
  Computer controlled hopper with vibrating trough to pour the feed
• material:
• Hopper capacity: 5 Kg.
• Maximum mass flow: 50 Kg/h.
• Adjustable vibration frequency: 3000 min-1 max.
• Cyclone separator:
• Height: 575 mm.
• Diameter: 160 mm.
• Computer controlled variable speed fan:
• Maximum flow: 600 m³/h.
• Two tanks to store the thin and coarse material. Capacity: 2 l.
• Unit: ATENG 11653
  Control valves.
  Filter at the air inlet to improve the quality of the flow entering the conduit.
  Activated carbon included as feed material.
  Tank and shovel for the activated carbon.
• Measuring devices:
• Flow sensor at the clean air inlet. Range: 10 – 300 m³/h.
• Differential pressure sensor between the air inlet and outlet of the cyclone. Range: 0 – 100 mbar.
• Differential pressure sensor between the two outlets of the separation column. Range: 0 – 100 mbar.
• The complete unit includes as well:
  Advanced Real-Time SCADA.
  Open Control + Multicontrol + Real-Time Control.
  Specialized Control Software based on LabVIEW.
  National Instruments Data Acquisition board (250 KS/s, kilo samples per second).
  Calibration exercises, which are included, teach the user how to calibrate a sensor and the
  importance of checking the accuracy of the sensors before taking measurements.
  Projector and/or electronic whiteboard compatibility allows the unit to be explained and
  demonstrated to an entire class at one time.
  Capable of doing applied research, real industrial simulation, training courses, etc.
  Remote operation and control by the user, as well as remote support from technical
  support, are always included.
  Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).
  Designed and manufactured under several quality standards.
  Optional ICAI software to create, edit and carry out practical exercises, tests, exams,
  calculations, etc. Apart from monitoring user's knowledge and progress reached.
  This unit has been designed for future expansion and integration. A common expansion is
  the Scada-Net (ESN) System which enables multiple students to simultaneously
  operate many units in a network.
