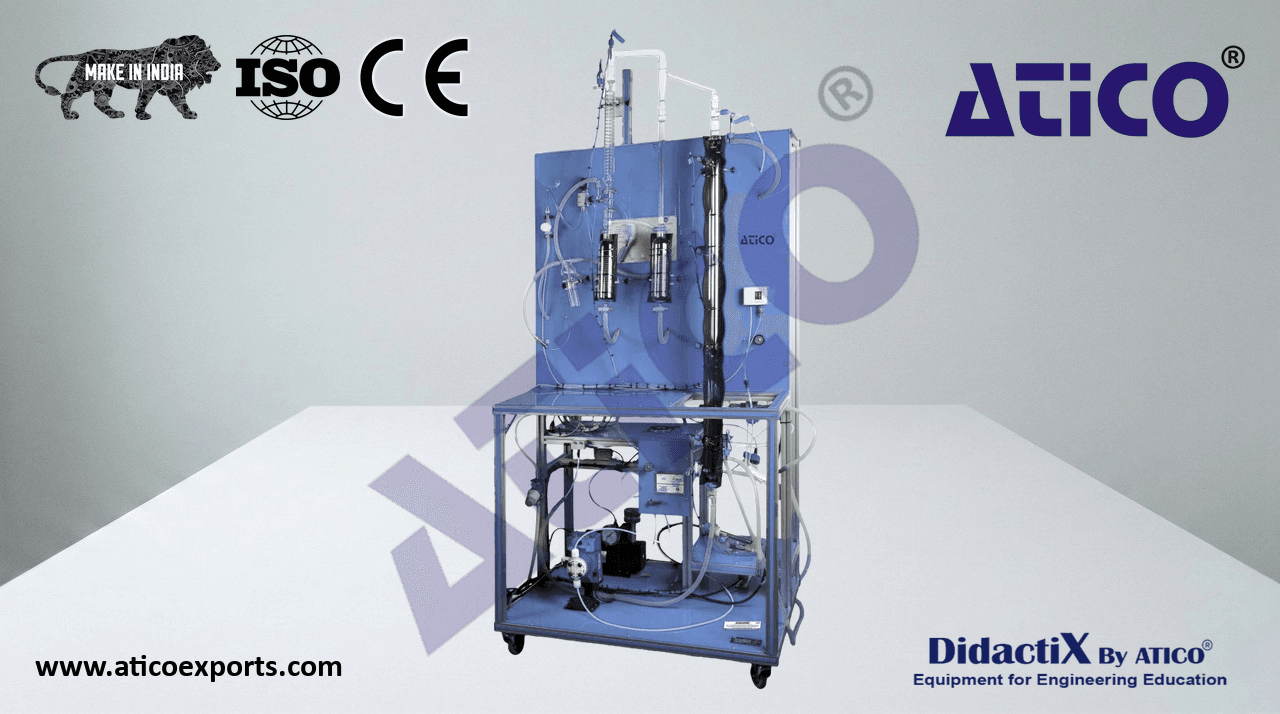

Computer Controlled Rising Film Evaporator

The Computer Controlled Rising Film Evaporator, to study the operating processes of a rising film evaporator. It allows the follow-up and monitoring from the computer of all the variables for a complete study of the process according to the working conditions and to investigate the effects of the variation of parameters of the process such as: vacuum, temperature, flow, etc in the ascending film evaporation.

ATENG 10786 — Computer Controlled Rising Film Evaporator

(for main items)

• With this unit there are several options and possibilities:
• Main items: 1, 2, 3, 4, 5 and 6.
• Optional items: 7, 8, 9, 10 and 11.
• Let us describe first the main items (1 to 6):
• 1EPAC. Unit:
  Anodized aluminum frame and panels made of painted steel.
  The unit includes wheels to facilitate its mobility.
  Main metallic elements made of stainless steel.
  Diagram in the front panel with distribution of the elements similar to the real one.
• Evaporation double jacket column, with a heating surface of 0.122 m³, 30 mm of internal
• diameter, 60 mm of external diameter and 1300 mm of length.
  Membrane dosing pump, computer controlled, maximum flow 15 l/h, with flow control.
  Single effect vacuum pump, computer controlled, maximum flow 3 m³/h and maximum vacuum
  of 150 microns.
• Three tanks, capacity: 10 l (for feeding, concentrated and evaporated).
• Two graduated vessels for the storage of concentrated and evaporated product, capacity: 500 ml.
• Computer controlled heating element, range: 300 W. Included a safety temperature sensor with
  internal temperature controller.
  Automatic temperature control.
• Coil coolant with length of 400 mm.
  High safety pressure cut out for pressure control in the column.
  Ten temperature sensors, type “J”.
• Flow sensor, range: 0.2 – 6.5 l/min.
  Three force sensors, one in each of the three tanks (for feeding, concentrated and evaporated),
• Unit: ATENG 10786
  for measuring the amount of substance.
• Two pressure sensors, range: 0 – 2 bar.
  Solenoid valve, computer controlled.
• The complete unit includes as well:
  Advanced Real-Time SCADA and PID Control.
  Open Control + Multicontrol + Real-Time Control.
  Specialized Control Software based on LabVIEW.
  National Instruments Data Acquisition board (250 KS/s, kilo samples per second).
  Calibration exercises, which are included, teach the user how to calibrate a sensor and the
  importance of checking the accuracy of the sensors before taking measurements.
  Projector and/or electronic whiteboard compatibility allows the unit to be explained and
  demonstrated to an entire class at one time.
  Capable of doing applied research, real industrial simulation, training courses, etc.
  Remote operation and control by the user and remote control for technical support,
  are always included.
  Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).
  Designed and manufactured under several quality standards.
  Optional ICAI software to create, edit and carry out practical exercises, tests, exams,
  calculations, etc. Apart from monitoring user's knowledge and progress reached.
  This unit has been designed for future expansion and integration. A common expansion is
  the Scada-Net (ESN) System which enables multiple students to simultaneously
  operate many units in a network.
• Required elements (Not included):
• ATENG 12016. Steam Generator (3 kW).
