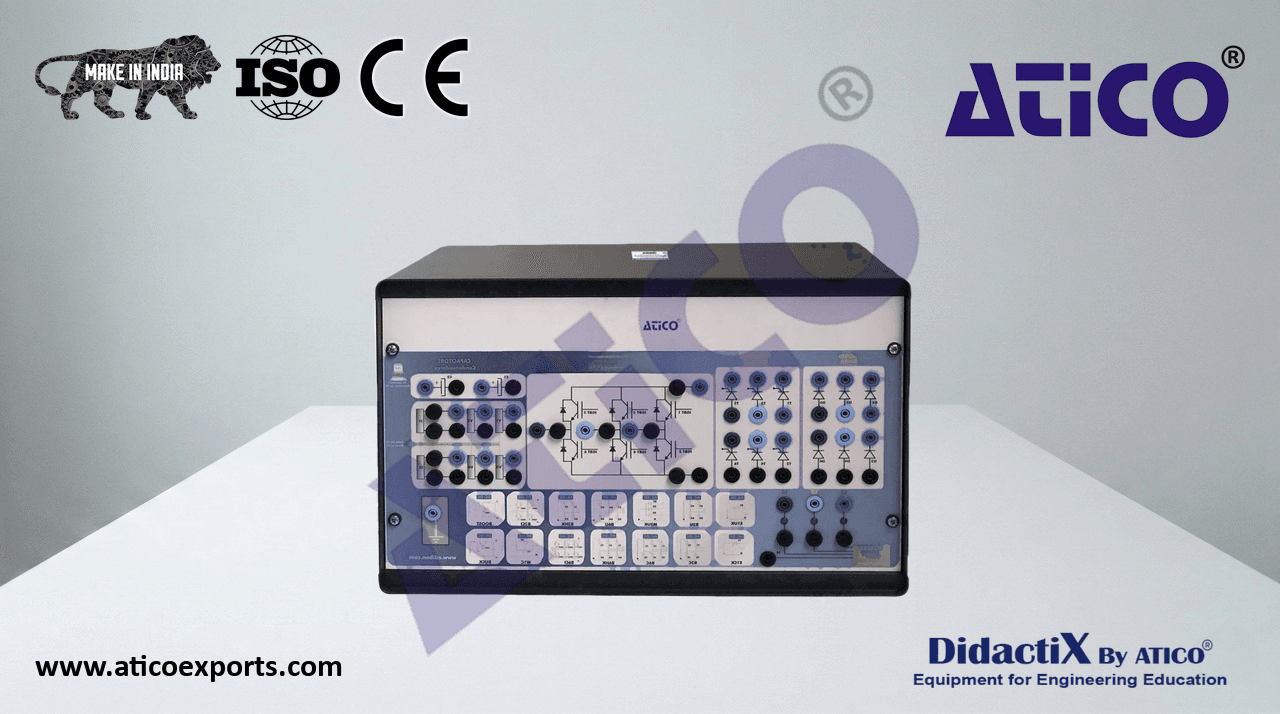

Computer Controlled Teaching Unit for the Study of Power Electronics (with IGBTS) Deluxe

The Computer Controlled Teaching Unit for the Study of Power Electronics (with IGBTS). (Converters: AC/AC+AC/DC+DC/DC+AC/ AC), is a unit with Computer Control and Data Acquisition System designed to study the basis of Power Electronics. It allows students to study AC/DC, DC/AC, DC/DC, AC/AC converters.

ATENG 12376 — Computer Controlled Teaching Unit for the Study of Power Electronics (with IGBTS)

(for main items)

• With this unit there are several options and possibilities:
• Main items: 1, 2, 3, 4 and 5.
• Optional items: 6, 7 and 8.
• Let us describe first the main items (1 to 5):
• 1TECNEL. Unit:
  Diagram in the front panel with similar distribution that the elements in the real unit.
  Steel box.
• Front panel:
• Diodes module: 6 diodes.
• Thyristors module: 6 thyristors.
• IGBTS Module: 6 IGBTS.
  Snubber net.
• Sensors module:
  Four voltage sensors.
  Two current sensors.
  Power supply connections for Vr, Vs, Vt, Neutral and Ground.
  Practices schemes.
• Back panel:
  Data acquisition board connector (SCSI connector).
  Tachodynamo connector.
  Main fuses (Vr, Vs, Vt) and LEDs.
  Circuit breaker (main switch).
  Single-phase driver.
• Three-phase driver. Unit: ATENG 12376
  IGBT driver.
  TSI board.
  PIC board.
  SKHI61 board.
  Four relays board.
  Two three-phase relays.
  Commuted power supply.
  Three-phase magnetothermal.
  Control Interface.
• The complete unit includes as well:
  Advanced Real-Time SCADA.
  Open Control + Multicontrol + Real-Time Control.
  Specialized Control Software based on LabVIEW.
  National Instruments Data Acquisition board (250 KS/s, kilo samples per second).
  Calibration exercises, which are included, teach the user how to calibrate a sensor and the
  importance of checking the accuracy of the sensors before taking measurements.
  Projector and/or electronic whiteboard compatibility allows the unit to be explained and
  demonstrated to an entire class at one time.
  Capable of doing applied research, real industrial simulation, training courses, etc.
  Remote operation and control by the user and remote control for technical support,
  are always included.
  Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).
  Designed and manufactured under several quality standards.
  Optional ICAI software to create, edit and carry out practical exercises, tests, exams,
  calculations, etc. Apart from monitoring user's knowledge and progress reached.
  This unit has been designed for future expansion and integration. A common expansion is
  the Scada-Net (ESN) System which enables multiple students to simultaneously
  operate many units in a network.
• Required elements (at least one) (with RCL3R more practice) (Not included):
• RCL3R. Resistive, Inductive and Capacitive Loads Group.
• N-REVT/1K. 1kW Three-Phase Variable Resistors Module.
