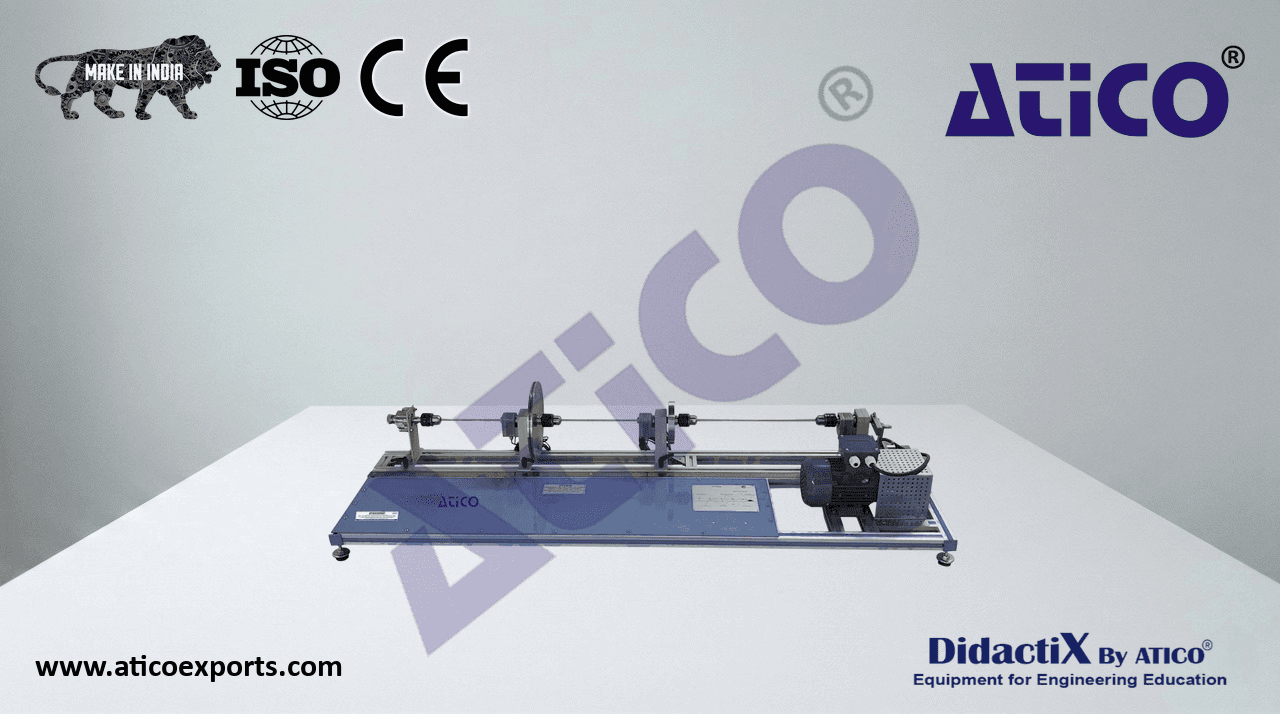

Computer Controlled Torsional Vibration Unit Deluxe

The Computer Controlled Torsional Vibration Unit, to study torsion suffered by some shafts with rotation motion, apart from studying the torsional rigidity and the behavior of a torsional vibration system with one, two or three discs of inertia.

ATENG 12115 — Computer Controlled Torsional Vibration Unit

(for main items)

• With this unit there are several options and possibilities:
• Main items: 1, 2, 3, 4, 5 and 6.
• Optional items: 7, 8 and 9.
• Let us describe first the main items (1 to 6):
• 1 ATENG 12115. Unit:
  Bench-top unit with adjustable legs.
  Anodized aluminum frame and panels made of painted steel.
  Main metallic elements made of stainless steel.
  Diagram in the front panel with distribution of the elements similar to the real one.
• The “ATENG 12115” unit mainly consists of:
• Computer controlled three-phase motor of 0.5 kW.
• Torsion bar:
• Diameter: 6 mm.
• Length: 1400 mm.
• Polar moment of inertia: Ip = 1.27·10-10 m4.
  Angle of rotation selector, with possibility of selecting
  among three different angles.
  Clamping mandrels, used to clamp the bar under
  study to the torsional system.
• Unit: ATENG 12115
  Fastening pillars with bearings.
• Three discs of inertia:
• Disc 1 (2 units): diameter of 150 mm and mass of 2.6 kg. Moment of inertia I = 0.00731 kg·m².
• Disc 2: diameter of 240 mm and mass of 4.9 kg. Moment of inertia I = 0.06679 kg·m².
  Adjustable rotating damper with six positions.
• Four angle of rotation sensors, resolution: 0.067 V/degree, effective measuring range of ± 45 °.
• Graduated rule of 1300 mm.
• The complete unit includes as well:
  Advanced Real-Time SCADA.
  Open Control + Multicontrol + Real-Time Control.
  Specialized Control Software based on LabVIEW.
  National Instruments Data Acquisition board (250 KS/s, kilo samples per second).
  Calibration exercises, which are included, teach the user how to calibrate a sensor and the
  importance of checking the accuracy of the sensors before taking measurements.
  Projector and/or electronic whiteboard compatibility allows the unit to be explained and
  demonstrated to an entire class at one time.
  Capable of doing applied research, real industrial simulation, training courses, etc.
  Remote operation and control by the user and remote control for technical support,
  are always included.
  Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).
  Designed and manufactured under several quality standards.
  Optional ICAI software to create, edit and carry out practical exercises, tests, exams,
  calculations, etc. Apart from monitoring user's knowledge and progress reached.
  This unit has been designed for future expansion and integration. A common expansion is
  the Scada-Net (ESN) System which enables multiple students to simultaneously
  operate many units in a network.
