Concrete Pipe Testing Machines are designed to perform peak load tests on :
- Sewer pipes
- Drainage pipes
- Concrete pipes
- Pipe fittings
- Cones
The system enables testing of pipes with large diameters and lengths under controlled and uniform loading conditions.
CAPACITY OPTIONS :
1000 kN Model
600 kN Model
Custom capacities and dimensional configurations are available upon request.
LOAD FRAME :
- Rigid two-column structure
- High axial and lateral stiffness
- Precision alignment for accurate testing
- Double-acting actuator integrated into upper beam
- Actuator stroke: 300 mm
- Anti-rotation mechanism to prevent actuator twisting
- Load cell for accurate load measurement and closed-loop control
Bearers :
- Rectangular top bearer (detachable)
- Bottom bearer V-shaped with 150° angle
- Vertical movement allowance: °8° during pipe loading
Crosshead Adjustment :
- Electric motor driven height adjustment
- Locking pins for secure positioning
Installation Options :

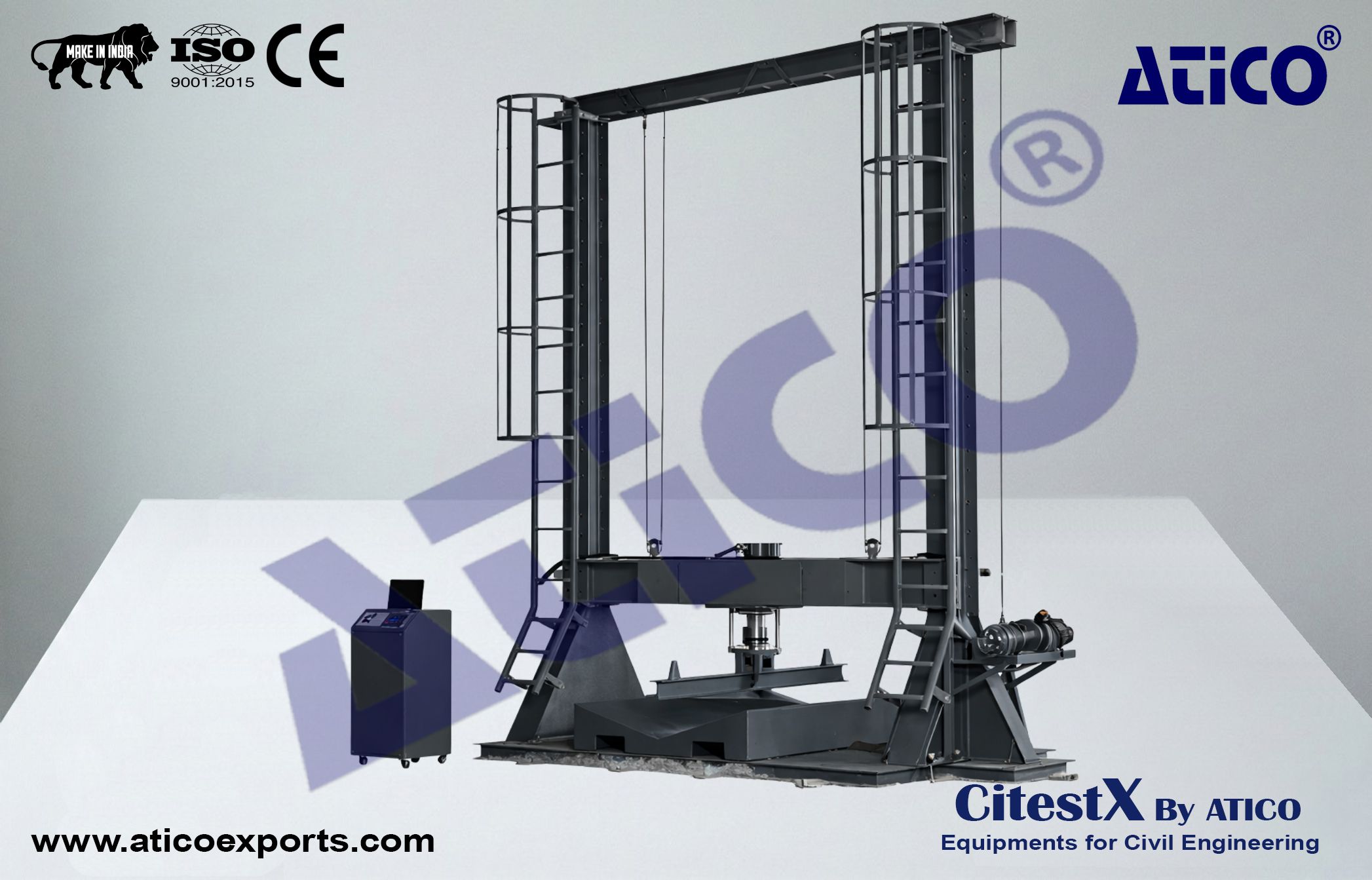

- Frame anchored directly to concrete base (without chassis)
- Frame supplied with metal carrying chassis
Hydraulic Power Pack :
- Automatic, dual-stage system
- Controlled via digital readout unit
- Loading range: 1 – 20 kN/sec (°5% accuracy)
- Rapid approach pump included
- Safety valve to prevent overloading
- Maximum working pressure: 410 bar
Dual-Stage Pump :
- Low-pressure gear pump for rapid approach
- High-pressure radial piston pump for test execution
Digital Data Acquisition & Control System :
- LCD display with function keys
- User-friendly menu interface
- Real-time monitoring of:
- Load values
- Loading rate
- Test duration
- Live Load vs. Time graphical display
Software :
- Supplied free with the machine
- Computer-controlled test execution (Start/Stop)
- Data acquisition and compression test management
- Load-time graphs and automated reporting
- Storage and retrieval of previous test data
Entry fields for :
- Client information
- Specimen details
- Test parameters
- Multi-language support: English & Turkish
Safety Features :
- Maximum pressure safety valve
- Piston travel limit switch
- Emergency stop button
- Software-controlled maximum load protection
