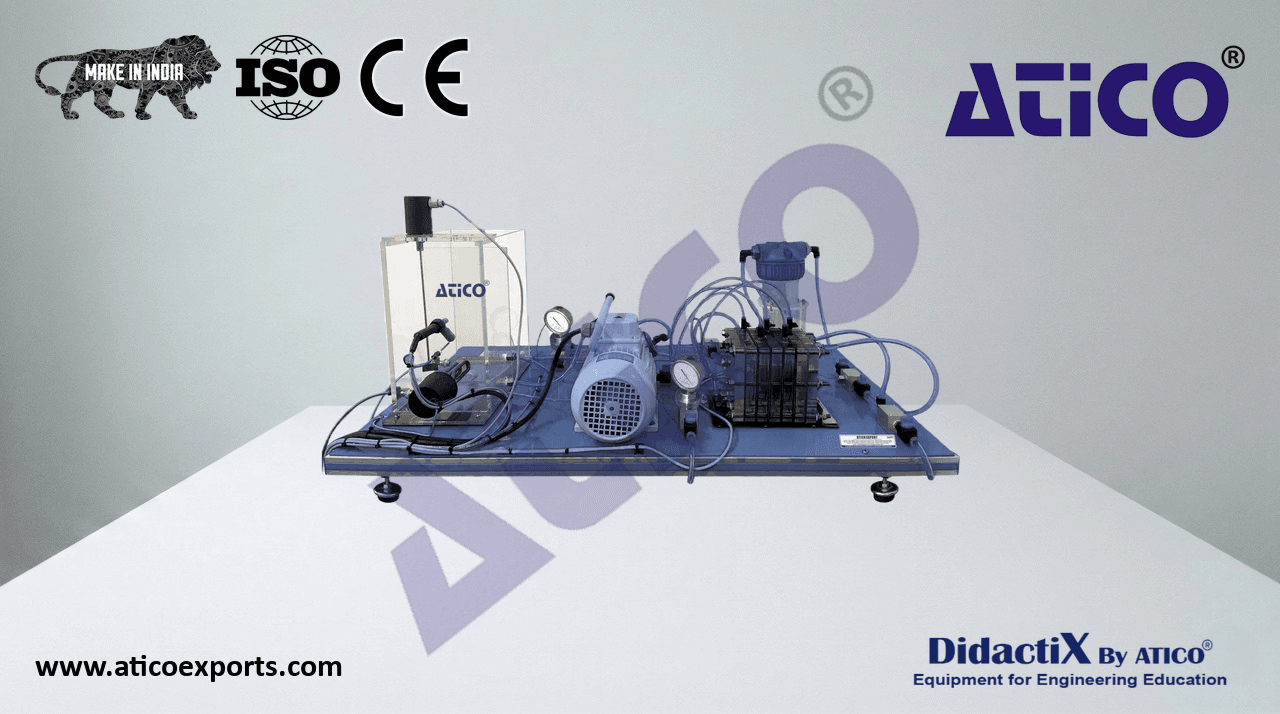

ATENG 10870 — Continuous and Batch Filtration Unit
Bench-top unit.
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
This filtration unit demonstrates the principles of continuous and batch filtration.
- Double tank made of methacrylate, capacity: 9 l.
Level switch in the tank.
Stirrer.
- Centrifugal pump regulated by a potentiometer max. 4 bar.
- Heating element, power: 500 W. ATENG 10870 detail
Vertical plates filter, composed of four nylon plates of 5 microns diameter, allowing us to filter the CaCO suspension of known concentration.
Cartridge filter will filter and “clean” a water sample with small pieces of paper.
Two temperature sensors, “J” type.
- Two pressure gauges (manometers), range: 0 – 4 bar.
- Flow sensor, range: 0.1 – 25 l/min.
- Safety pressure switch, range: 0 – 7.5.
Water and calcium carbonate are the recommended working materials for reasons of safety and ease to use.
- Electronic console:
Metallic box.
Main switch.
Connections for the temperature sensors. Selector for the temperature sensors. Digital display for the temperature sensors.
Connection for the flow sensor. Digital display for the flow sensor.
Heating element switch. Heating element controller.
Pump switch. Pump regulator.
Stirrer switch.
Level switch connection.
Pressure switch connection.
Cables and Accessories, for normal operation.
