Continuous rectification

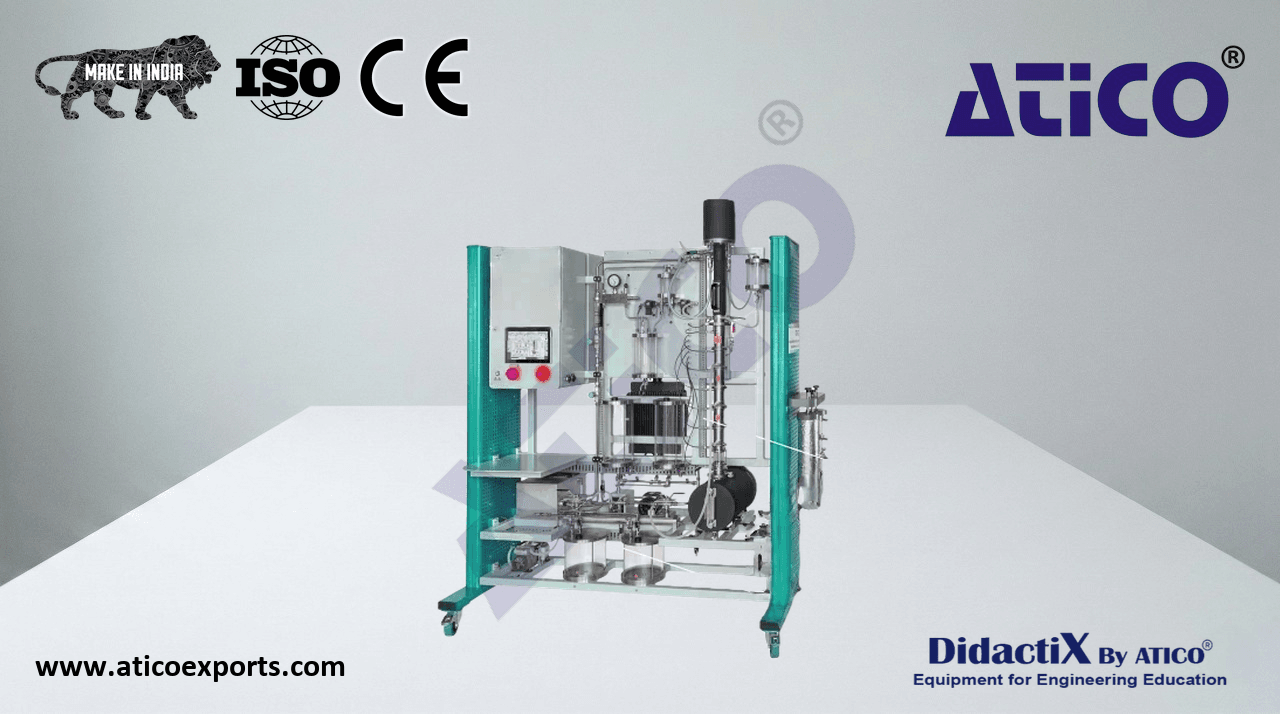

Rectification is a standard industrial separation method, such as for crude oil fractionation. This trainer provides an energy-efficient multi-stage distillation process with interchangeable column types.

• continuous and discontinuous rectification
• plant control with PLC via touch screen
• integrated router for operation and control via an end device and for screen mirroring: mirroring of the user interface on up to 5 end devices
• packed, sieve tray and bubble cap tray column, interchangeable
• sieve tray and bubble cap tray column with 8 trays
• packed column with Raschig rings
• 3 feed inlets and 8 temperature sensors per column
• electrically heated evaporator
• condenser and phase separation tank for top product
• adjustment of reflux ratio using valves
• heat exchanger for feed preheating by bottom product or bottom product cooling by cooling water
• water-saving due to closed cooling water circuit with water/air cooler
• vacuum mode possible with diaphragm pump
• areometer for determining the composition of feed/products included
• data acquisition via PLC on internal memory, access to stored measured values via WLAN/LAN with integrated router/LAN connection to customer–s own network or direct LAN connection without customer network
