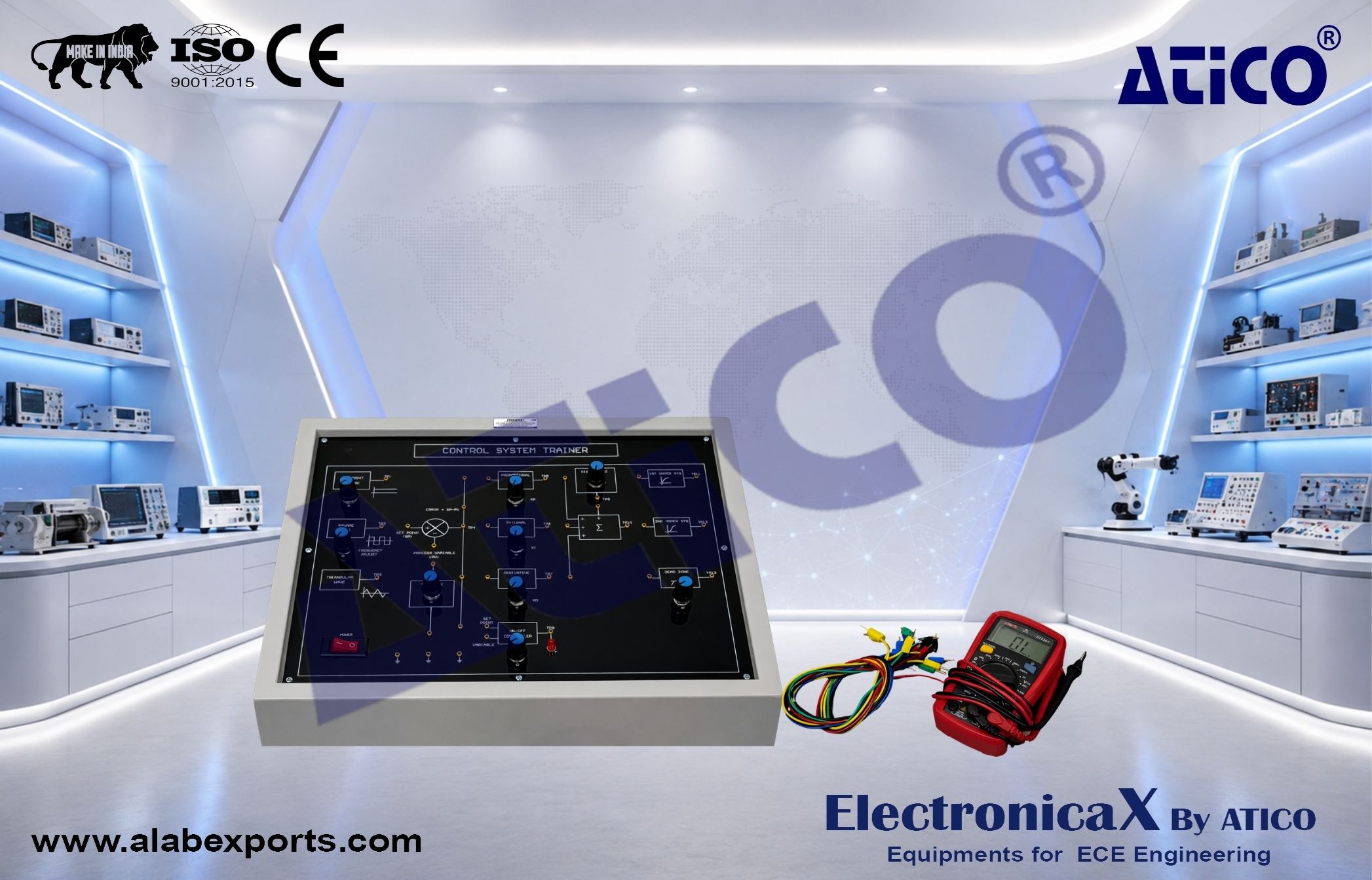

Control System Trainers

In control system engineering there are different types of system controller. Study of two-position mode as ON/OFF controller and continuous controller modes as PID controller is a very important part of control engineering. To have a basic idea and practical hands-on controllers this PID Trainer has been designed to be used by students to investigate the fundamental principles of PID by applying different signals to it.
With Control System Trainer module students can study two position mode as ON/OFF controller and continuous controller modes as P-control mode, I-control mode, D-control mode, PI-control mode, PD-control mode and PID-control mode.
These modes of controller can be performed individually and also with different combinations in open loop and close loop system.
With this trainer user can easily understand the difference between the different modes of controllers used. Square wave, triangular wave generator and variable DC supply as set point is given on board and disturbance generator is provided. Effect of PID can be seen on first order system and second order system in open loop and close loop system, which is given on the board.

• Proportional, Integral and Derivative functions can be checked on the board
• Configuration in P, I, D, PI, PD, PID
• ON/OFF Controller System
• Function Generator: Square wave, triangular wave and Sine wave with variable frequency
• Power supply module: Fixed and Variable DC supply
• 3° Digital Voltmeter for DC measurement
• Test point at varies circuit block to measured and observe the signals
• Instruction and Experiment Manual: Describing each circuit function with detailed experiment procedure

Proportional Band :

• 5% to 55%

Integrator :

• 10 msec to
• 110 msec

Derivative :

• 1 msec to 11 msec

ON/OFF controller system :

• ON = 12 V, OFF = -12 V

Interconnections :

• 2 mm test socket

Power Supply :

• 240VAC °10%, 50Hz

Accessories :

• 2mm Test Lead Sets (5 Colors Coded 5 x 2 = 10 units)
• 4 ° Digits Digital Multimeter
• 240VAC UK Type Power Cord
