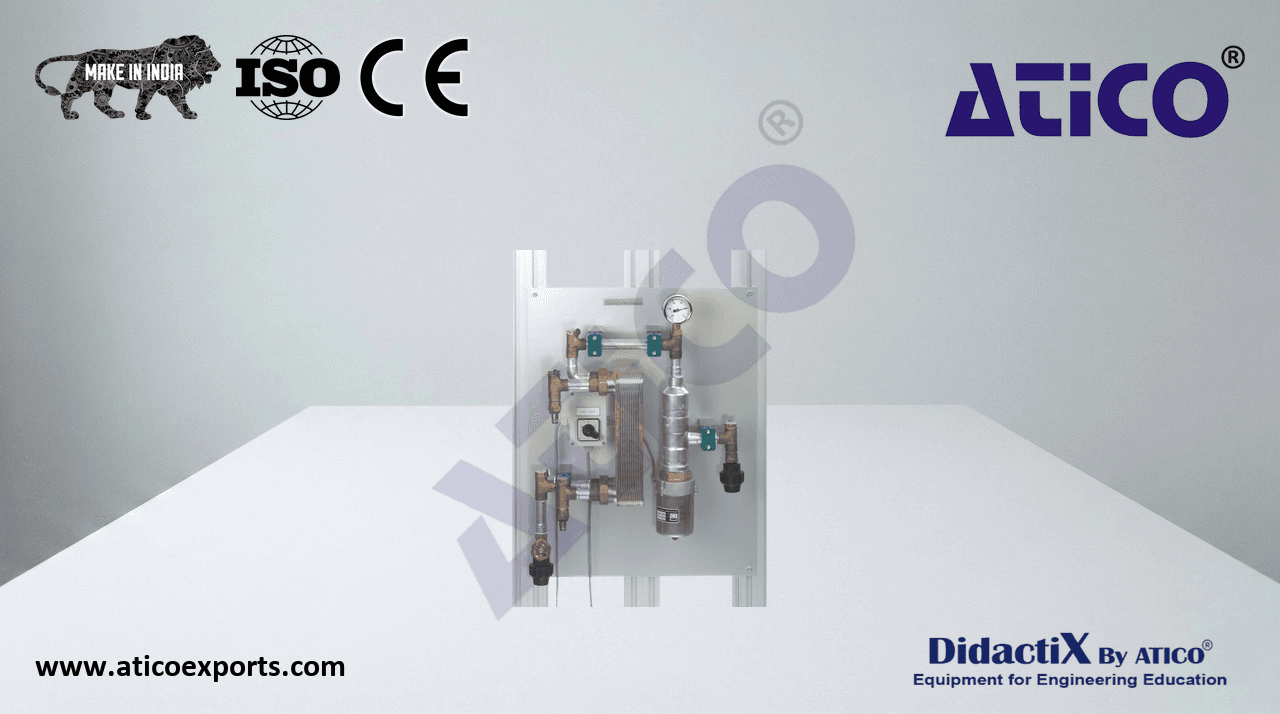

Controlled system module: temperature

The RT 450. 04 controlled system module is a panel-mounted ready-to-install element. In conjunction with other modular control components, it enables temperature control systems with different characteristic features to be constructed and investigated. Learn about Controlled system module: temperature exporters for optimal educational outcomes..

• construction of a temperature control loop (in conjunction with other modules of the RT 450 series)
• ready-to-install compact panel assembly
• electric heater with thermostat and dry-running protection
• direct temperature display at heater outlet with bimetallic thermometer
• heater is either an actuator or a continuous heater
• plate heat exchanger, operating in counter-flow or parallel-current mode
• primary circuit with heater and heat exchanger, connected to water supply of base module RT 450
• flow of primary circuit controlled by hand-operated valve
• secondary circuit of heat exchanger connected to laboratory water supply
