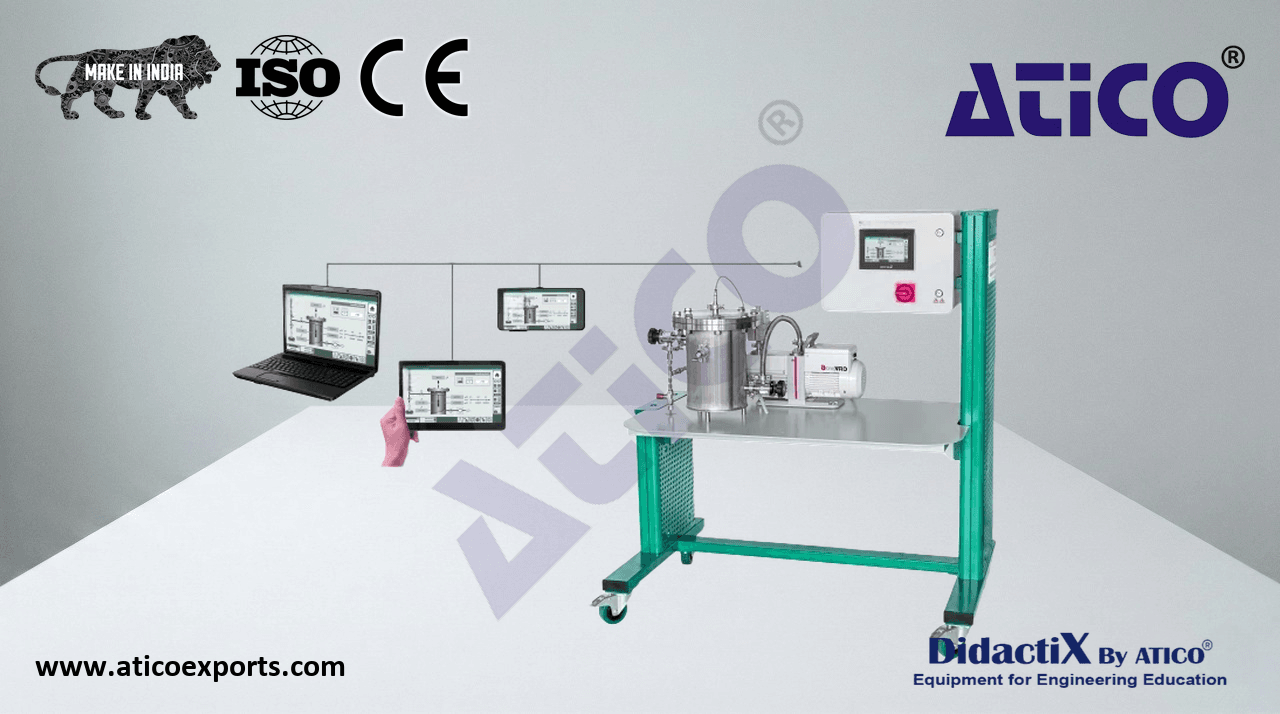

Convection and radiation Deluxe

Under real conditions, heat transport involves both substance-bound (convection/conduction) and non-substance-bound (radiation) forms. This unit differentiates these quantities using a heated cylinder in a vacuum vessel.

• heat transfer analysis by convection and radiation
• experiments in vacuum or positive gauge pressure (up to 1,5bar)
• temperature-controlled heating element in pressure vessel
• vacuum generation with rotary vane pump
• Pirani and piezo-resistive pressure sensors
• data acquisition via PLC with screen mirroring capability
