Converting Mechanical Energy into Heat Energy Recording and Evaluating with Software

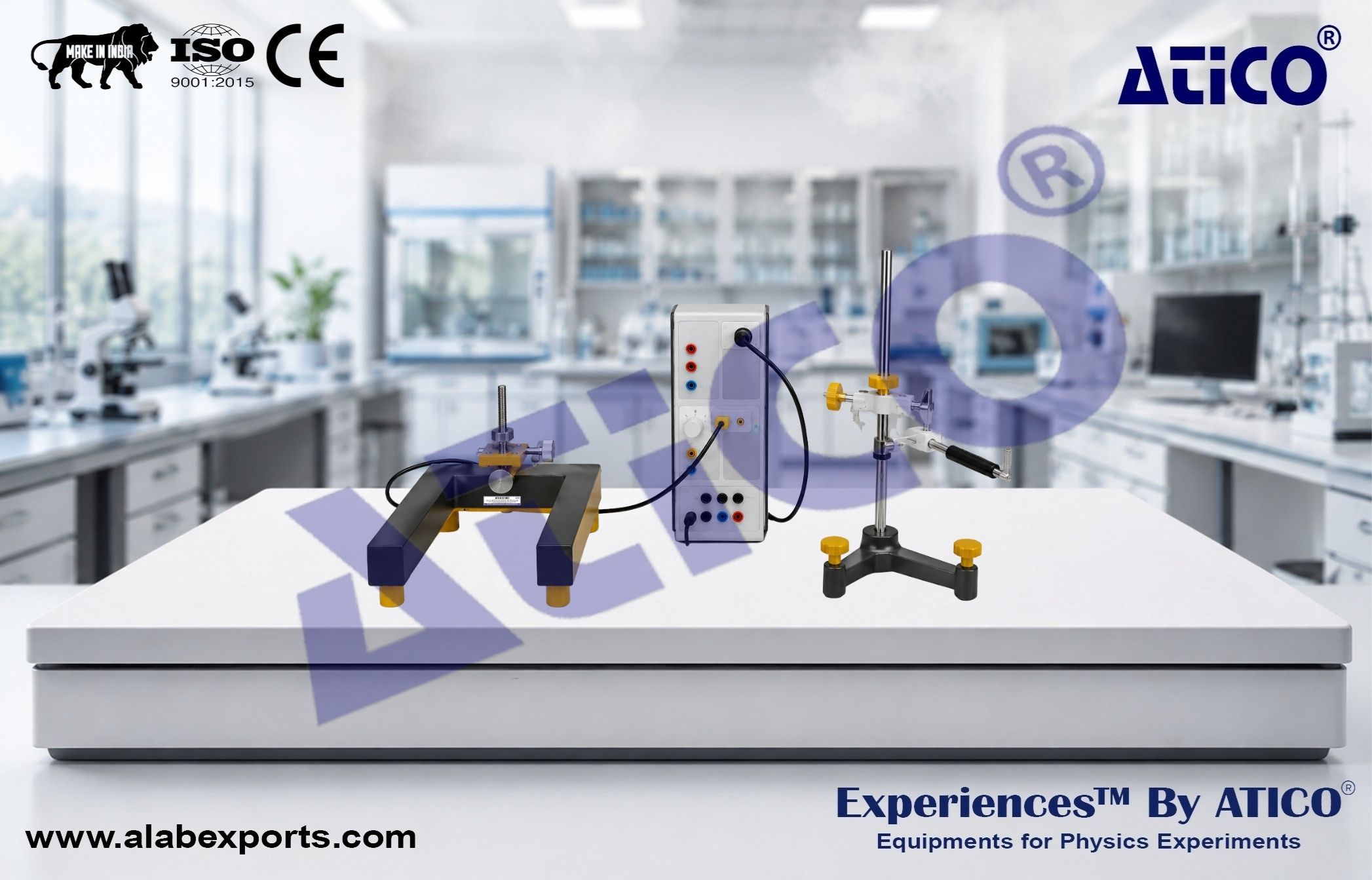

The Mechanical Equivalent of Heat Apparatus is designed to demonstrate the equivalence of mechanical work and heat energy. The experiment converts mechanical energy into heat through friction by rotating different calorimeter vessels using a hand crank. The resulting temperature rise is measured to verify the relationship between mechanical work and thermal energy, demonstrating the principle of energy conservation. Software-based data acquisition enables automatic measurement and analysis in addition to manual experimentation. Manufactured by Atico Export India.

Principle

The experiment is based on the conversion of mechanical work into heat through friction. A hand crank rotates a calorimeter while a nylon belt applies frictional resistance using a suspended weight. The mechanical work performed is transformed into heat, causing an increase in the calorimeter temperature. By comparing the mechanical work with the heat produced, the mechanical equivalent of heat can be experimentally verified.

Objectives

• Demonstrate the equivalence of mechanical work and heat energy.
• Verify the principle of conservation of energy.
• Measure the temperature rise due to frictional heating.
• Determine the relationship between mechanical work and thermal energy.
• Compare manual and software-based experimental measurements.

System Components

Basic Apparatus :

• Quantity: 1

Water Calorimeter :

• Quantity: 1

Copper Block Calorimeter :

• Quantity: 1

Aluminium Block Calorimeter :

• Quantity: 1

Large Aluminium Block Calorimeter :

• Quantity: 1

Weight :

• 5 kg
• Quantity: 1

Data Acquisition Interface :

• Quantity: 1

Data Analysis Software :

• Quantity: 1

Type K Temperature Probe :

• Diameter: 1.5 mm
• Quantity: 1

Light Barrier :

• Quantity: 1

Stand Rod :

• 10 × 223 mm
• Quantity: 1

V-Shaped Stand Base :

• Quantity: 1

Multi Clamp :

• Quantity: 1

Jaw Clamp :

• Quantity: 1

Stand Rod :

• Length: 10 cm
• Diameter: 12 mm
• Quantity: 1

Stand Rod :

• Length: 25 cm
• Diameter: 12 mm
• Quantity: 1

Bench Clamp :

• Quantity: 1

Mechanical Energy Conversion :

• Demonstrates the conversion of mechanical work into heat through friction.

Multiple Calorimeters :

• Includes water, copper, and aluminum calorimeters for comparative studies.

Manual and Software-Based Measurement :

• Supports both manual data collection and software-assisted analysis.

Accurate Temperature Measurement :

• High-precision Type K temperature probe ensures reliable temperature readings.

Automatic Data Acquisition :

• Software-based measurement system enables real-time data recording and analysis.

Educational Design :

• Ideal for demonstrating energy conversion and thermodynamic principles.
