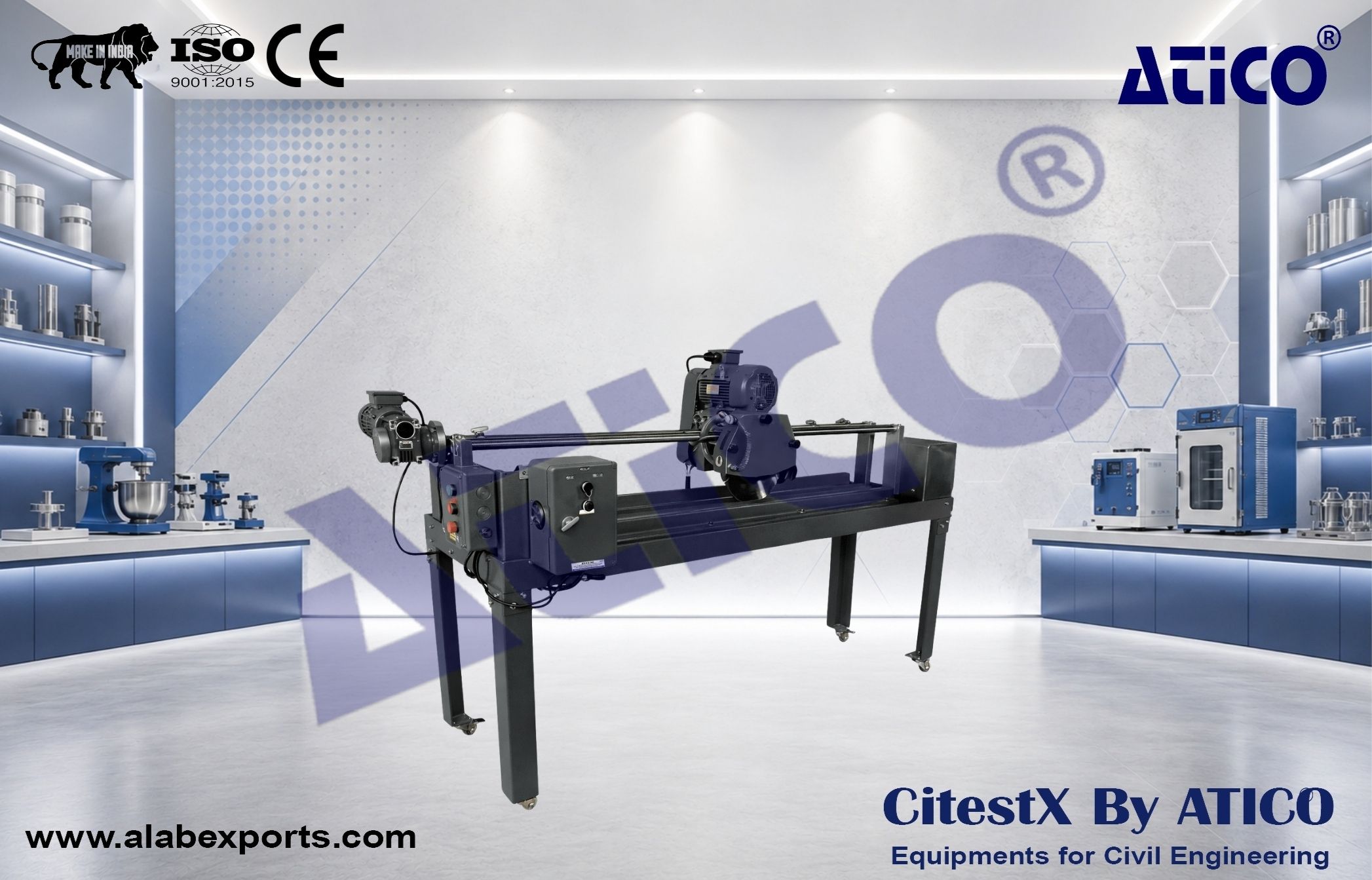

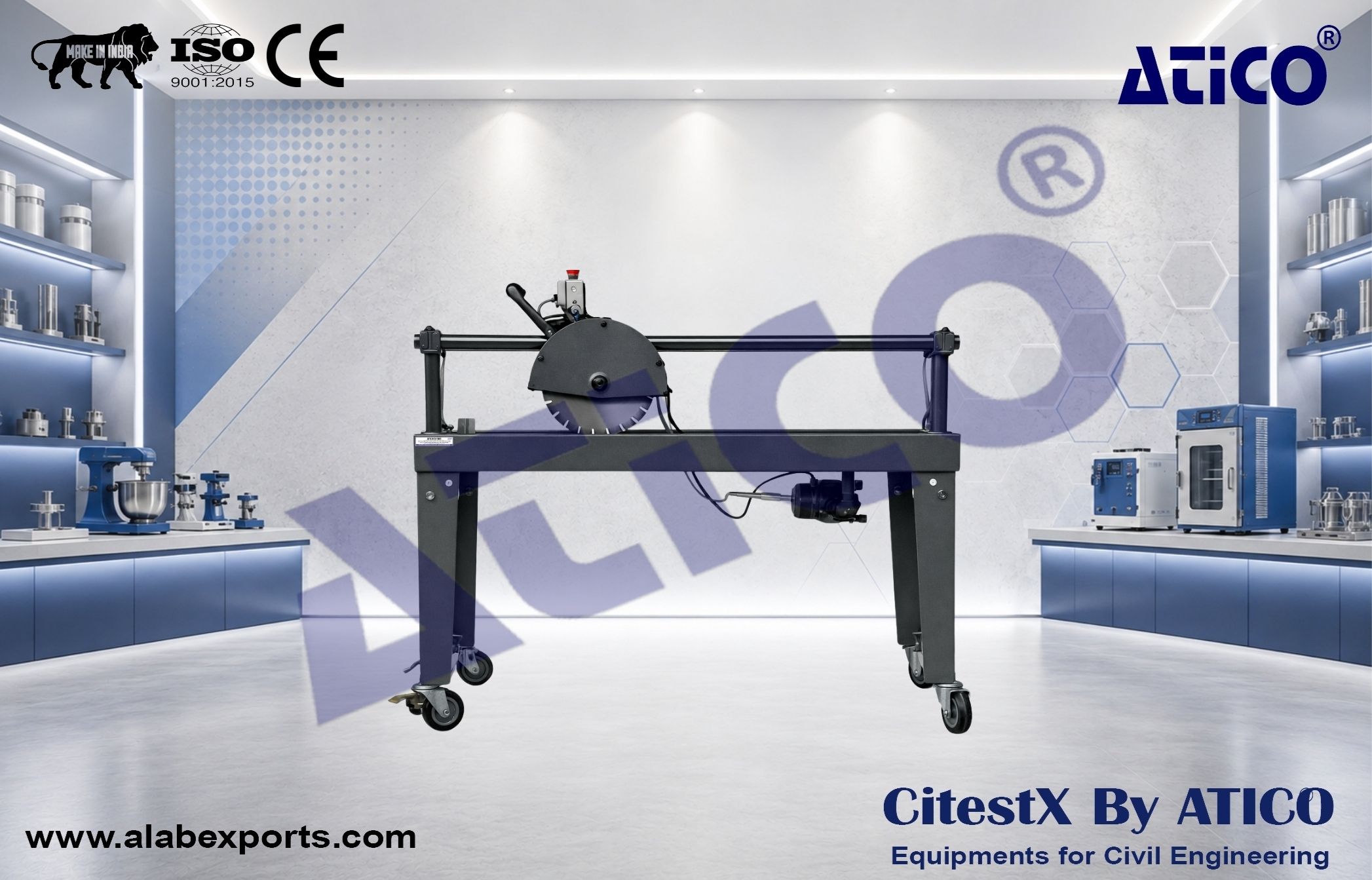

Core Cutting Machine

Core Cutting Machine is mainly used to cut rock, concrete and core specimens of various sizes and to obtain two half cylinders from core specimen.

Construction :

• Mode of 5 mm sheet metal.
• The Core Cutting Machine has 4 foots with a height of 40 cm.
• It is painted with electrostatic dye to resistant the scratches.

Cutting Capacity :

• Cutting capacity up to °110 mm and 1200 mm length.

Movement System :

• Movement is given by means of a gear motor to Core Cutting motor.
• The forward and backward speeds of the movement which has given by the gear motor can be adjusted separately.
• The forward and backward distances can be adjusted.
• The motion motor which moves the Core Cutting motor by means of forward and backward reduces.

Cooling System :

• The Core Cutting Machine has a water cooling system which prevents the heating of the cutting disc.
• It has a long-lasting electric pump with cooler.
• It can circulate its own water thanks to the water tank and water pump to be installed on the Concrete Cutting Machine.

Motor :

• The Core Cutting motor has an IP 55 protection class, with a power of 5.5 kW and a rotation speed of 4000 rpm.

Reducer System :

• In the reducer which is used to reduce the motor output cycle by means of gears by passing through certain steps, ratio the input/output cycle is 7.5.

Cutting System :

• The Core Cutting Machine do not make cutting head oscillating movement.
• There is shield apparatus to prevent scattering of particles.

Specimen Holding System :

• There is a V bedding system for the purpose of obtain a half cylinder that up to 1200 mm to cut the core.
• The V bedding system has a specimen rest support and precautions have been taken to prevent the specimen from slipping during cutting of the specimen.

Protection System :

• Thermic magnetic switch for motor protection is available.

Electrical System :

• The Concrete Cutting Machine is equipped with Quintr three-phase industrial type male plugs with grounded and 3 phase, neutral, earth connection.

Accessories :

• The Concrete Cutting Machine is supplied with the wrench and equipment for removing and installing the Core Cutting Blade.

Dimensions (cm) :

• 170x60x130

Power Supply :

• 380 V, 50-60 Hz, 3 ph
