Coupling Mechanism Deluxe

The Coupling Mechanism, to study an Oldham coupling and its operation when the input and output shafts are laterally displaced.

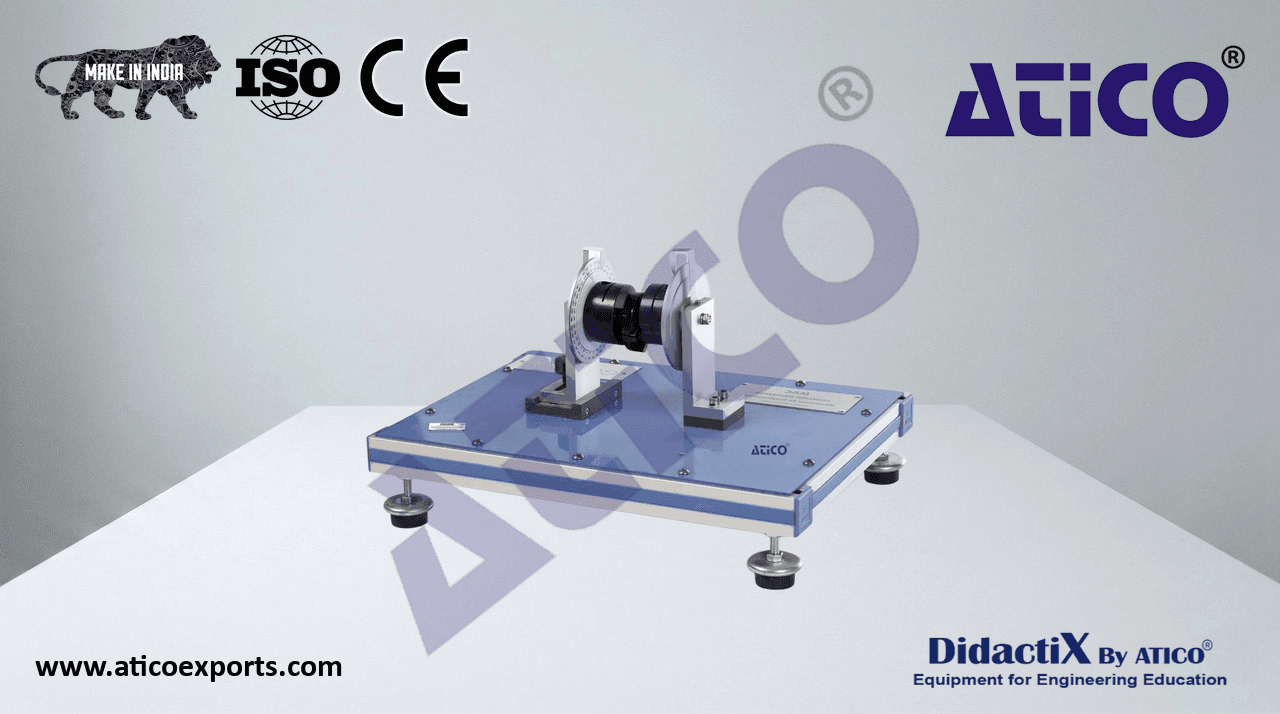

ATENG 12067 — Coupling Mechanism

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

• The “ATENG 12067” unit mainly consists of:
  Two outer discs made of aluminum.
  Central disc made of acetal, located between both outer discs. It acts as the torque
  transmitting element.
  Both outer discs are mounted in two rotary elements with an indicator and graduated
  ATENG 12067 detail
  disc to read the angle.
