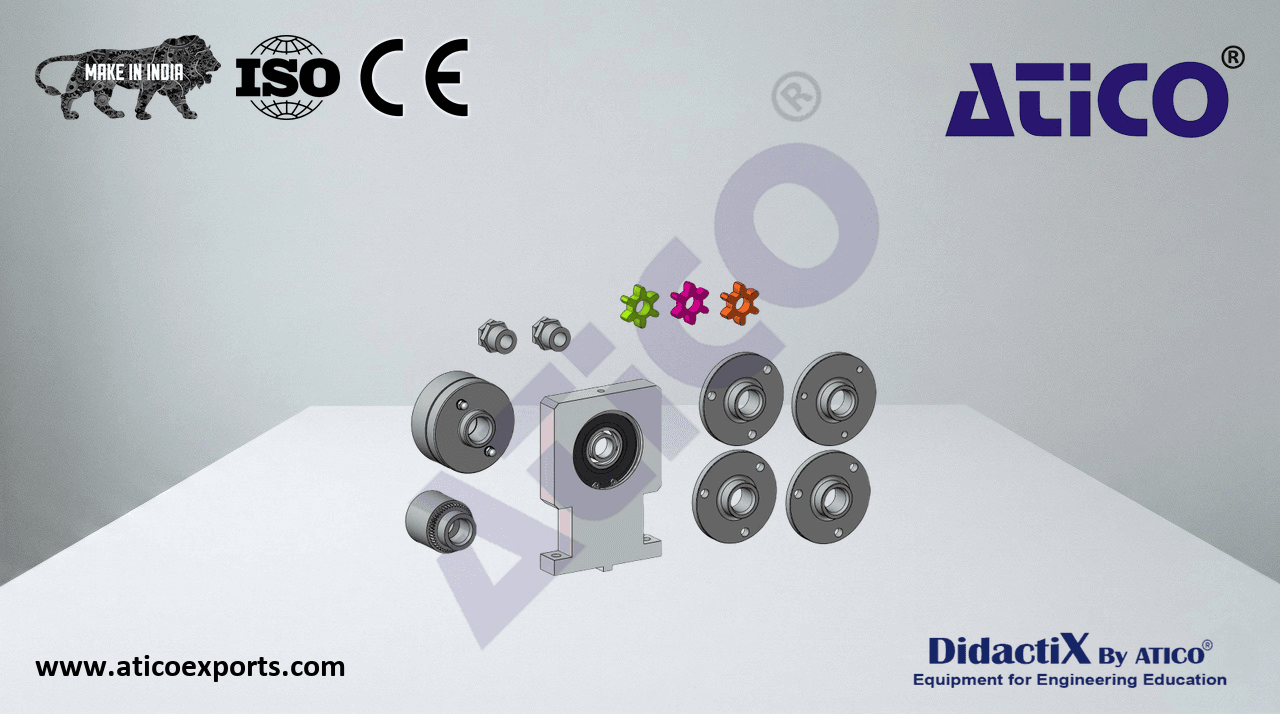

Couplings kit

Rotating machine elements are interconnected by way of couplings. A coupling exhibiting production or assembly faults generates machine vibrations which can be analysed to give an indication of specific faults or damage.

• investigation of the vibration behaviour of various coupling types with and without faults
• experiment carried out in conjunction with the training system and measurement and evaluation tools
• curved teeth coupling
• three different coupling stars for the elastic claw coupling of the base unit
• flange coupling with no fault
• flange coupling with radial run-out
• flange coupling with axial run-out
• pin coupling with and without pitch fault
• experimental setup can be used with brake and load unit
• stackable storage system to house the components
